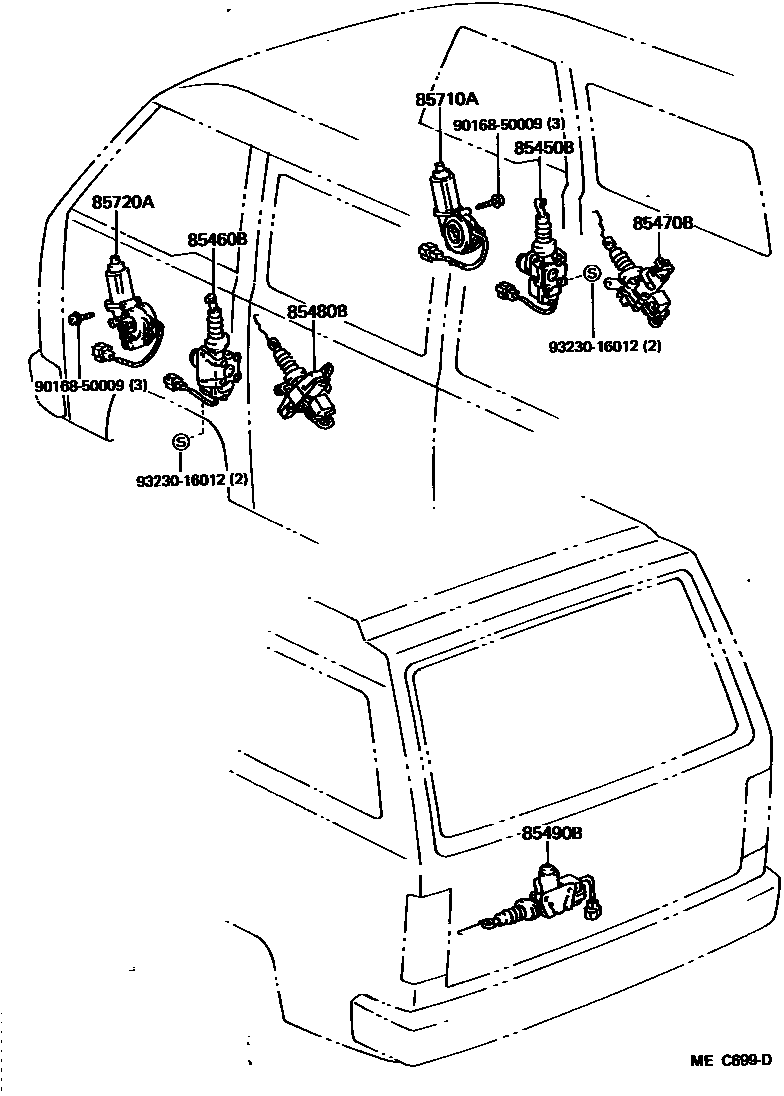

Toyota HIACE VAN,WAGON — DOOR MOTOR & DOOR SOLENOID
85450BMOTOR ASSY, DOOR CONTROL, FRONT RH
85460BMOTOR ASSY, DOOR CONTROL, FRONT LH
main85460-95J00iLH5#,6#,YH50,51,61..GL..(05S,09S); LH51,6#,YH51,57..SCL,SCM,SGL; LH71..10S198708-198908
85470BMOTOR ASSY, DOOR CONTROL, REAR RH
85480BMOTOR ASSY, DOOR CONTROL, REAR LH
main85480-95J00iLH5#,6#,YH50,51,61..GL..(05S,09S); LH51,6#,YH51,57..SCL,SCM,SGL; LH71..10S198708-198908
85490BMOTOR ASSY, BACK DOOR CONTROL
main85490-95J00iLH5#,6#,YH50,51,61..GL..(05S,09S); LH51,6#,YH51,57..SCL,SCM,SGL; LH71..10S198708-198908
85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
9016850009
main90168-50009
9323016012
main93230-16012
9 parts on this diagram · 1 diagram in section
DOOR MOTOR & DOOR SOLENOID for Toyota HIACE VAN,WAGON
This section contains 9 genuine Toyota parts for the DOOR MOTOR & DOOR SOLENOID system of the Toyota HIACE VAN,WAGON. Key components include: MOTOR ASSY, DOOR CONTROL, FRONT RH, MOTOR ASSY, DOOR CONTROL, FRONT LH, MOTOR ASSY, DOOR CONTROL, REAR RH, MOTOR ASSY, DOOR CONTROL, REAR LH, MOTOR ASSY, BACK DOOR CONTROL.
