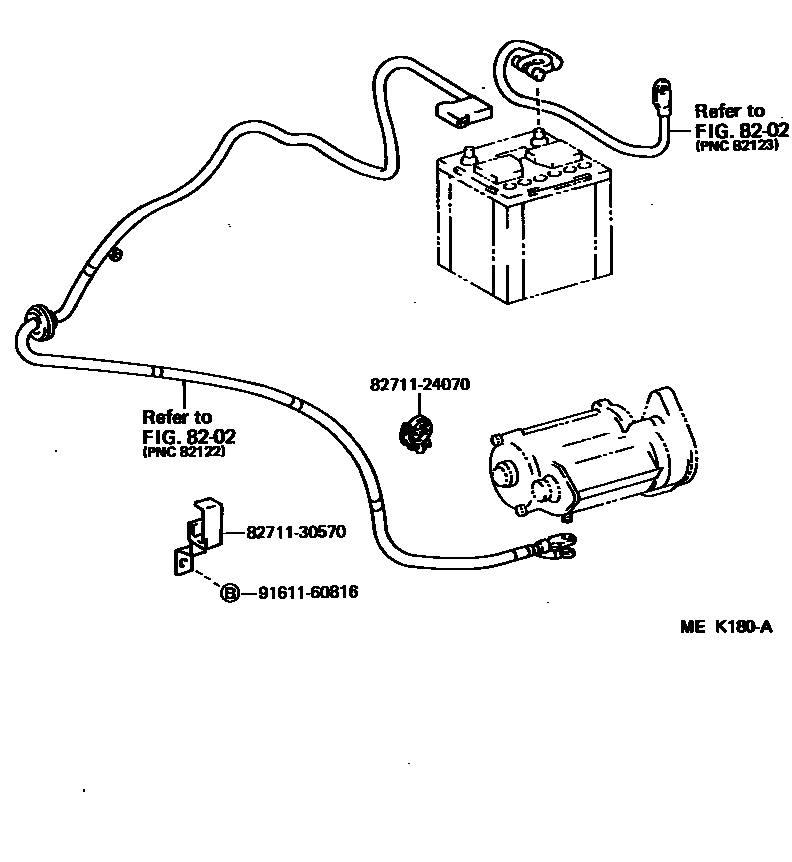

Toyota HIACE VAN,WAGON — BATTERY & BATTERY CABLE

8202WIRING & CLAMP

→ Go to FIG 82-02

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8271130570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30570

9161160816

main91611-60816

4 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota HIACE VAN,WAGON

This section contains 4 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota HIACE VAN,WAGON. Key components include: WIRING & CLAMP, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
