Toyota HIACE VAN,COMMUTER — PARTIAL ENGINE ASSEMBLY

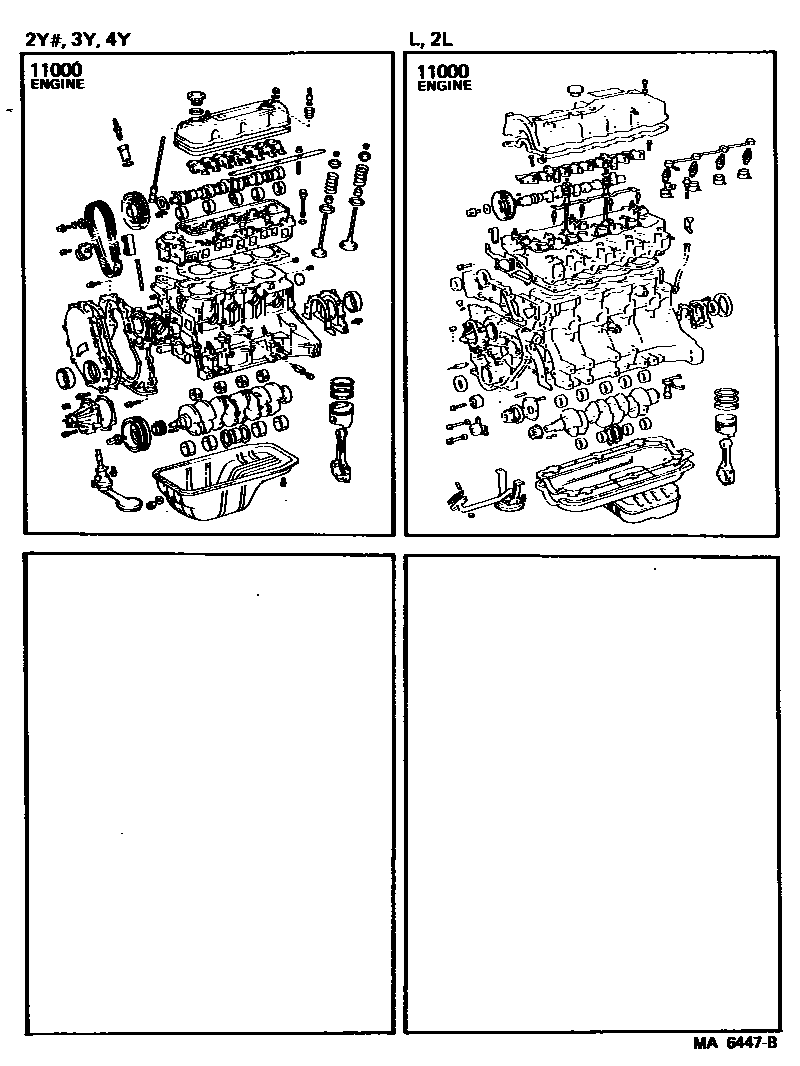

11000ENGINE ASSY, PARTIAL

main19000-54210iL..LH50,60,70..ARL,GEN198212-198308

main19000-54220iL..LH50,60..EUR198212-198308

main19000-54310iL..LH50,60,70198308-198401

sub19000-54311

main19000-54371i2L..LH51,61,71..ARL,GEN198508-198708

sub19000-54372

main19000-54420i2L..LH51,61,71198401-198407

main19000-54421i2L..LH51,61,71198407-198508

sub19000-54422

main19000-54580i2L..LH51,61..EUR198508-198708

sub19000-54581

main19000-54630i2L..LH56,66198608-198708

sub19000-54631

main19000-72070i2Y..YH50,60..LHD..GEN198401-198403

*SAA

sub15301-71020

sub23811-71011

sub23841-71011

main19000-72071i2Y..YH50..RHD..GEN198408-198502

SINGAPORE SPEC

sub87208-28021

main19000-72072i2Y..YH50..RHD..GEN198502-198508

SINGAPORE SPEC

main19000-72080i2YC..YH50198212-198401

sub19000-72081

sub87208-28021

main19000-72090i2Y..YH50,60..GEN,SA198212-198403

sub15301-71020

sub23811-71011

sub23841-71011

main19000-72091i2Y..YH50,60..GEN,SA198403-198502

sub87208-28021

main19000-72092i2Y..YH50,60..GEN,SA198502-198508

main19000-72240i2Y..YH50,60..GEN198508-198608

main19000-72250i2Y..YH50..N1198508-198608

main19000-73040i3Y..YH51,61,71198212-198401

sub15301-71020

sub23811-71011

sub23841-71011

main19000-73041i3Y..YH51..MTM;3Y..YH51..4HC..SA;3Y..YH61,71..ARL,GEN,SA198403-198502

sub87208-28021

main19000-73042i3Y..YH51..MTM;3Y..YH51..4HC..SA;3Y..YH61,71..ARL,GEN,SA198502-198508

sub19000-73043

main19000-73190i3Y..YH51,61..EUR198401-198403

sub15301-71020

sub23811-71011

sub23841-71011

main19000-73191i3Y..YH51,61..EUR198403-198502

sub87208-28021

main19000-73192i3Y..YH51,61..EUR198502-198508

sub19000-73193

main19000-73490i3Y..YH51..4HC..SA;3Y..YH61,71..ARL,GEN,SA;3Y..YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA)198508-198807

sub19000-73491

main19000-73500i3Y..YH61..EUR;3Y..YH51..VSG..5H..EUR;3Y..YH51..(03S,12S)..EUR198508-198708

sub19000-73501

main19000-73590i4Y..YH56198608-198708

main19000-73600i4Y..YH53,63198608-198807

1 parts on this diagram · 1 diagram in section
