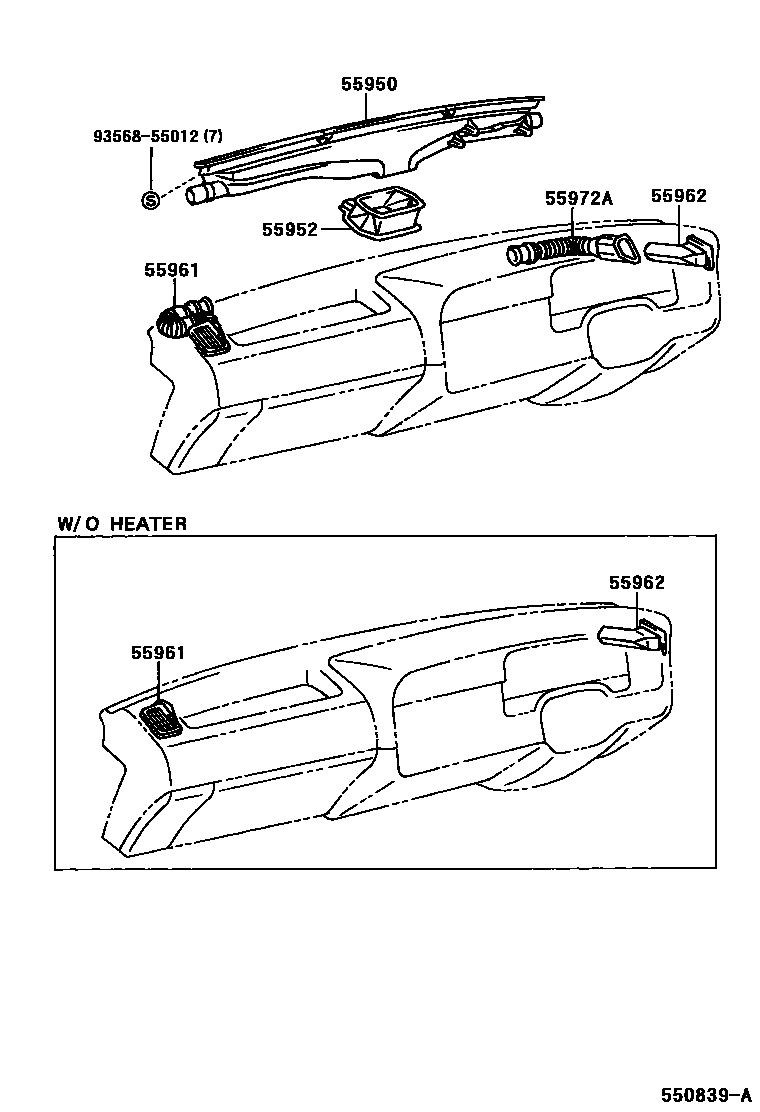

Toyota HIACE VAN,COMMUTER — FRONT VENTILATOR
55950NOZZLE ASSY, DEFROSTER
55952NOZZLE, DEFROSTER, FRONT LH
main55952-95J00iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200008
55961NOZZLE, SIDE DEFROSTER, NO.1
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
main55970-95J02-03iRZH102,112..LHD..06S;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH104..LHD;RZH102,112,114..LHD..(03S,15S)..4F198908-199308
W(FRONT HEATER),GRAY,TRIM1#
W(FRONT HEATER),BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
W(FRONT HEATER),GRAY,TRIM1#
W(FRONT HEATER),BLUISH GRAY,TRIM1#
W(FRONT HEATER),ANTELOPE,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
GRAY,TRIM1#
main55962-95J02-B0iRZH114..LHD..15S;RZH104,115..LHD..GEN..CBR;LH102,104,112,114,115,172,174,RZH102,112,113..LHD..STD..GEN199907-200508
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
main55962-95J03-B0iLH172,RZH113..RHD..SRF..4D..STD..GEN;LH103,11#,RZH102,103,104,112,114..RHD..GEN199808-200108
BLUISH GRAY,TRIM1#
W(FRONT HEATER),GRAY,TRIM1#
main55980-95J02-B0iRZH115..GL;LH174,RZH102,114..SRF..GL;LH105,113,115,166,176,RZH105,115..CIS199808-199907
BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
W(FRONT HEATER),GRAY,TRIM1#
W(FRONT HEATER),BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
ANTELOPE,TRIM4#
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
9356855012
main93568-55012
6 parts on this diagram · 2 diagrams in section
FRONT VENTILATOR for Toyota HIACE VAN,COMMUTER
This section contains 7 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota HIACE VAN,COMMUTER. Key components include: NOZZLE ASSY, DEFROSTER, NOZZLE, DEFROSTER, FRONT LH, NOZZLE, SIDE DEFROSTER, NO.1, NOZZLE, SIDE DEFROSTER, NO.2, DUCT, SIDE DEFROSTER NOZZLE, NO.1.
