Toyota HIACE VAN,COMMUTER — FRONT VENTILATOR

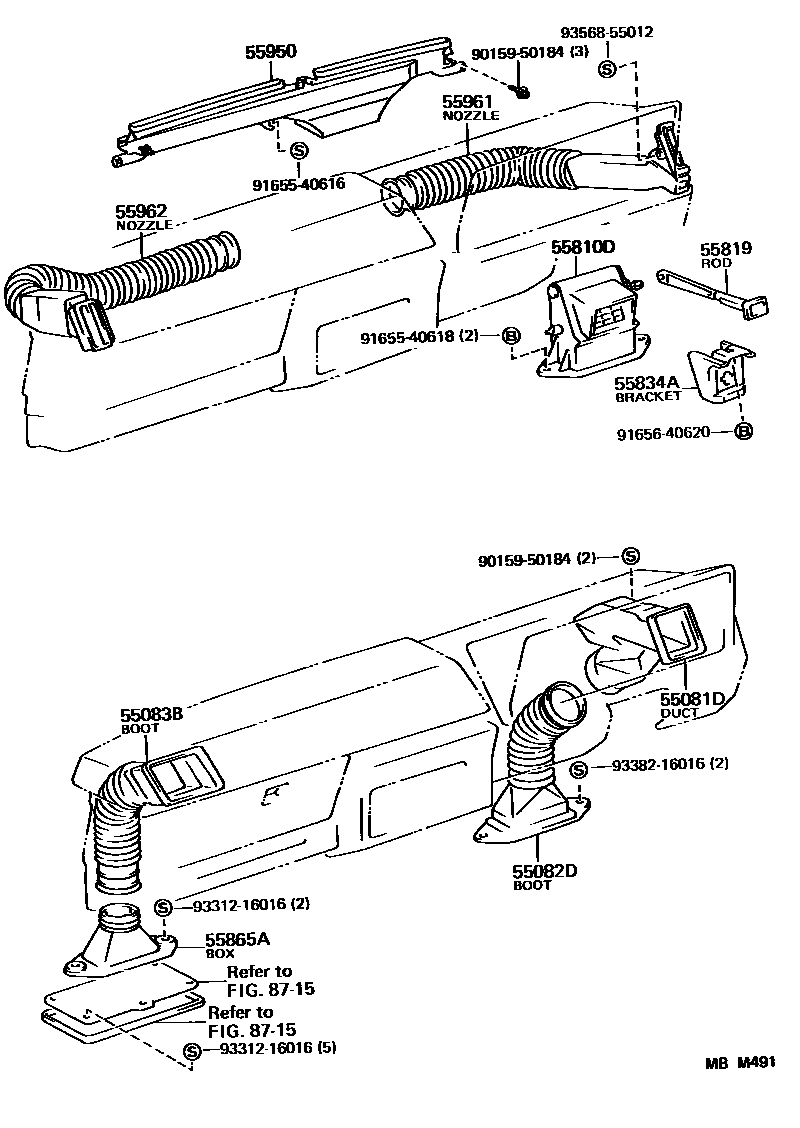

Parts diagram

55081DDUCT SUB-ASSY, COWL TO REGISTER, NO.1

main55081-95J00i198708-198908

main55081-95J01i198708-198908

55082DBOOT SUB-ASSY, SIDE VENT DUCT, NO.1

main55082-95J00i198708-198908

55083BBOOT SUB-ASSY, SIDE VENT DUCT, NO.2

main55083-95J00i198708-198908

55810DVENTILATOR ASSY, FRONT FOOT SIDE

main55810-95J00i199111-199203

main55810-95J01i198708-198908

55819ROD, SIDE VENTILATOR CONTROL

main55819-95J00i199608

55834ABRACKET, FOOT VENTILATOR CONTROL ROD

main55834-95J00i199608

55865ABOX, INSTRUMENT VENTILATOR

main55805-95010i198708-198908

55950NOZZLE ASSY, DEFROSTER

main55950-95J00i198708-199111

main55950-95J01i198708-198908

55961NOZZLE, SIDE DEFROSTER, NO.1

main55970-95J00i199111-199203

main55970-95J01i198708-198908

55962NOZZLE, SIDE DEFROSTER, NO.2

main55980-95J00i198708-198908

main55980-95J01i199608

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9015950184

main90159-50184

9165540616

main91655-40616

9165540618

main91655-40618

9165640620

main91656-40620

9331216016

main93312-16016

9338216016

main93382-16016

9356855012

main93568-55012

18 parts on this diagram · 2 diagrams in section

FRONT VENTILATOR for Toyota HIACE VAN,COMMUTER

This section contains 18 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota HIACE VAN,COMMUTER. Key components include: DUCT SUB-ASSY, COWL TO REGISTER, NO.1, BOOT SUB-ASSY, SIDE VENT DUCT, NO.1, BOOT SUB-ASSY, SIDE VENT DUCT, NO.2, VENTILATOR ASSY, FRONT FOOT SIDE, ROD, SIDE VENTILATOR CONTROL.
