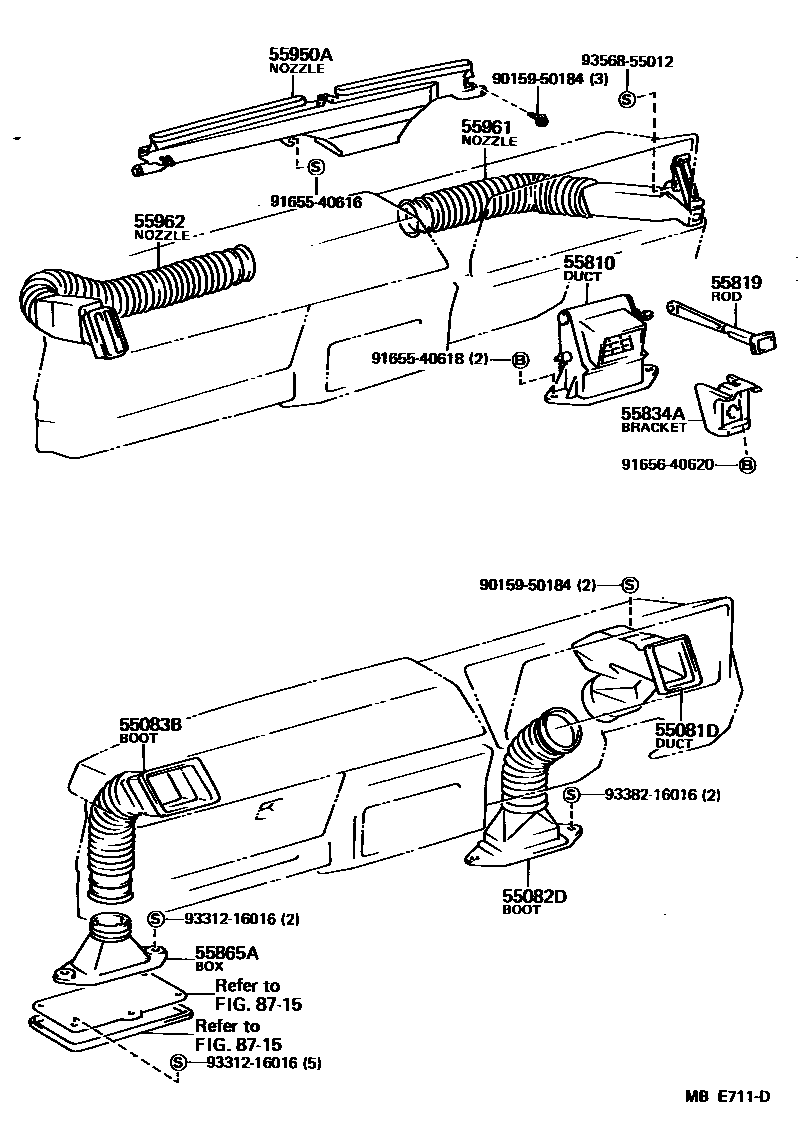

Toyota HIACE VAN,COMMUTER — FRONT VENTILATOR
55081DDUCT SUB-ASSY, COWL TO REGISTER, NO.1
55082DBOOT SUB-ASSY, SIDE VENT DUCT, NO.1
55083BBOOT SUB-ASSY, SIDE VENT DUCT, NO.2
55810DUCT ASSY, SIDE VENTILATOR, RH
55819ROD, SIDE VENTILATOR CONTROL
55834ABRACKET, FOOT VENTILATOR CONTROL ROD
55865ABOX, INSTRUMENT VENTILATOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9015950184
main90159-50184
9165540616
main91655-40616
9165540618
main91655-40618
9165640620
main91656-40620
9331216016
main93312-16016
9338216016
main93382-16016
9356855012
main93568-55012
18 parts on this diagram · 2 diagrams in section
FRONT VENTILATOR for Toyota HIACE VAN,COMMUTER
This section contains 18 genuine Toyota parts for the FRONT VENTILATOR system of the Toyota HIACE VAN,COMMUTER. Key components include: DUCT SUB-ASSY, COWL TO REGISTER, NO.1, BOOT SUB-ASSY, SIDE VENT DUCT, NO.1, BOOT SUB-ASSY, SIDE VENT DUCT, NO.2, DUCT ASSY, SIDE VENTILATOR, RH, ROD, SIDE VENTILATOR CONTROL.
