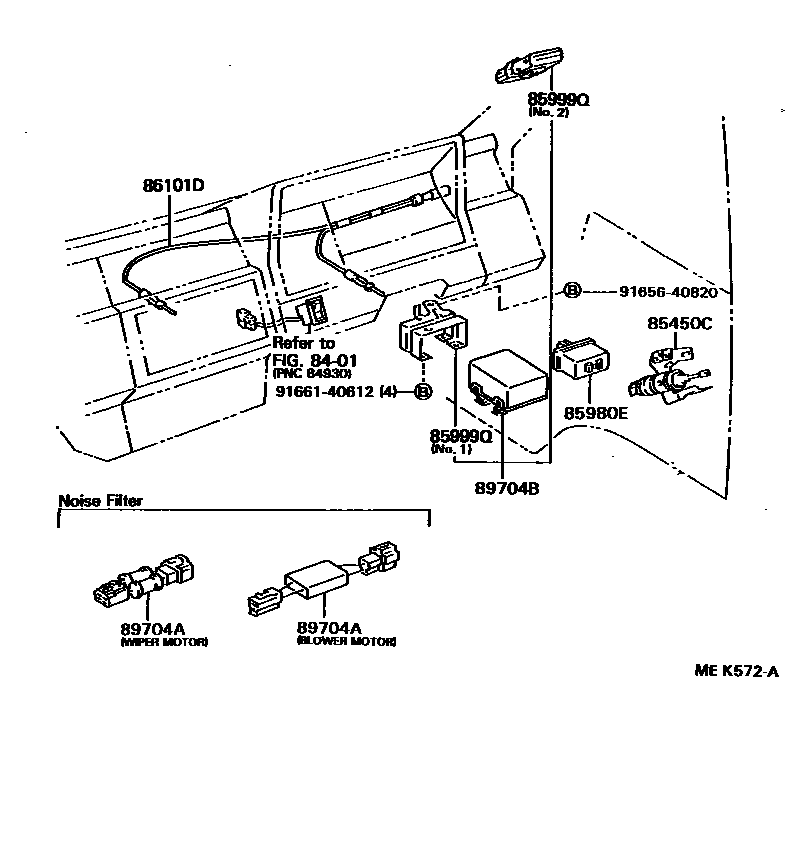

Toyota HIACE TRUCK — WIRELESS DOOR LOCK

8401

85450CSOLENOID ASSY, DOOR CONTROL

main85450-95A02iLH8#,9#,YH81198708-199505

85980ERELAY ASSY, DOOR CONTROL

main85980-26010iLH80..T1,T2,T3198708-199008

main85980-90D00iLH80,90199008-199505

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-36010iLH80..T1,T2,T3198708-199505

NO.1,NIPPONDENSO

main85999-36030iLH8#,9#,YH81198708-199505

NO.1,TOKAIRIKA

main85999-36040iLH8#,9#,YH81198708-199505

NO.2,NIPPONDENSO

main85999-36050iLH80..T1,T2,T3198708-199505

NO.2,TOKAIRIKA

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-36010iLH80..T1,T2,T3198708-199109

sub86101-36011

main86101-36011iLH80,90199109-199505

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05049iLH80..T1,T2,T3198708-199505

WIPER MOTOR

main90980-05107iLH80..T1,T2,T3198708-199505

BLPWER MOTOR

89704BCONTROL ASSY, WIRELESS DOOR LOCK

main89704-26010iLH80..T1,T2,T3198708-198904

sub89704-26011

main89704-26011iLH80..T1,T2,T3198904-199505

9165640820

main91656-40820

9166140612

main91661-40612

9 parts on this diagram · 1 diagram in section
