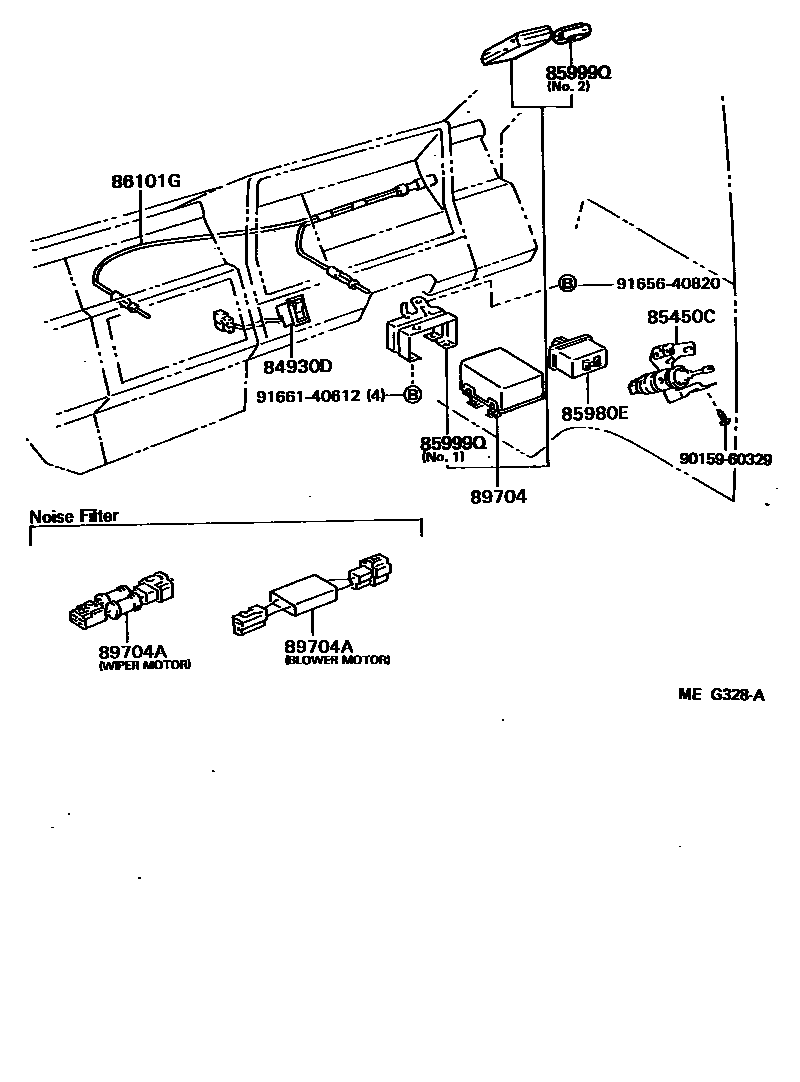

Toyota HIACE TRUCK — WIRELESS DOOR LOCK

84930DSWITCH, DOOR CONTROL

main84931-95400iLH80..T1,T2,T3198508-198708

85450CSOLENOID ASSY, DOOR CONTROL

main85450-95A02iLH80..T1,T2,T3198508-198708

85980ERELAY ASSY, DOOR CONTROL

main85980-26010iLH80..T1,T2,T3198508-198708

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-36010iLH80..T1,T2,T3198508-198708

DENSO

main85999-36030iLH80..T1,T2,T3198508-198708

TOKAIRIKA

86101GCORD SUB-ASSY, ANTENNA

main86101-36010iLH80..T1,T2,T3198508-198708

sub86101-36011

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-26010iLH80..T1,T2,T3198508-198708

sub89704-26011

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05049iLH80..T1,T2,T3198508-198708

WIPER MOTOR

main90980-05107iLH80..T1,T2,T3198508-198708

BLOWER MOTOR

9015960329

main90159-60329

9165640820

main91656-40820

9166140612

main91661-40612

10 parts on this diagram · 1 diagram in section
