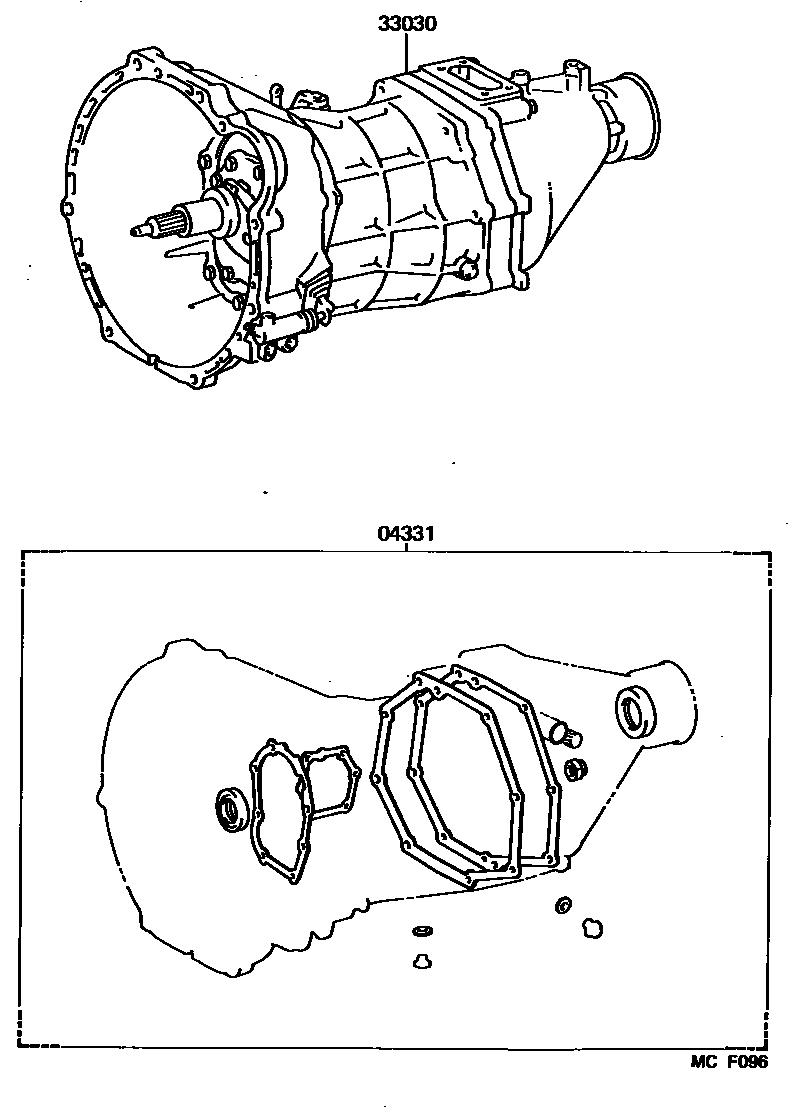

Toyota HIACE TRUCK — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26020iLH85,95198710-199505

main04331-35101iLH80,90,YH81..5F198708-199505

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-26430iYH81..WT;YH81..T3198708-198808

sub33030-26926

main33030-26430iYH81..WT;YH81..T3198708-198808

sub33030-26926

main33030-26440iLH80..5F..(T2,T3)..ST198708-198808

sub33030-26927

main33030-26440iLH80..5F..(T2,T3)..ST198708-198808

sub33030-26927

main33030-26510iLH85,95198710-199309

sub33030-26880

main33030-26850iLH85,95199309-199405

sub33030-26890

main33030-26890iLH85,95199405-199505

main33030-26916iLH80..T1,TW;LH80,90..5F..WT198808-199505

main33030-26917iLH80..T1,TW198808-199505

main33030-26921iYH81..(T1,T2,TW)..ST198708-199505

main33030-26922iLH80..T1,TW;LH80..5F..WT198708-198808

main33030-26926iYH81..WT;YH81..T3198808-199505

main33030-26926iYH81..WT;YH81..T3198808-199505

main33030-26926iYH81..TW198808-199505

2 parts on this diagram · 2 diagrams in section
