Toyota HIACE TRUCK — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

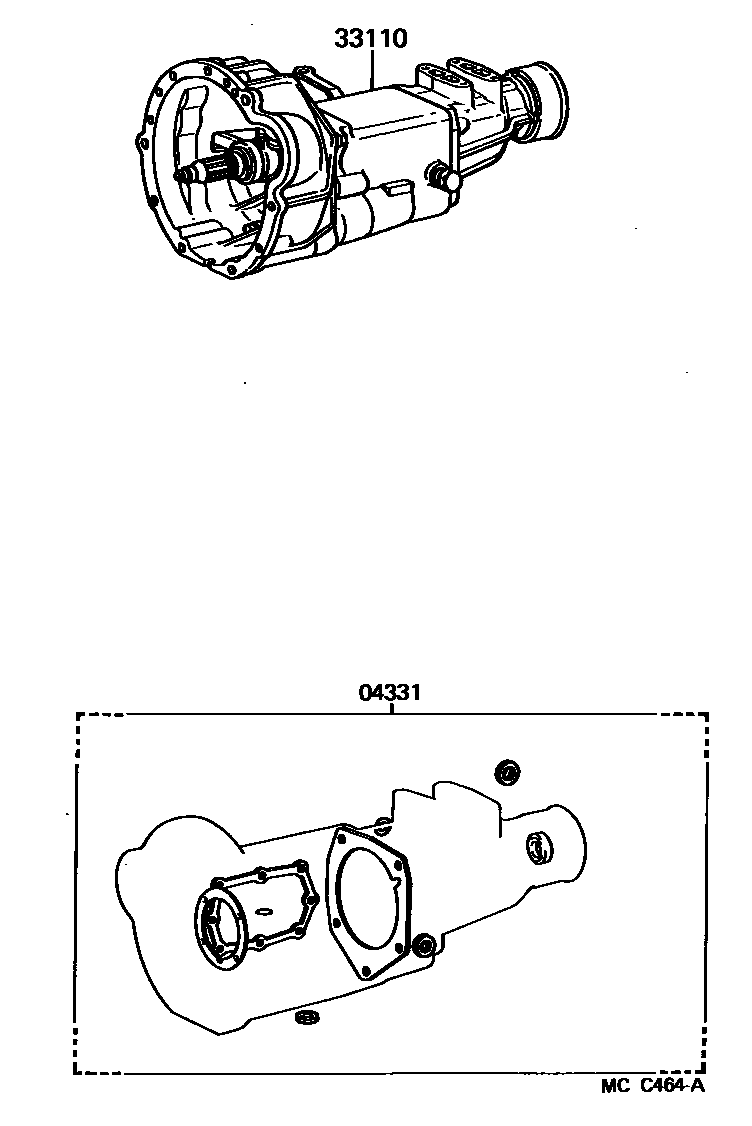

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-26010iYH80198508-198708

main04331-35080iLH80..5F198508-198708

sub04331-35101

33110TRANSMISSION ASSY, MANUAL

main33030-26440iLH80..5F..ST198508-198708

sub33030-26927

main33030-26460iYH80198508-198708

main33030-26905iLH80..T1,TW;LH80..5F..WT198508-198708

2 parts on this diagram · 2 diagrams in section
