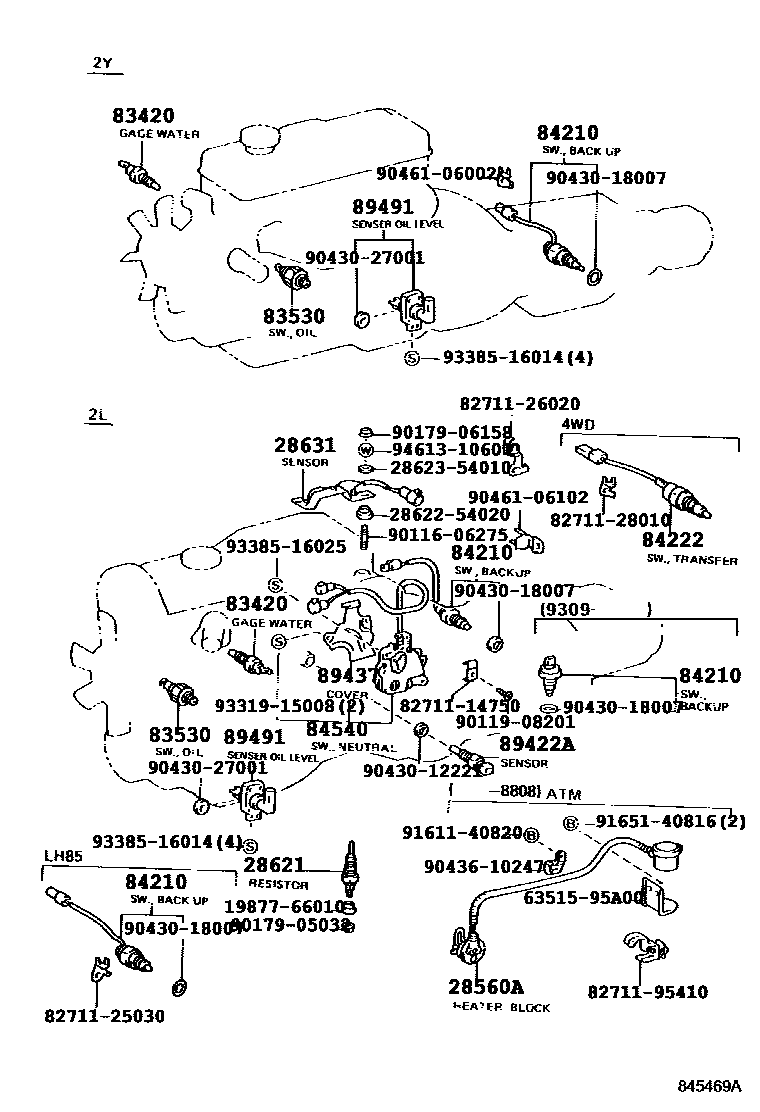

Toyota HIACE TRUCK — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28560ABLOCK, HEATER

main28560-95A00i2L..LH80..4FC198708-198808

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LH8#198708-198808

sub28621-64011

main28621-54080i2L..LH8#198808-199505

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LH8#198708-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLH8#,9#199301-199505

main83420-20020iYH81198708-199309

main83420-20030iLH8#,9#,YH81199301-199505

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYH81198708-199309

sub83530-28030

main83530-14070iYH81199309-199505

sub83530-28010

main83530-30060iLH8#,9#198708-199505

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLH8#,9#,YH81..5F199309-199505

sub84210-52050

main84210-60021iLH8#,YH81..5F198708-199309

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-28010iLH85,95198710-199505

84540SWITCH ASSY, NEUTRAL START

main84540-26010iLH80..4FC198708-198808

main84540-26020iLH80,90..4FC198808-199505

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLH80198808-199505

main89422-30020iLH8#198708-198808

sub89422-12010

89437COVER, SENSOR

main89437-26010iLH80,90..4FC198708-199505

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iLH85,95198910-199505

sub89491-26091

main89491-26100iLH80,90198910-199505

main89491-27020iYH81198910-199505

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

6351595A00GARNISH, ROOF HEADLINING SIDE, REAR LH

main63515-95A00

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25030

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

8271128010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28010

8271195410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95410

9011606275

main90116-06275

9011908201

main90119-08201

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9043610247

main90436-10247

9046106002

main90461-06002

9046106102

main90461-06102

9161140820

main91611-40820

9165140816

main91651-40816

9331915008

main93319-15008

9338516014

main93385-16014

9338516025

main93385-16025

9461310601

main94613-10601

36 parts on this diagram · 4 diagrams in section
