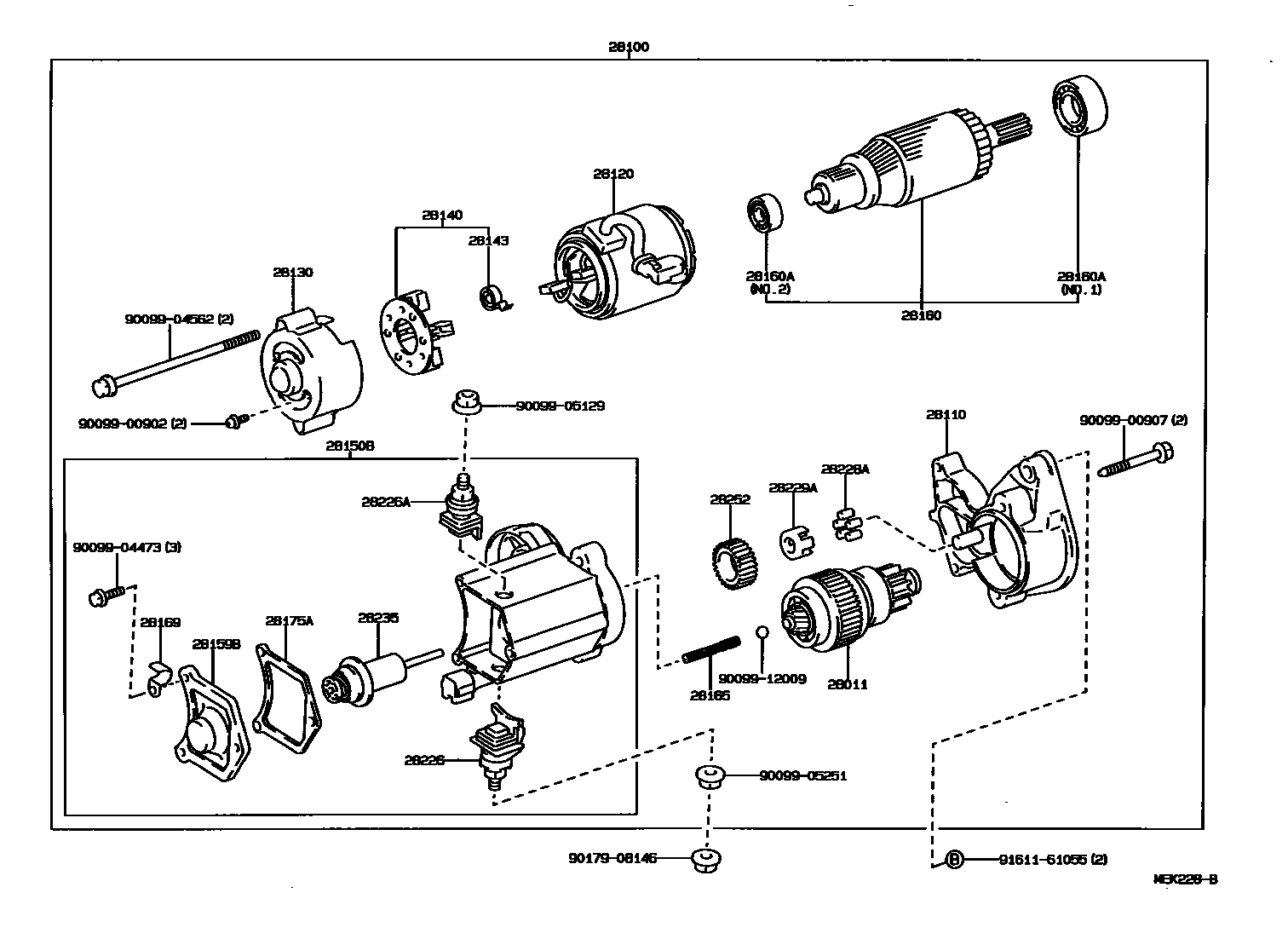

Toyota HIACE TRUCK — STARTER

0001 112V 1.0KW 0002 112V 2.0KW 0003 112V 2.5,2.7KW*COS,�����������

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i2Y..YH81198708-199505

main28011-54010i2L..LH85198708-199505

main28011-54010i2L..LH80,90..4FC198708-199505

main28011-54070i2L..LH8#,9#..5F198708-199309

main28011-54380i2L..LH8#,9#..5F199309-199505

28100STARTER ASSY

main28100-54052i2L..LH80..4FC198708-198910

sub28100-54220

main28100-54052i2L..LH8#..5F198708-198808

sub28100-54220

main28100-54070i2L..LH8#..5F198708-199109

sub28100-54180

main28100-54110i2L..LH8#..5F198708-199109

sub28100-54180

main28100-54120i2L..LH8#198708-198910

sub28100-54210

main28100-54140i2L..LH8#..5F198808-199109

sub28100-54220

main28100-54140i2L..LH80..4FC198808-199109

sub28100-54220

main28100-54160i2L..LH80..4FC198808-199109

sub28100-54210

main28100-54160i2L..LH80..4FC198808-199109

sub28100-54210

main28100-54170i2L..LH8#,9#..5F199109-199309

sub28100-54290

main28100-54250i2L..LH8#,9#..5F199109-199309

sub28100-54300

main28100-54250i2L..LH80,90..4FC199109-199309

sub28100-54300

main28100-54290i2L..LH8#,9#..5F199109-199309

sub28100-54400

main28100-54300i2L..LH8#,9#..5F199109-199309

sub28100-54430

main28100-54300i2L..LH80,90..4FC199109-199309

sub28100-54430

main28100-54320i2L..LH8#,9#..5F199309-199505

main28100-54320i2L..LH8#,9#..5F199309-199505

main28100-54380i2L..LH8#,9#..5F199309-199505

main28100-54400i2L..LH8#,9#..5F199309-199505

sub28100-54380

main28100-54430i2L..LH80,90..4FC199309-199505

main28100-54430i2L..LH80,90..4FC199309-199505

main28100-72010i2Y..YH81198708-199309

main28100-72050i2Y..YH81198708-199309

sub28100-72120

main28100-72130i2Y..YH81199309-199505

sub28100-72200

main28100-72200i2Y..YH81199309-199505

28110HOUSING ASSY, STARTER DRIVE

main28110-72010i2Y..YH81198708-199505

main28115-54011i2L..LH80..5F198708-199505

main28115-54011i2L..LH80,90..4FC198708-199505

main28115-54070i2L..LH8#,9#..5F198708-199505

28120YOKE ASSY, STARTER

main28120-26071i2Y..YH81198708-199505

main28120-54070i2L..LH8#,9#..5F198708-199505

main28120-56081i2L..LH8#,9#..5F198708-199505

main28120-56081i2L..LH80,90..4FC198708-199505

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-54060i2L..LH8#..5F198708-199309

sub28130-54430

sub28199-46080

sub90099-04207

main28130-54060i2L..LH80,90..4FC198708-199309

sub28130-54430

sub28199-46080

sub90099-04207

main28130-54430i2L..LH80,90..4FC199309-199505

main28130-54430i2L..LH80,90..4FC199309-199505

main28130-72010i2Y..YH81198708-199505

main28130-72050i2Y..YH81198708-199505

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i2Y..YH81198708-199505

main28140-54070i2L..LH8#,9#..5F198708-199309

main28140-54380i2L..LH8#,9#..5F199309-199505

main28140-77090i2L..LH80..5F198708-198910

main28140-77090i2L..LH80,90..4FC198708-199505

main28140-77090i2L..LH8#,9#..5F198910-199505

28143SPRING, STARTER BRUSH

main90099-17112i2Y..YH81198708-199505

main90099-17115i2L..LH8#,9#..5F198708-199505

28150BSWITCH ASSY, MAGNETIC

main28150-34080i2Y..YH81198708-199505

main28150-54051i2L..LH8#..5F198708-198910

sub28150-54221

main28150-54070i2L..LH8#..5F198708-199109

sub28150-54110

main28150-54110i2L..LH8#,9#..5F198708-199505

main28150-54120i2L..LH85198708-198910

sub28150-54210

main28150-54140i2L..LH80,90..4FC198808-199309

sub28150-54190

main28150-54140i2L..LH8#,9#..5F198808-199309

sub28150-54190

main28150-54160i2L..LH80..4FC198808-199309

sub28150-54300

main28150-54160i2L..LH80..5F198808-199309

sub28150-54300

main28150-54181i2L..LH8#,9#..5F199109-199505

main28150-54430i2L..LH80,90..4FC199309-199505

main28150-54430i2L..LH80,90..4FC199309-199505

main28150-56201i2L..LH80,90..4FC199309-199505

main28150-72050i2Y..YH81198708-199309

main28150-72200i2Y..YH81199309-199505

sub28150-72130

28159BCOVER, MAGNET SWITCH

main28159-10040i2Y..YH81198708-199505

main28159-54170i2L..LH8#,9#..5F198710-199309

main28159-54380i2L..LH8#,9#..5F199309-199505

main28159-56310i2L..LH80..4FC198808-199505

main28159-56310i2L..LH80..4FC199008-199109

28160ARMATURE ASSY, STARTER

main28160-26070i2Y..YH81198708-198908

sub28160-26071

main28160-26071i2Y..YH81198908-199505

main28160-47040i2L..LH80..4FC198708-198910

sub28160-54140

main28160-54070i2L..LH8#..5F198708-198908

sub28160-54071

main28160-54071i2L..LH8#,9#..5F198908-199309

main28160-54120i2L..LH85198708-198910

sub28160-54160

main28160-54140i2L..LH80..5F198808-199505

main28160-54140i2L..LH80,90..4FC198808-199505

main28160-54160i2L..LH80..5F198808-199505

main28160-54160i2L..LH80..4FC198808-199505

main28160-54380i2L..LH8#,9#..5F199309-199505

main28160-72050i2Y..YH81198708-198907

sub28160-72051

main28160-72051i2Y..YH81198908-199505

28160ABEARING, STARTER ARMATURE

main28253-45020i2Y..YH81198708-199505

main28253-54070i2L..LH8#,9#..5F198708-199309

main90099-10107i2L..LH8#,9#..5F198708-199505

main90099-10107i2L..LH80,90..4FC198708-199505

main90099-10113i2Y..YH81198708-199505

main90099-10119i2L..LH80..5F198708-199505

main90099-10119i2L..LH80..4FC198708-199505

main90099-10131i2L..LH8#,9#..5F198708-199309

main90099-10131i2L..LH8#198708-198910

main90099-10138i2Y..YH81198708-199505

main90099-10139i2Y..YH81198708-199505

main90099-10197i2L..LH8#,9#..5F199309-199505

NO.1

main90099-10208i2L..LH8#,9#..5F199309-199505

NO.2

main90099-54120i2L..LH85198708-198910

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L,2Y..LH8#,9#,YH81..5F198708-199505

main28165-77090i2L..LH85198708-199505

main28165-77090i2L..LH80,90..4FC198708-199505

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i2Y..YH81198708-199505

main28169-54070i2L..LH8#,9#..5F198710-199309

main28169-54380i2L..LH8#,9#..5F199309-199505

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i2Y..YH81198708-199505

main28175-54380i2L..LH8#,9#..5F199309-199505

main28175-56310i2L..LH8#..5F199008-199109

main28175-56310i2L..LH80..4FC198808-199505

28226STARTER KIT, BATTERY TERMINAL

main28226-54250i2L..LH8#,9#..5F198808-199309

sub28226-54300

main28226-54320i2L..LH8#,9#..5F199309-199505

main28226-54350i2L..LH85;2L..LH80..5F..TS;2L..LH80..TB..ST198708-199309

main28226-54360i2L..LH8#,9#..5F199109-199309

main28226-54380i2L..LH8#,9#..5F199309-199505

sub28226-54340

main28226-54400i2L..LH8#,9#..5F199309-199505

main28226-56270i2L..LH8#,9#..5F199109-199309

main28226-56270i2L..LH80,90..4FC199109-199309

main28226-56330i2L..LH8#,9#..5F199309-199505

sub28226-17030

main28226-56330i2L..LH80,90..4FC199309-199505

sub28226-17030

main28226-70040i2Y..YH81199309-199505

main28226-72050i2Y..YH81198708-199309

main28226-72170i2Y..YH81199309-199505

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54100i2L..LH8#..5F198708-199101

main28226-54220i2L..LH8#,9#..5F198808-199505

main28226-54220i2L..LH80,90..4FC199109-199505

main28226-72010i2L,2Y..LH8#,9#,YH81..5F198708-199505

28228AROLLER, STARTER CLUTCH

main28228-26040i2L,2Y..LH8#,9#,YH81..5F198708-199505

main28228-56080i2L..LH85198708-199505

main28228-56080i2L..LH80,90..4FC198708-199505

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i2L,2Y..LH8#,9#,YH81..5F198708-199505

main28229-56080i2L..LH80..5F198708-199505

main28229-56080i2L..LH80,90..4FC198708-199505

28235PLUNGER, MAGNET SWITCH

main28235-17030i2L..LH80..4FC198808-199505

main28235-17030i2L..LH80..4FC199008-199109

main28235-35080i2Y..YH81198708-199505

main28235-54380i2L..LH8#,9#..5F199309-199505

28252GEAR, STARTER IDLE

main28254-45020i2Y..YH81198708-199505

main28254-54070i2L..LH8#,9#..5F198708-199505

main28254-77090i2L..LH85198708-199505

main28254-77090i2L..LH80,90..4FC198708-199505

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

29 parts on this diagram · 3 diagrams in section
