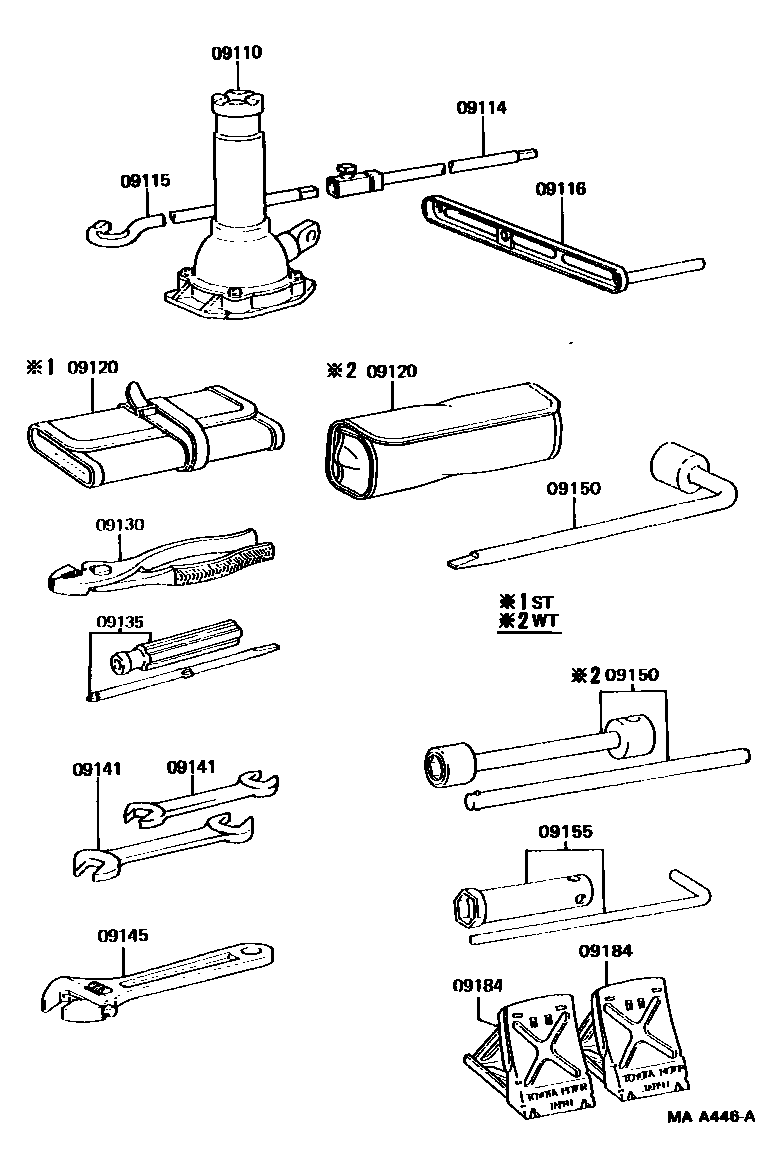

Toyota HIACE TRUCK — STANDARD TOOL

09110JACK ASSY

main09111-26060iLH8#,9#,YH81198708-199505

sub09110-25090

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iLH8#,9#,YH81198708-199505

09115ROD SUB-ASSY, JACK HANDLE

main09115-28020iLH8#,9#,YH81198708-199505

09116LEVER, JACK HANDLE

main09116-35041iLH8#,9#,YH81198708-199505

09120BAG, TOOL

main09120-26021iLH8#,9#,YH81..ST198708-199505

sub09120-35170

main09120-36020iLH80,YH81..WT198708-199109

main09120-36070iLH80,90,YH81..WT199109-199505

09130PLIERS

main99913-11500iLH8#,9#,YH81198708-199505

09135DRIVER, SCREW

main99915-10700iLH8#,9#,YH81198708-199505

09141SPANNER

main99914-10810iLH8#,9#,YH81198708-199505

main99914-11214iLH8#,9#,YH81198708-199505

09145WRENCH, MONKEY

main99911-11200iLH8#,9#,YH81198708-199505

09150WRENCH, HUB NUT BOX

main09150-25010iLH80,90,YH81..WT198708-199505

main09150-26030iLH80,90,YH81..WT198801-199505

main09150-35020iLH80,YH81..WT198708-198801

D=21

sub09150-40010

main09150-35020iLH8#,YH81..ST198708-198801

D=21,FOR FR TIRE

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-41010iYH81198708-199505

09184STOPPER, WHEEL

main09184-00010iLH8#,9#,YH81198708-199505

12 parts on this diagram · 1 diagram in section
