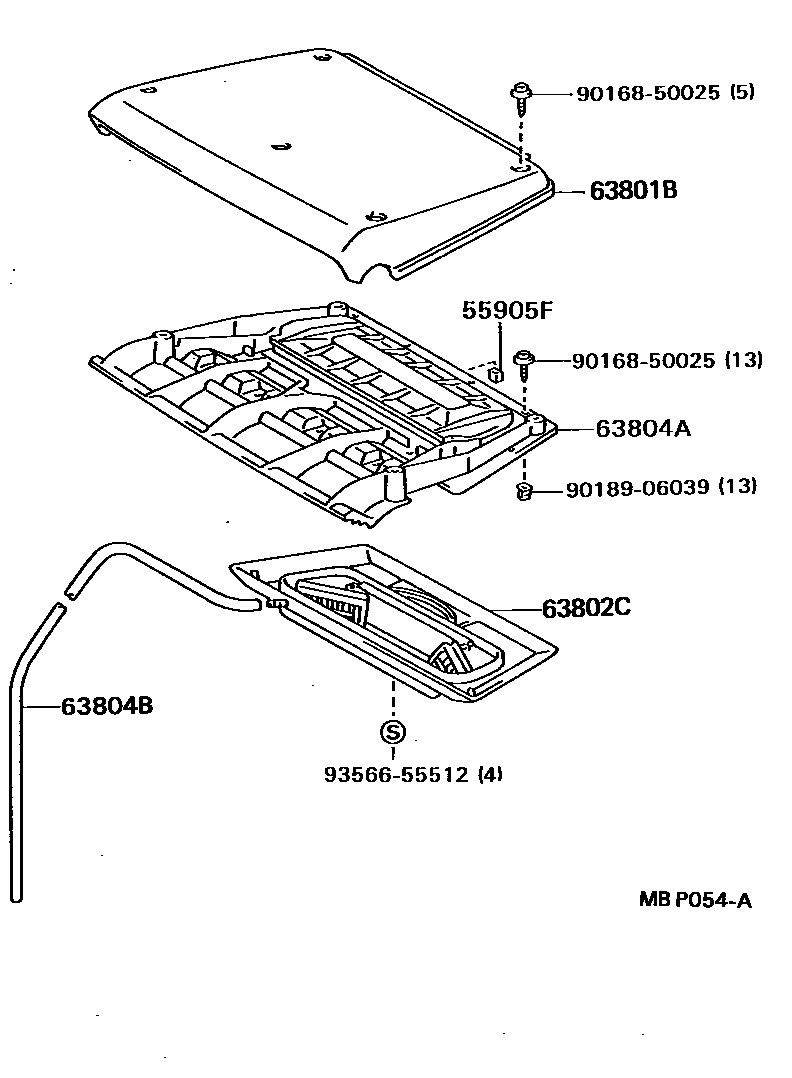

Toyota HIACE TRUCK — REAR VENTILATOR & ROOF VENTILATOR

55905FKNOB SUB-ASSY, CONTROL

main55905-10110iLH80,YH81..T1..CBU198708-199505

63801BCOVER SUB-ASSY, ROOF VENTILATOR

main63801-95401iLH80,YH81..T1..CBU198708-199505

63802CCOVER SUB-ASSY, ROOF VENTILATOR, NO.2

main63802-95400-03iLH80,YH81..T1..CBU198708-199109

GRAY,TRIM8#

sub63802-95400

main63802-95400-B6iLH80,YH81..T1..IV;LH8#,9#,YH81..T2,T3199109-199505

GRAY,TRIM1#

sub63802-95400

63804AHOUSING SUB-ASSY, ROOF VENTILATOR

main63804-95400iLH80,YH81..T1..CBU198708-199505

63804BHOSE, DRAIN(FOR ROOF VENTILATOR)

main88539-95402iLH80,YH81..T1..CBU198708-199505

9016850025

main90168-50025

9018906039

main90189-06039

9356655512

main93566-55512

8 parts on this diagram · 1 diagram in section
