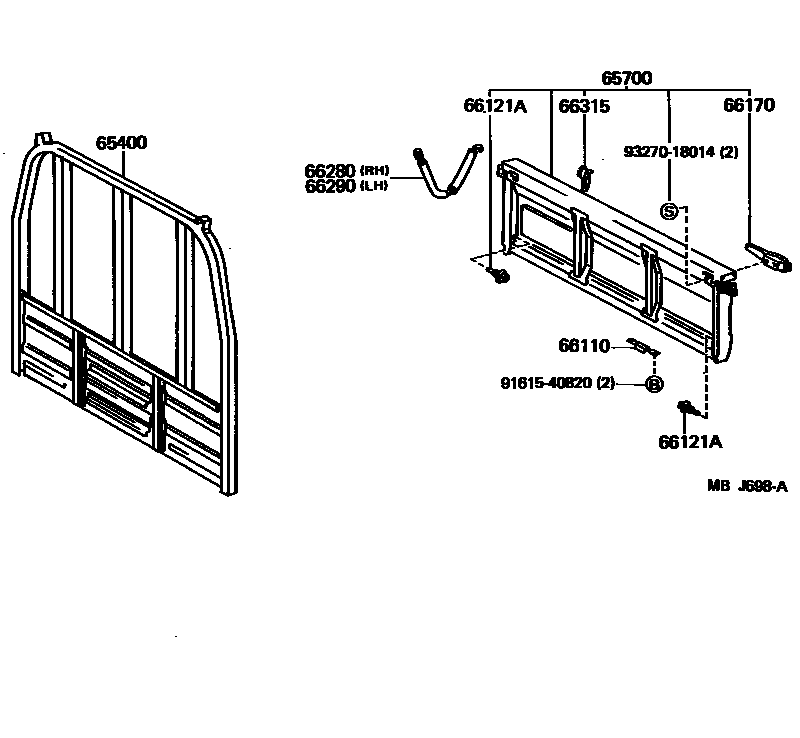

Toyota HIACE TRUCK — REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400FRAME ASSY, REAR BODY GUARD

main65400-92503iLH80..TB198508-198608

main65400-92504iLH80..TB198608-198708

main65400-95A05iLH80,YH80..TW198508-198708

main65400-95A06iLH80,YH80..T3198508-198708

sub65400-95A12

main65400-95A07iLH80,YH80..T2..TS198508-198708

sub65400-95A13

main65400-95A08iLH80,YH80..T1198508-198708

sub65400-26060

65700GATE ASSY, REAR BODY TAIL

main65700-92204iLH80..TB198508-198509

main65700-92205iLH80..TB198509-198608

sub65700-92714

main65700-92206iLH80..TB198608-198708

sub65700-92717

main65700-95030iLH80,YH80..T1,TW198508-198708

sub65700-25010

main65700-95031iLH80,YH80..(T2,T3)..TS198606-198708

sub65700-95032

main65700-95A03iLH80,YH80..(T2,T3)..TS198508-198606

sub65700-95031

sub66280-95016

66110HINGE ASSY, TAIL GATE

main66110-92701iLH80..TB198508-198608

main66110-92702iLH80..TB198608-198708

main66110-95014iLH80,YH80..T1,TW198508-198708

main66110-95020iLH80,YH80..(T2,T3)..TS198508-198708

66121ABOLT, TAIL GATE MALE

main66121-95012iLH80,YH80..T1,TW198508-198708

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLH80,YH80..T1,TW198508-198708

66280CHAIN ASSY, TAIL GATE, RH

main66280-92201iLH80..TB198508-198608

main66280-92702iLH80..TB198608-198708

main66280-95403iLH80,YH80..T1,TW198508-198708

sub66280-37010

main66280-95A00iLH80,YH80..(T2,T3)..TS198508-198708

66290CHAIN ASSY, TAIL GATE, LH

main66280-92201iLH80..TB198508-198608

main66280-92702iLH80..TB198608-198708

main66280-95403iLH80,YH80..T1,TW198508-198708

sub66280-37010

main66280-95A00iLH80,YH80..(T2,T3)..TS198508-198708

66315HOOK, ROPE

main66311-92701iLH80..TB198508-198708

main66311-95010iLH80,YH80..T1,TW198508-198708

sub66311-90K00

main66312-95A01iLH80,YH80..(T2,T3)..TS198508-198708

9161540820

main91615-40820

9327018014

main93270-18014

10 parts on this diagram · 3 diagrams in section
