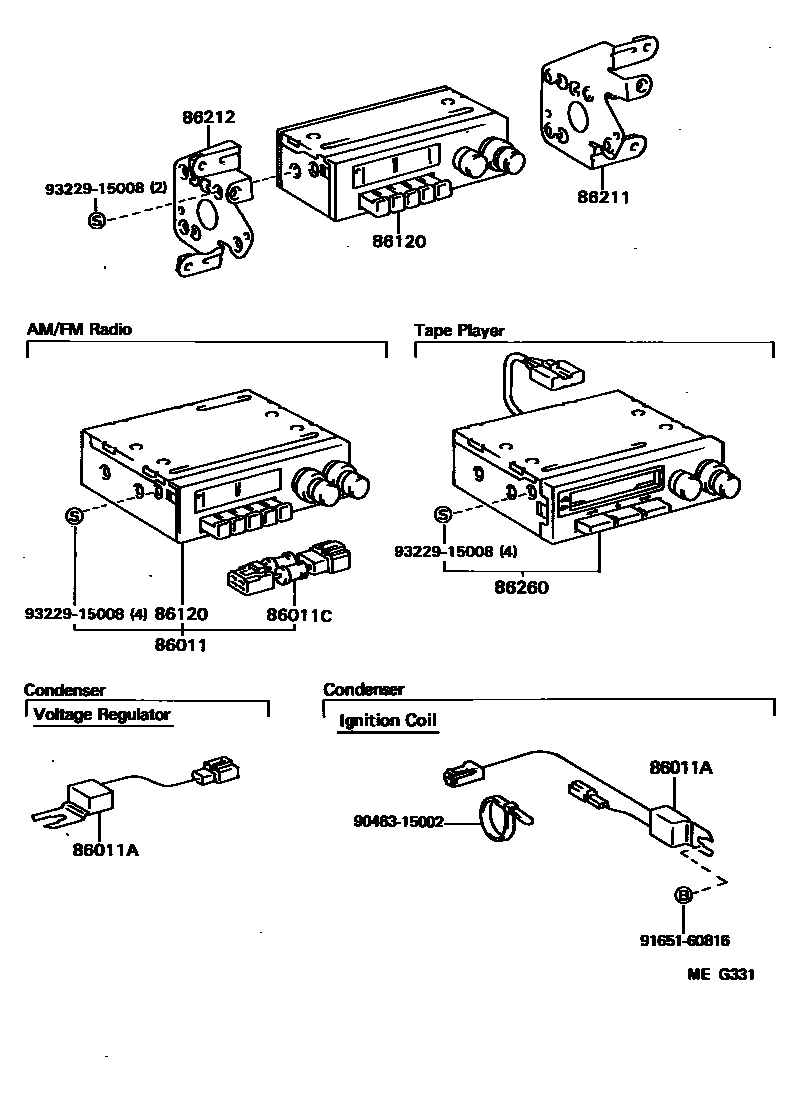

Toyota HIACE TRUCK — RADIO RECEIVER & AMPLIFIER & CONDENSER

86011RADIO & SETTING PARTS SET

main86011-95423iLH80,YH80198508-198608

AM/FM

main86011-95425iLH80,YH80198608-198708

AM/FM

86011ACONDENSER, RADIO SETTING

main90980-04040iLH80198508-198708

VOLTAGE REGULATOR

main90980-04059iYH80198508-198708

IGNITION COIL

86011CFILTER, NOISE

main90980-05049iLH80,YH80198508-198708

86120RECEIVER ASSY, RADIO

main86120-16530iLH80,YH80198608-198708

sub86120-35080

sub86120-35110

sub86120-37010

main86120-17010iLH80,YH80198508-198608

AM

main86120-17020iLH80,YH80198508-198608

AM/FM

sub86120-89131

sub86203-20170

main86120-89131iLH80,YH80198608-198708

86211BRACKET, RADIO, NO.1

main86211-95406iLH80,YH80198508-198708

86212BRACKET, RADIO, NO.2

main86212-95406iLH80,YH80198508-198708

86260TAPE PLAYER ASSY

main86021-95411iLH80,YH80198508-198608

main86021-95413iLH80,YH80198608-198708

9046315002

main90463-15002

9165160816

main91651-60816

9322915008

main93229-15008

10 parts on this diagram · 1 diagram in section
