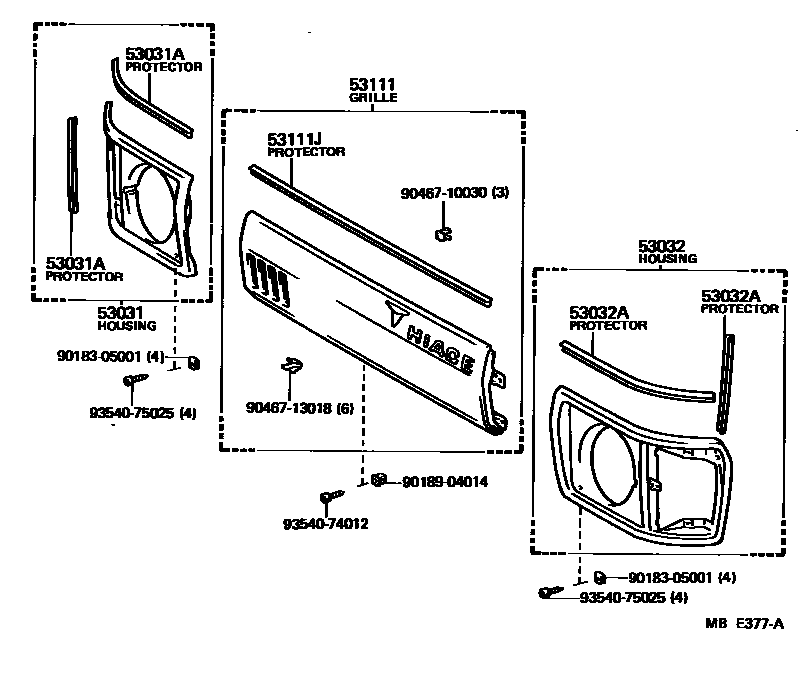

Toyota HIACE TRUCK — RADIATOR GRILLE
53031HOUSING, HEADLAMP, RH
53031APROTECTOR, HEADLAMP DOOR, RH
L=413
L=330
53032HOUSING, HEADLAMP, LH
53032APROTECTOR, HEADLAMP DOOR, LH
L=413
L=330
53111GRILLE, RADIATOR
53111JPROTECTOR, RADIATOR GRILLE
L=858
9018305001
main90183-05001
9018904014
main90189-04014
9046710030
main90467-10030
9046713018
main90467-13018
9354074012
main93540-74012
9354075025
main93540-75025
12 parts on this diagram · 1 diagram in section
RADIATOR GRILLE for Toyota HIACE TRUCK
This section contains 12 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota HIACE TRUCK. Key components include: HOUSING, HEADLAMP, RH, PROTECTOR, HEADLAMP DOOR, RH, HOUSING, HEADLAMP, LH, PROTECTOR, HEADLAMP DOOR, LH, GRILLE, RADIATOR.
