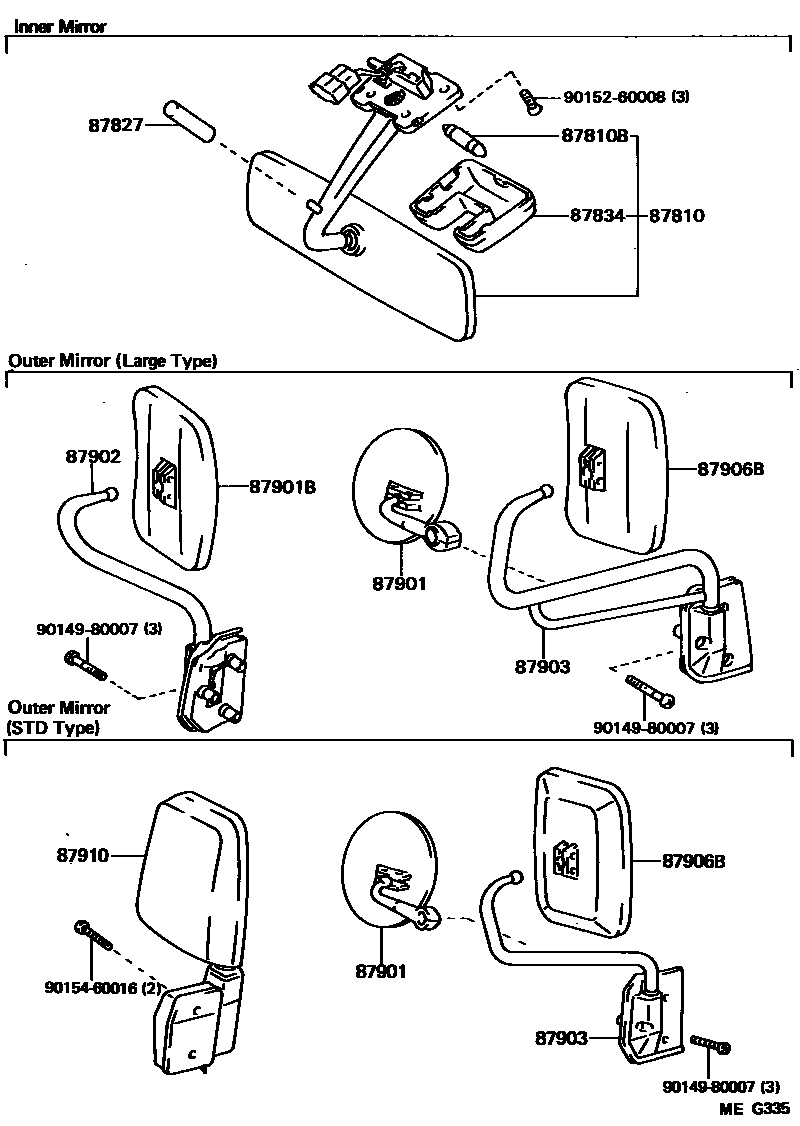

Toyota HIACE TRUCK — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95418iLH80,YH80198508-198708

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iLH80,YH80198508-198708

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iLH80,YH80198508-198708

L=38.5

main87828-30010iLH80,YH80198508-198708

L=43.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iLH80,YH80198508-198708

87901MIRROR SUB-ASSY, OUTER UNDER VIEW

main87906-95402iLH80,YH80..IV198508-198708

LARGE TYPE

main87907-95A00iLH80,YH80198509-198708

STD TYPE

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-95411iLH80,YH80..IV198508-198708

LARGE TYPE

sub87901-37030

87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH

main87093-95400iLH80,YH80..IV198508-198708

LARGE TYPE

sub87093-37030

87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH

main87094-95401iLH80,YH80..IV198508-198708

LARGE TYPE

main87094-95A00iLH80,YH80198508-198708

STD TYPE

sub87094-26020

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-95411iLH80,YH80..IV198508-198708

LARGE TYPE

sub87901-37030

main87901-95A00iLH80,YH80198508-198708

STD TYPE

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95A10iLH80,YH80198508-198708

STD TYPE

9014980007

main90149-80007

9015260008

main90152-60008

9015460016

main90154-60016

13 parts on this diagram · 1 diagram in section
