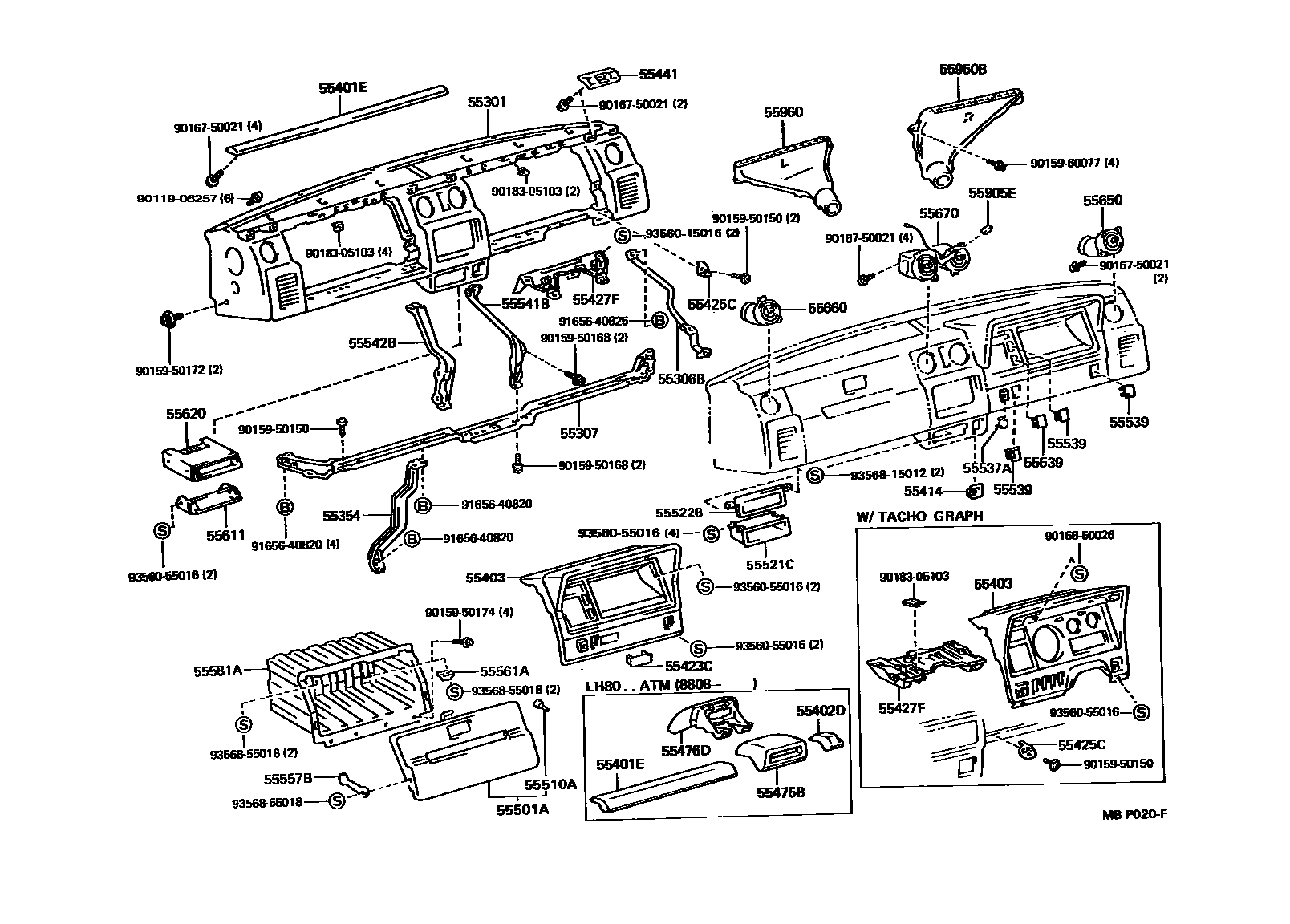

Toyota HIACE TRUCK — INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95027-04iLH8#,YH81..5F198708-199109

BLUE,TRIM8#

main55311-95027-B0iLH8#,9#,YH81..5F199109-199505

GRAY,TRIM1#

main55311-95425-04iLH80..IV198708-199109

main55311-95425-B0iLH80..IV199109-199505

main55311-95A04-04iLH80..4FC198808-199109

BLUE,TRIM8#

main55311-95A04-B0iLH80,90..4FC199109-199505

GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-95016iLH85,95198710-199505

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iLH8#,9#,YH81198708-199505

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iLH8#,9#,YH81198708-199505

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95425-04iLH80..4FC198808-199109

BLUE,TRIM8#

main55401-95425-B0iLH80,90..4FC199109-199505

GRAY,TRIM1#

main55431-95012-04iLH8#,YH81198708-199109

BLUE,TRIM8#

main55431-95012-B0iLH8#,9#,YH81..5F199109-199505

GRAY,TRIM1#

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-95418-04iLH80..4FC198808-199109

BLUE,TRIM8#

main55402-95418-B0iLH80,90..4FC199109-199505

GRAY,TRIM1#

55403HOOD SUB-ASSY, METER

main55403-26010-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

main55403-95020-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub55403-26010

main55403-95B23-04iLH80..IV198708-199109

main55403-95B23-B0iLH80..IV199109-199309

main55403-95B28-04iLH80..IV198708-199109

main55403-95B28-B0iLH80..IV199109-199309

main55403-95B28-B0iLH80..IV199309-199505

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLH8#,9#,YH81198708-199505

55423CCOVER, CLOCK OPENING

main55423-26010-B0iLH8#,9#,YH81199109-199309

GRAY,TRIM1#

main55423-95011-04iLH8#,YH81198709-199109

BLUE,TRIM8#

sub55423-26020

55425CBRACKET, METER HOOD SET, NO.1

main55425-95010iLH8#,9#,YH81198708-199505

main55425-95404iLH80..IV198708-199505

55427FBRACKET, METER HOOD SET, NO.3

main55427-95010iLH8#,9#,YH81198708-199505

main55427-95402iLH80..IV198708-199505

55441BOX, INSTRUMENT PANEL

main55441-95417-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub55441-95417

main55441-95417-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub55441-95417

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-37010-B0iLH80,90..4FC199109-199505

GRAY,TRIM1#

main55475-95401-R5iLH80..4FC198808-199109

BLUE,BLUE,TRIM8#

sub55475-37010

55476DGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-37010-B0iLH80,90..4FC199109-199505

GRAY,TRIM1#

main55476-95400-04iLH80..4FC198808-199109

BLUE,TRIM8#

sub55476-37010

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-95412-04iLH8#,YH81198708-199109

BLUE,TRIM8#

sub55501-95412

sub55501-95921

main55501-95412-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

sub55501-95412

sub55501-95921

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iLH8#,9#,YH81198708-199505

main90541-05080iLH8#,9#,YH81198708-199505

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iLH8#,YH81198708-199109

BLACK,TRIM8#

sub55521-14050

main55521-14050-01iLH9#;LH80..TB..WT199109-199505

BLACK,TRIM1#

sub55521-14050

55522BCOVER, RADIO TUNER OPENING

main55522-20040iLH80..TS;LH85,YH81;LH80..TB..ST198708-199505

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-04iYH81;LH80..IV198708-199109

BLUE,TRIM8#

sub55537-95010

main55537-95010-B0iYH81;LH80..IV199109-199505

GRAY,TRIM1#

sub55537-95010

55539COVER, SPARE SWITCH HOLE

main55539-95400-04iLH80..IV198708-199109

main55539-95400-B0iLH80..IV199109-199505

main55539-95J00-04iLH8#,YH81198708-199109

BLUE,TRIM8#,42.6 X 24.6

sub55539-95J00

main55539-95J00-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#,42.6 X 24.6

sub55539-95J00

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iLH8#,9#,YH81198708-199505

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iLH8#,9#,YH81198708-199505

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01iLH8#,9#,YH81199109-199505

BLACK,TRIM1#

main55557-95400-01iLH8#,YH81198708-199109

BLACK,TRIM8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iLH8#,YH81198708-199109

BLACK,TRIM8#

main55561-95401-01iLH8#,9#,YH81199109-199505

BLACK,TRIM1#

55581ACOMPARTMENT, GLOVE

main55581-95400-01iLH8#,YH81198708-199109

BLACK,TRIM8#

main55581-95400-01iLH8#,9#,YH81199109-199505

BLACK,TRIM1#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-26010iLH8#,9#,YH81199109-199505

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-37010iLH8#,9#,YH81199109-199505

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-26010-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

main55650-95400-01iLH8#,YH81198708-199109

BLACK,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-26010-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

main55650-95400-01iLH8#,YH81198708-199109

BLACK,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-26010-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

main55670-95400-01iLH8#,YH81198708-199109

BLACK,TRIM8#

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLH8#,YH81198708-199109

BLACK,TRIM8#

sub55905-12050

sub55905-20230

sub55905-35090

main55905-37010-B0iLH8#,9#,YH81199109-199505

GRAY,TRIM1#

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95010iLH8#,9#,YH81198708-199505

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95010iLH8#,9#,YH81198708-199505

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9016850026

main90168-50026

9018305103

main90183-05103

9165640820

main91656-40820

9165640825

main91656-40825

9356015016

main93560-15016

9356055016

main93560-55016

9356815012

main93568-15012

9356855018

main93568-55018

48 parts on this diagram · 1 diagram in section
