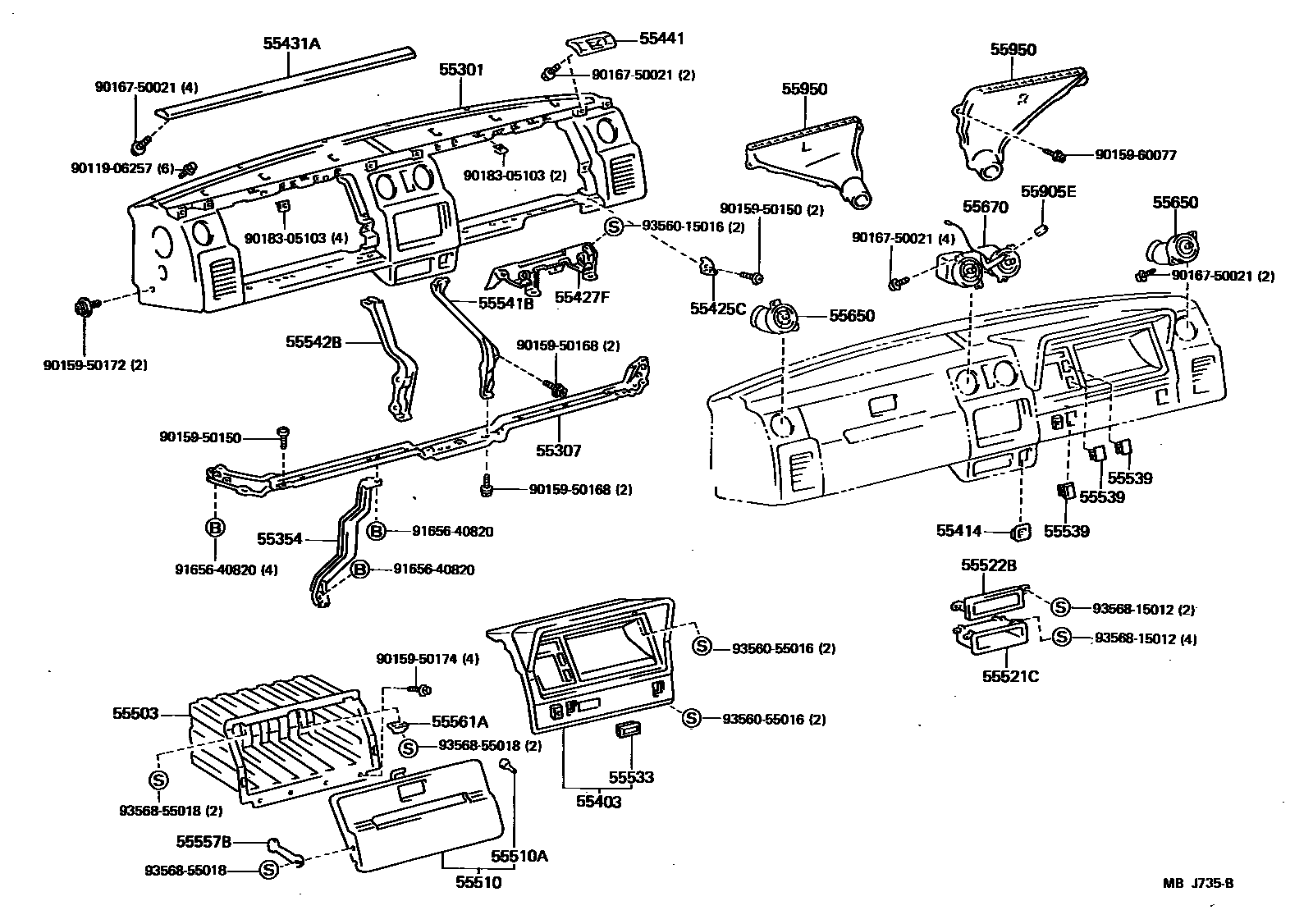

Toyota HIACE TRUCK — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
BLUE,BLUE
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55354BRACE, INSTRUMENT PANEL TO FLOOR
55403HOOD SUB-ASSY, METER
BLUE,BLUE
W/TACHOGRAPH
55414BEZEL, CIGAR LIGHTER HOLE
55425CBRACKET, METER HOOD SET, NO.1
55427FBRACKET, METER HOOD SET, NO.3
55431APANEL, INSTRUMENT PANEL FINISH
BLUE,BLUE
55441BOX, INSTRUMENT PANEL
55503COMPARTMENT SUB-ASSY, GLOVE
BLACK,BLACK
55510DOOR ASSY, GLOVE COMPARTMENT
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
OD=7
OD=10
55521CCOVER, STEREO OPENING
55522BCOVER, RADIO TUNER OPENING
55533COVER, AUTO CLOCK HOLE
55539COVER, SPARE SWITCH HOLE
55541BRETAINER, RADIO TUNER OPENING, NO.1
55542BRETAINER, RADIO TUNER OPENING, NO.2
55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK
BLACK,BLACK
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
BLACK,BLACK
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
BLACK,BLACK
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
BLACK,BLACK
55905EKNOB SUB-ASSY, CONTROL
55950NOZZLE ASSY, DEFROSTER
RH
LH
9011906257
main90119-06257
9015950150
main90159-50150
9015950168
main90159-50168
9015950172
main90159-50172
9015950174
main90159-50174
9015960077
main90159-60077
9016750021
main90167-50021
9018305103
main90183-05103
9165640820
main91656-40820
9356015016
main93560-15016
9356055016
main93560-55016
9356815012
main93568-15012
9356855018
main93568-55018
37 parts on this diagram · 1 diagram in section
