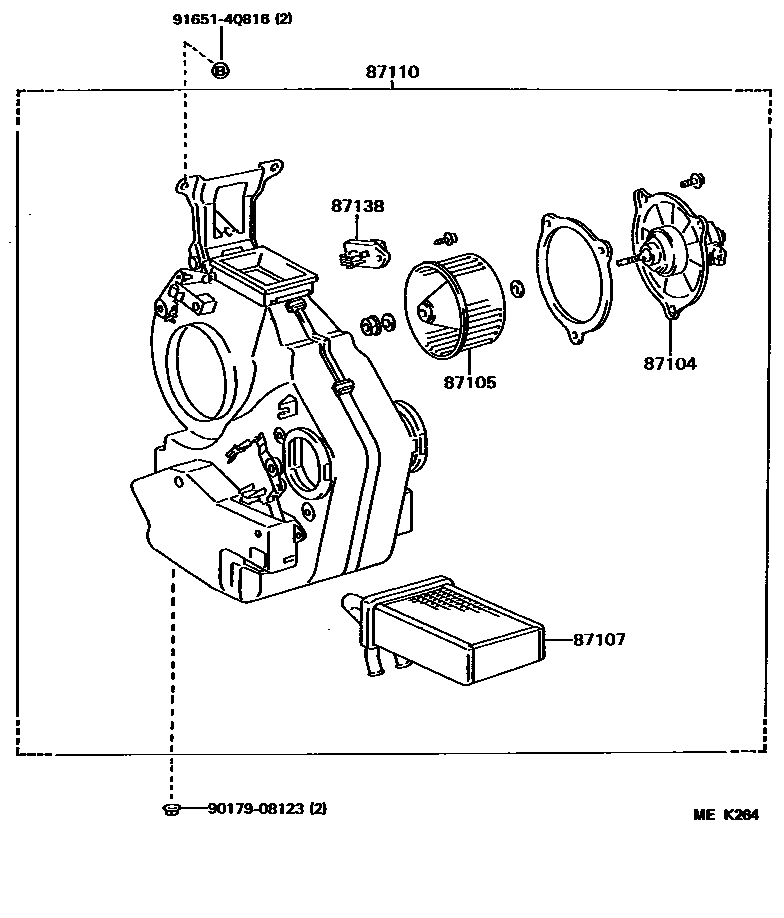

Toyota HIACE TRUCK — HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95404iLH8#,9#,YH81198708-199505

87105FAN SUB-ASSY, HEATER BLOWER

main87105-16020iLH8#,9#,YH81198708-199505

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95406iLH8#,9#,YH81198708-199505

main87107-95407iLH8#,9#,YH81198708-199505

87110HEATER ASSY

main87110-95432iLH8#,9#,YH81198708-199505

sub87110-95433

main87110-95433iLH8#,9#,YH81198708-199505

87138RESISTOR, HEATER BLOWER

main87138-26020iLH8#,9#,YH81199110-199505

main87138-95409iLH8#,9#,YH81198708-199110

9017908123

main90179-08123

9165140816

main91651-40816

7 parts on this diagram · 2 diagrams in section
