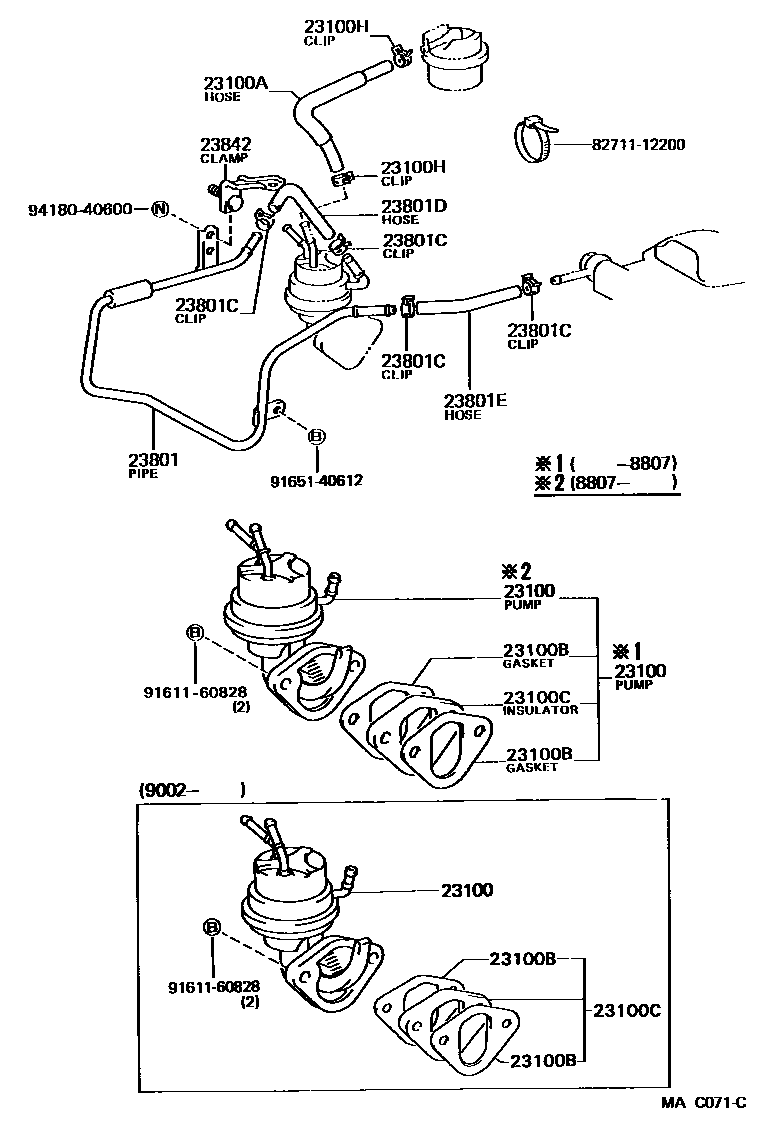

Toyota HIACE TRUCK — FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-73031i2Y..YH81198807-199505

main23100-79055i2Y..YH81198708-198807

sub23100-73031

sub90923-06014

23100AHOSE, FUEL

main90447-12022i2Y..YH81198708-199505

23100BGASKET, FUEL PUMP

main90923-05016i2Y..YH81198708-198912

sub90923-06010

sub90923-06014

main90923-05022i2Y..YH81198912-199505

23100CINSULATOR, FUEL PUMP

main90923-06008i2Y..YH81198708-199002

sub90923-06010

sub90923-06014

main90923-06014i2Y..YH81199002-199505

23100HCLIP(FOR FUEL HOSE)

main96132-30600i2Y..YH81198708-199303

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i2Y..YH81198708-199505

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i2Y..YH81198708-199505

sub96132-51100

23801DHOSE, FUEL PIPE, NO.1

main95333-06010i2Y..YH81198708-199505

23801EHOSE, FUEL PIPE, NO.2

main95333-06010i2Y..YH81198708-199505

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-71011i2Y..YH81198708-198801

sub23841-71012

sub91511-60840

main23841-71012i2Y..YH81198801-199505

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160828

main91611-60828

9165140612

main91651-40612

9418040600

main94180-40600

14 parts on this diagram · 1 diagram in section
