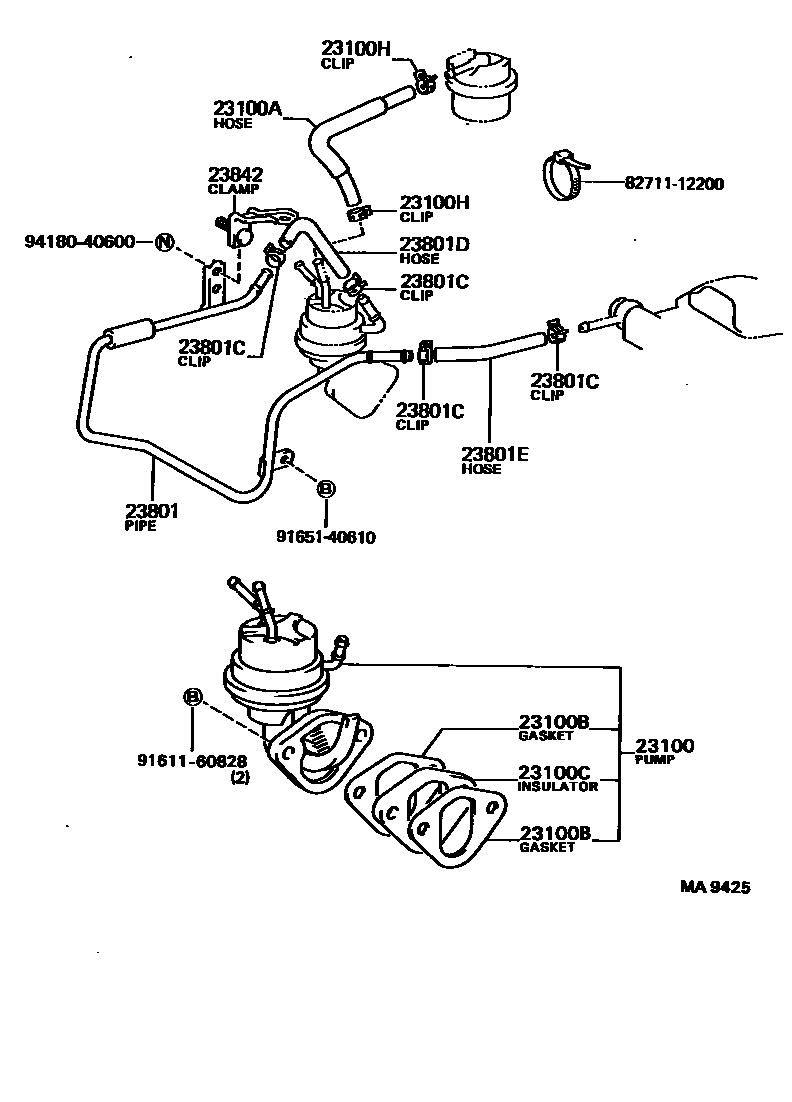

Toyota HIACE TRUCK — FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-79015i1YJ..YH80198508-198708

sub23100-79016

23100AHOSE, FUEL

main90447-12022i1YJ..YH80198508-198708

23100BGASKET, FUEL PUMP

main90923-05005i1YJ..YH80198508-198708

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i1YJ..YH80198508-198708

sub90923-06009

23100HCLIP(FOR FUEL HOSE)

main96132-30600i1YJ..YH80198508-198708

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71011i1YJ..YH80198508-198708

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i1YJ..YH80198508-198708

sub96132-51100

23801DHOSE, FUEL PIPE, NO.1

main95332-06010i1YJ..YH80198508-198701

sub95333-06010

main95333-06010i1YJ..YH80198701-198708

23801EHOSE, FUEL PIPE, NO.2

main95332-06010i1YJ..YH80198508-198701

sub95333-06010

main95333-06010i1YJ..YH80198701-198708

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-71011i1YJ..YH80198508-198708

sub23841-71012

sub91511-60840

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160828

main91611-60828

9165140610

main91651-40610

9418040600

main94180-40600

14 parts on this diagram · 1 diagram in section
