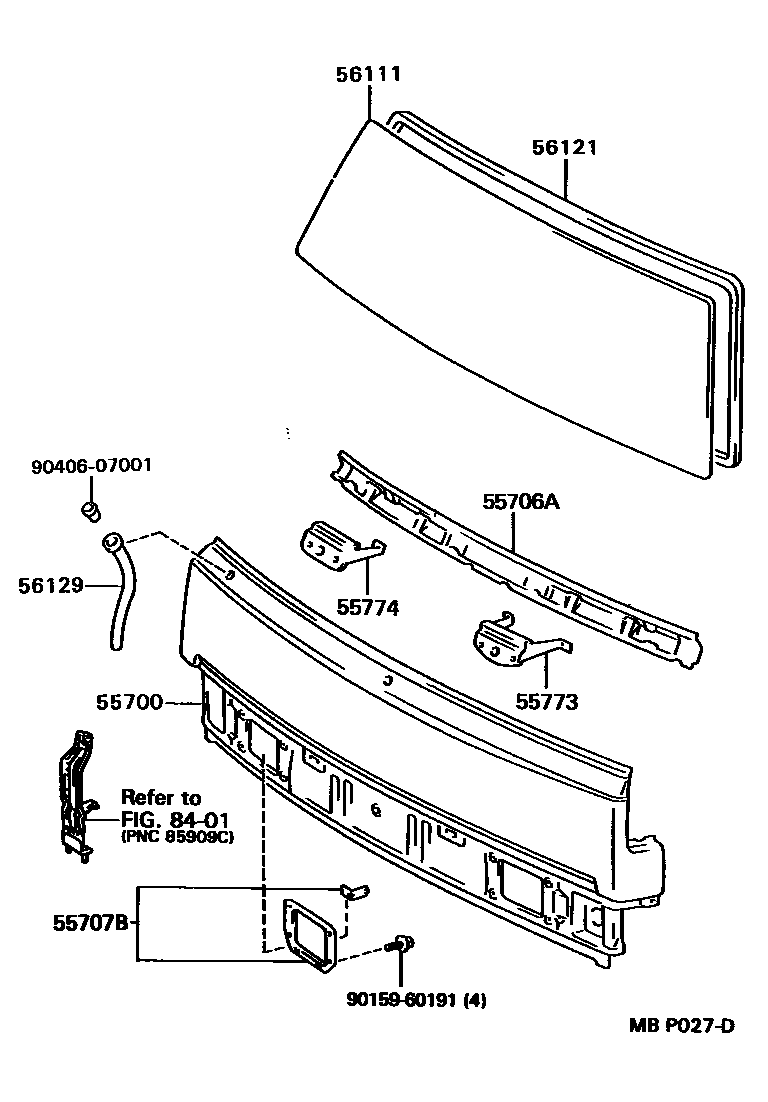

Toyota HIACE TRUCK — FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95A37iLH8#,9#,YH81199210-199505

main55701-95A38iLH8#,9#,YH81198708-199210

sub55701-95A37

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iLH8#,9#,YH81198708-199505

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iLH8#,9#,YH81198708-199505

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iLH8#,9#,YH81198708-199505

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iLH8#,9#,YH81198708-199505

56111GLASS, WINDSHIELD

main56111-37010iLH8#,9#,YH81199109-199505

main56111-37020iLH85..T2..IV;LH80..4FC..ST199109-199505

main56111-37020iLH80..4FC..WT;LH9#,YH81..T2,T3;LH80..5F..(T2,T3);LH85..(T2,T3)..CBU;LH8#,YH81..(T1,T3)..IV199109-199505

main56111-95416iLH8#,YH81198708-199109

sub56111-95417

56121WEATHERSTRIP, WINDSHIELD

main56121-95A06iLH8#,9#,YH81198708-199505

56129HOSE, WINDSHIELD DRAIN

main56129-95400iLH8#,9#,YH81198708-199505

sub56129-95J00

8401

9015960191

main90159-60191

9040607001

main90406-07001

11 parts on this diagram · 1 diagram in section
