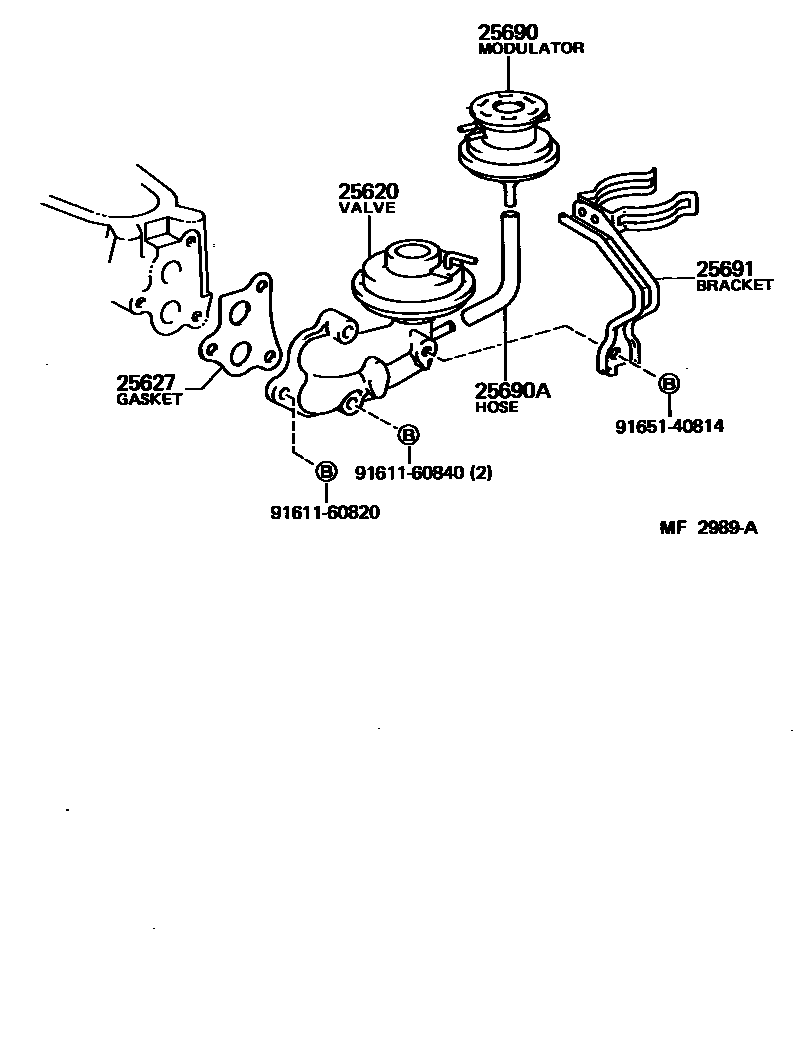

Toyota HIACE TRUCK — EXHAUST GAS RECIRCULATION SYSTEM

25620VALVE ASSY, EGR

main25620-71020i2Y..YH81198708-199505

25627GASKET, EGR VALVE

main25627-71010i2Y..YH81198708-198912

sub25627-71011

main25627-71011i2Y..YH81198912-199505

25690MODULATOR ASSY, EGR VACUUM

main25870-71011i2Y..YH81198708-199505

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11078i2Y..YH81198708-199505

sub90445-11130

25691BRACKET, EGR VACUUM MODULATOR

main25691-71030i2Y..YH81198708-199505

9161160820

main91611-60820

9161160840

main91611-60840

9165140814

main91651-40814

8 parts on this diagram · 1 diagram in section
