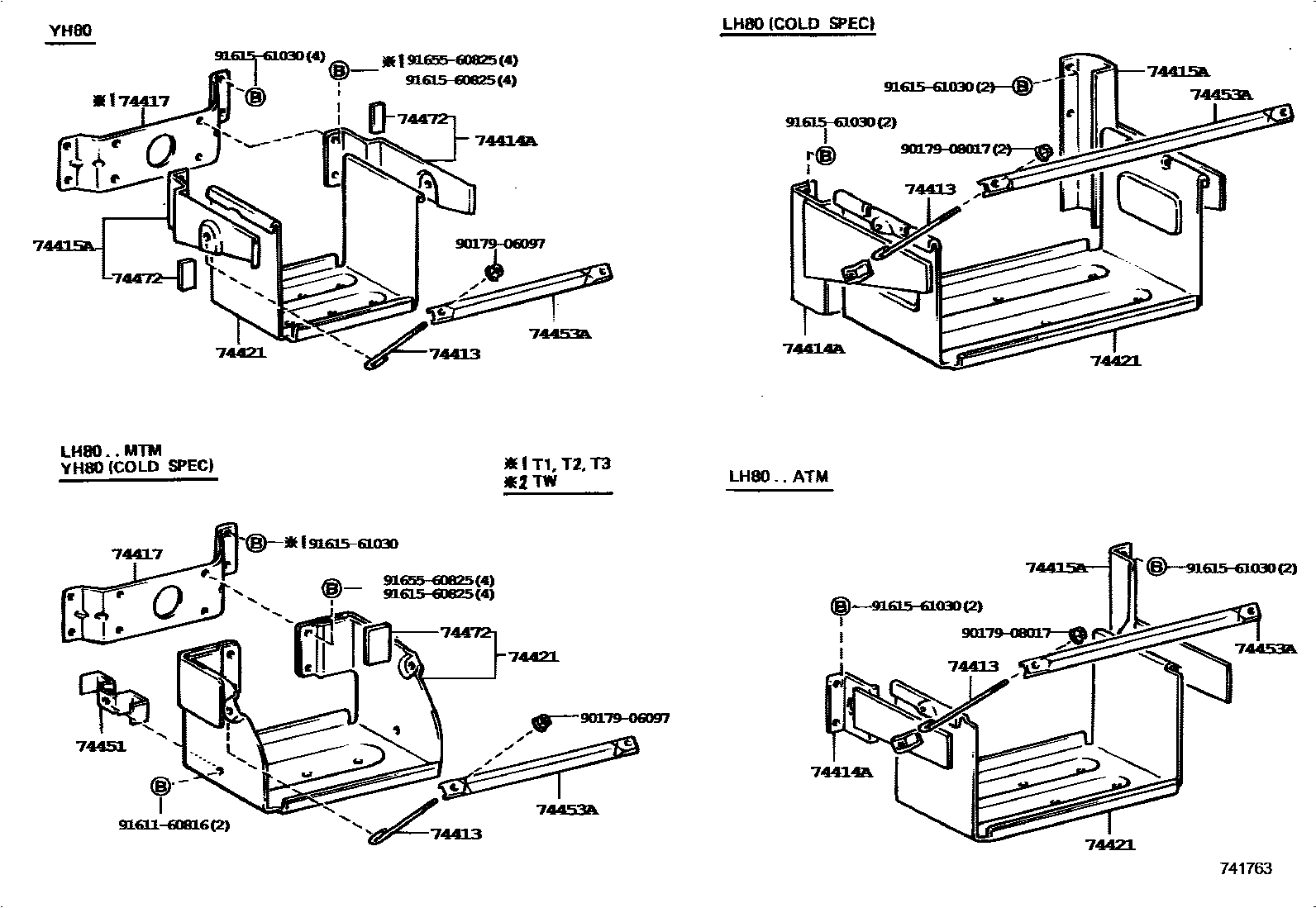

Toyota HIACE TRUCK — BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-25020iLH80,YH80..MTM198508-198708

main74451-36070iLH80..4FC198508-198708

COLD SPEC

74414ABRACKET, BATTERY, NO.1

main74401-26040iLH80..4FC198508-198708

main74401-26050iLH80..T1,T2,T3198508-198708

COLD SPEC

main74401-26070iLH80..TW198508-198708

COLD SPEC

main74411-25011iYH80198508-198708

74415ABRACKET, BATTERY, NO.2

main74402-26040iLH80..4FC198508-198708

main74402-26050iLH80198508-198708

COLD SPEC

main74412-25011iYH80198508-198708

74417BRACKET, BATTERY CARRIER

main74417-26050iLH80,YH80..MTM..(T1,T2,T3)198508-198708

74421HANGER, BATTERY

main74421-25020iLH80..5F198508-198708

COLD SPEC

sub74421-26020

main74421-26010iYH80198508-198708

main74421-36041iLH80198508-198708

COLD SPEC

main74421-36091iLH80..4FC198508-198708

74451PLATE, BATTERY CARRIER SUPPORT

main74451-25050iYH80198508-198708

COLD SPEC

74453ABAR, BATTERY SET PLATE

main74453-25080iYH80198508-198708

main74453-25090iLH80..5F198508-198708

COLD SPEC

main74453-25100iLH80..4FC198508-198708

main74453-36060iLH80198508-198708

COLD SPEC

74472PAD, BATTERY SIDE

main74472-25010iYH80198508-198708

main74472-25020iLH80..5F198508-198708

COLD SPEC

9017906097

main90179-06097

9017908017

main90179-08017

9161160816

main91611-60816

9161560825

main91615-60825

9161561030

main91615-61030

9165560825

main91655-60825

14 parts on this diagram · 1 diagram in section
