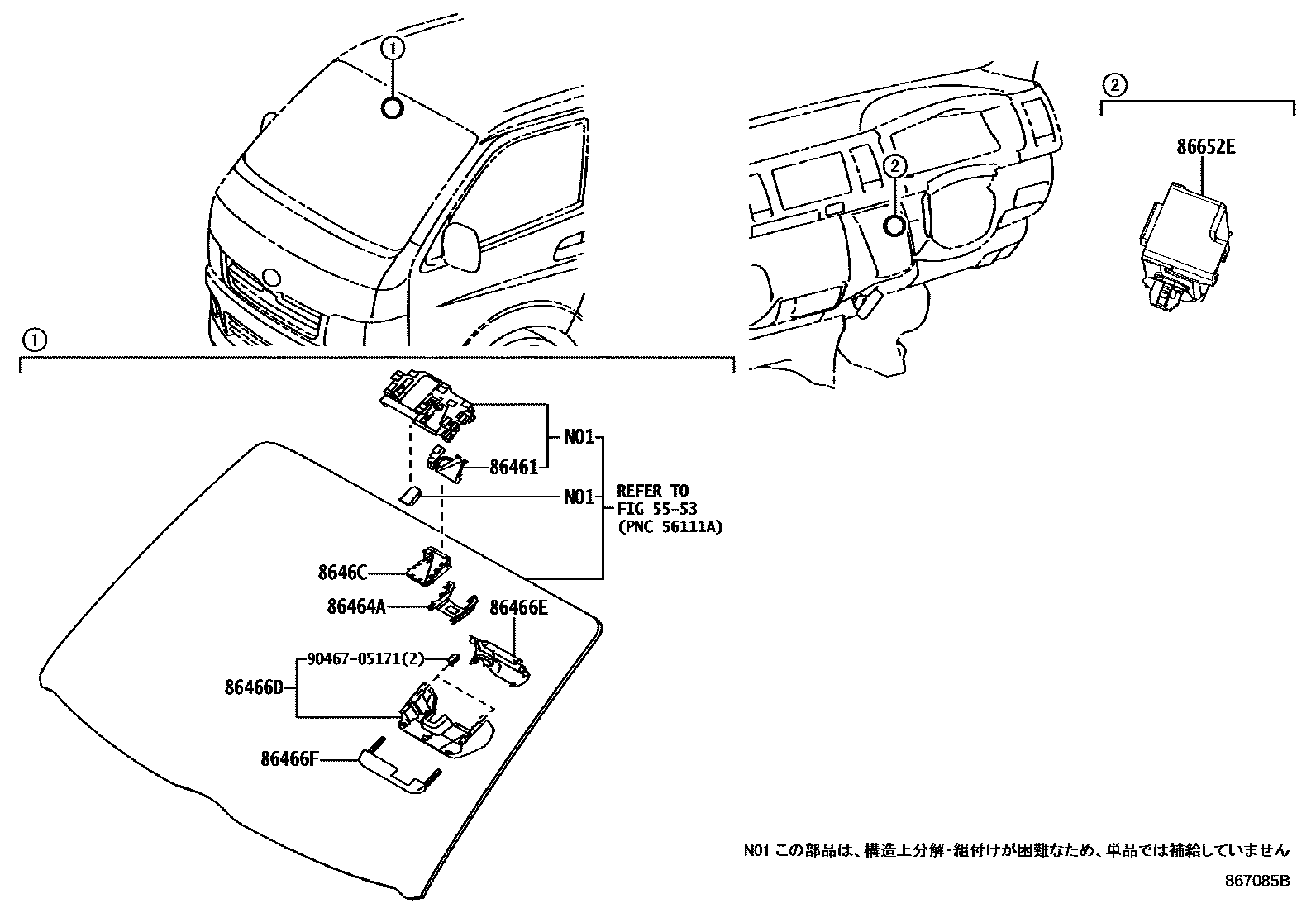

Toyota HIACE/REGIUSACE — PRE-COLLISION SYSTEM
5553COWL PANEL & WINDSHIELD GLASS
86461HOOD, FORWARD RECOGNITION
86464ALATCH, FORWARD RECOGNITION
86466DCOVER, FORWARD RECOGNITION, NO.1
main86466-26040iTRH214,219..4D..GL; TRH214,219..4D;GDH201,TRH200..SG;GDH201,TRH200..V1..SP;GDH206,211,22#,TRH211,216,22#..03S,05S,06S,09S,10S,14S201712-202003
86466ECOVER, FORWARD RECOGNITION, NO.2
86466FCOVER, FORWARD RECOGNITION, NO.3
main86466-26060iGDH206..IV5;GDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..V1..SP..6FC;GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;GDH201,TRH214,219..(SMRF,SRF)..4D..(06S,09S,10S);GDH206,211,22#,TRH211,216,22#..05S,06S,09S,10S,14S; GDH206..SRF..5D..06S201712
8646CCAMERA, FORWARD RECOGNITION
main8646C-0L020iGDH206..IV5;GDH201..SRF..5D;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH201..SRF..4D..(06S,09S);GDH20#,TRH200..V1..SP..6FC;GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC; GDH206..SRF..5D..06S201712
86652EBUZZER, PRE-COLLISION CITY
9046705171
main90467-05171
9 parts on this diagram · 1 diagram in section
PRE-COLLISION SYSTEM for Toyota HIACE/REGIUSACE
This section contains 9 genuine Toyota parts for the PRE-COLLISION SYSTEM system of the Toyota HIACE/REGIUSACE. Key components include: COWL PANEL & WINDSHIELD GLASS, HOOD, FORWARD RECOGNITION, LATCH, FORWARD RECOGNITION, COVER, FORWARD RECOGNITION, NO.1, COVER, FORWARD RECOGNITION, NO.2.
