Toyota HIACE/REGIUSACE — PARTIAL ENGINE ASSEMBLY

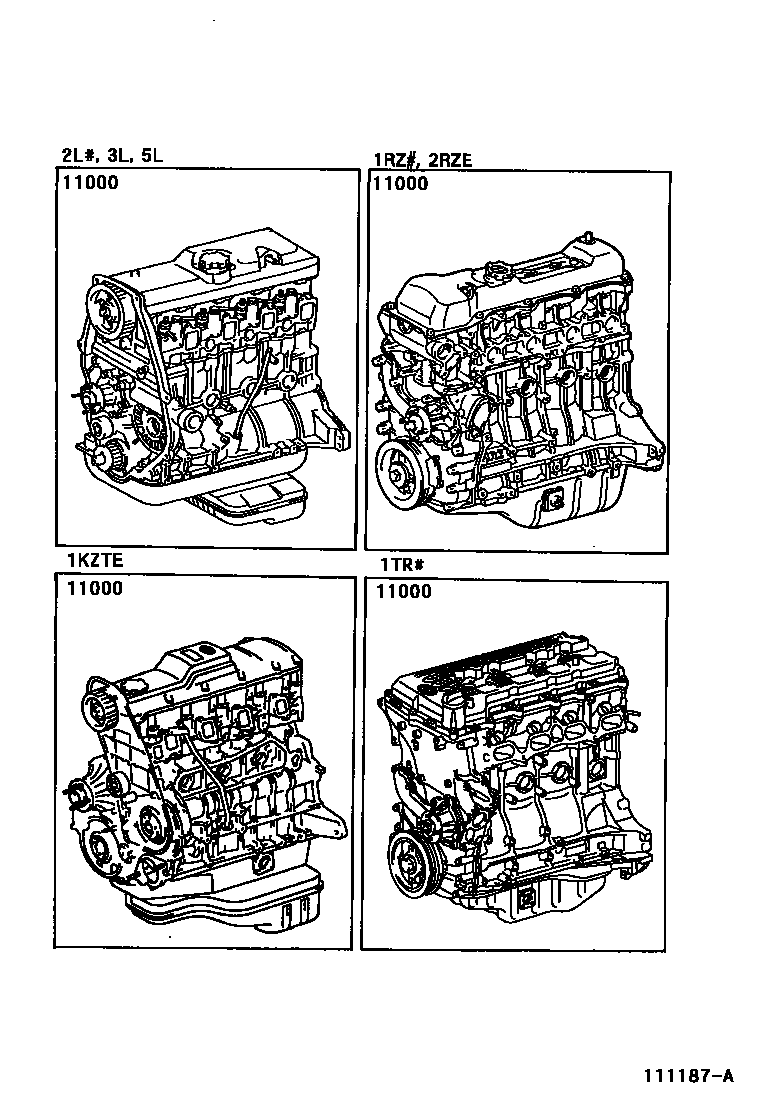

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-5B030i198908-199308

main19000-5B050i198908-199010

main19000-5B060i198908-199808

main19000-5B070i198908-199808

main19000-5B210i199010-199308

main19000-5B640i199907-200408

main19000-5B650i199907-200408

main19000-67040i199308-199508

main19000-67041i199508-199907

main19000-67050i199308-199505

main19000-67051i199505-199907

main19000-67150i199907-200005

main19000-67151i200005-200408

main19000-67160i199907-200005

main19000-67161i200005-200408

main19000-75010i198908-199305

main19000-75011i199305-199308

main19000-75040i198908-199305

main19000-75041i199305-199308

main19000-75060i198908-199307

main19000-75061i199307-199401

main19000-75062i199401-199508

main19000-75110i199308-199401

main19000-75111i199401-199508

main19000-75210i199907-200308

main19000-75250i199508-199907

main19000-75820i200308-200501

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota HIACE/REGIUSACE

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota HIACE/REGIUSACE. Key components include: ENGINE ASSY, PARTIAL.
