Toyota HIACE QUICK DELIVERY — SPARE WHEEL CARRIER

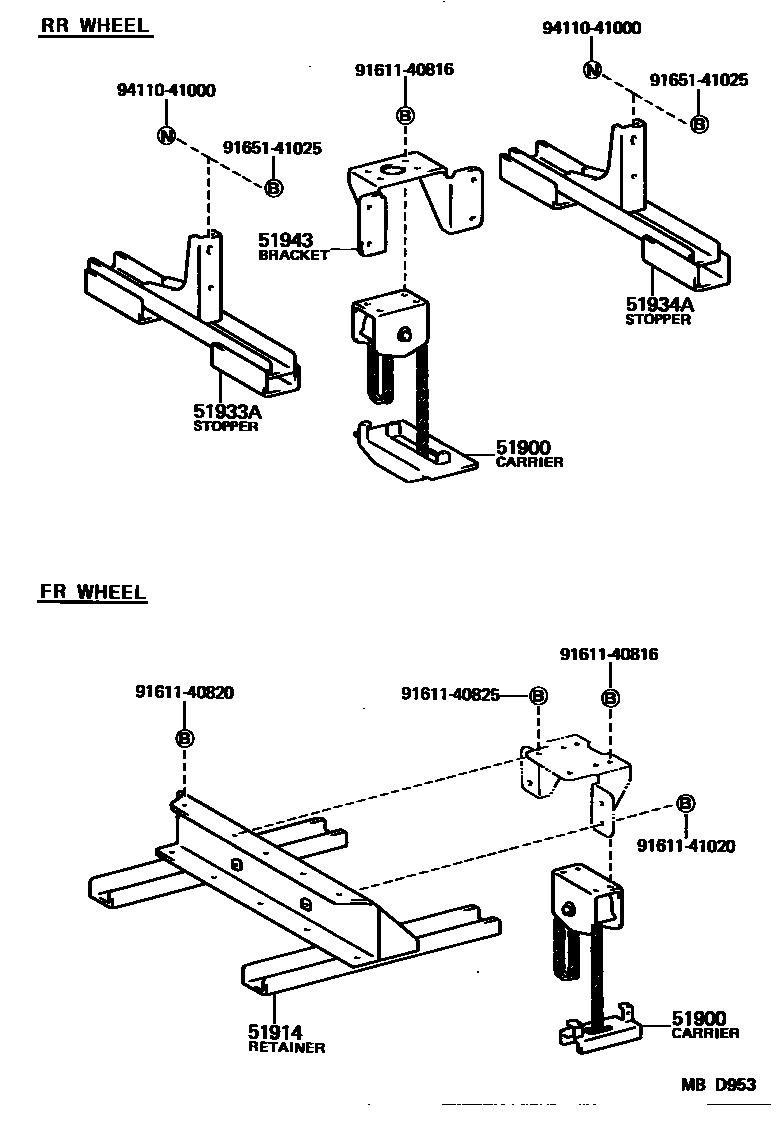

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-26050i198205-198507

RR

main51900-35070i198205-198211

FR

main51900-35090i198211-198507

FR

51914RETAINER, SPARE WHEEL CARRIER

main51907-26010i198205-198507

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-26200i198205-198507

51934ASTOPPER, SPARE WHEEL, NO.2

main51903-26200i198205-198507

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51944-26030i198205-198507

9161140816

main91611-40816

9161140820

main91611-40820

9161140825

main91611-40825

9161141020

main91611-41020

9165141025

main91651-41025

9411041000

main94110-41000

11 parts on this diagram · 1 diagram in section

SPARE WHEEL CARRIER for Toyota HIACE QUICK DELIVERY

This section contains 11 genuine Toyota parts for the SPARE WHEEL CARRIER system of the Toyota HIACE QUICK DELIVERY. Key components include: CARRIER ASSY, SPARE WHEEL, RETAINER, SPARE WHEEL CARRIER, STOPPER, SPARE WHEEL, NO.1, STOPPER, SPARE WHEEL, NO.2, BRACKET, SPARE WHEEL CARRIER, NO.1.
