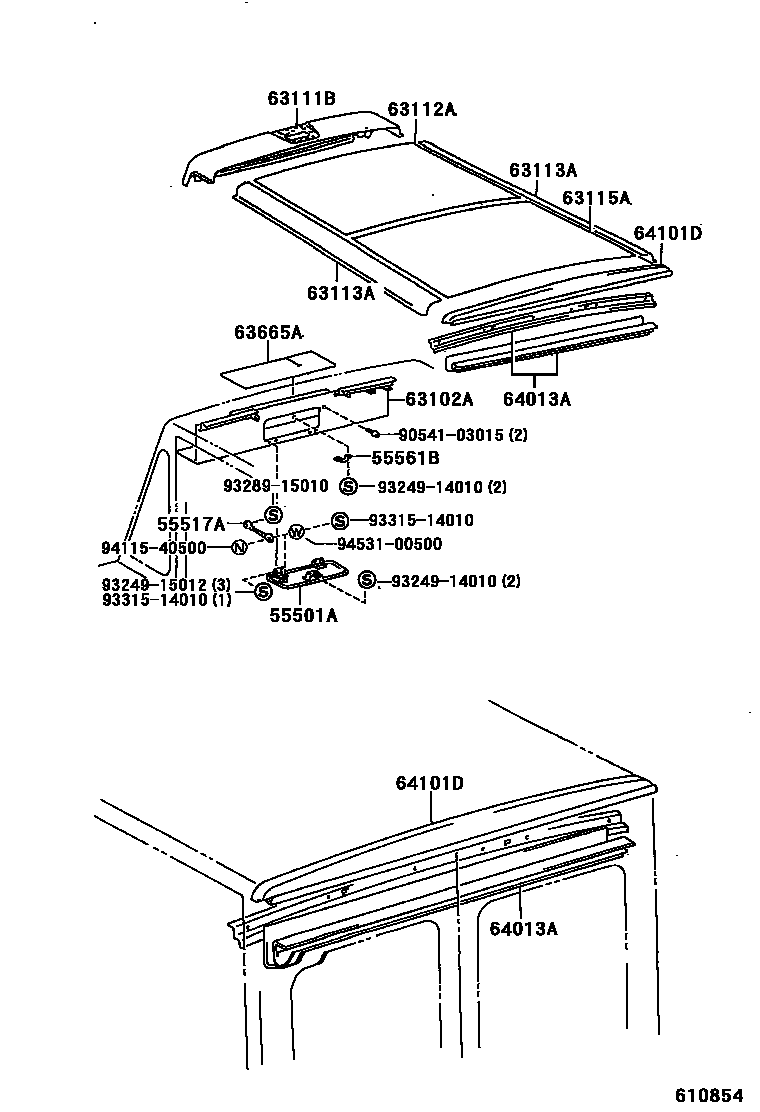

Toyota HIACE QUICK DELIVERY — ROOF PANEL & BACK PANEL
55501ADOOR SUB-ASSY, GLOVE COMPARTMENT
55517ASTOPPER, GLOVE COMPARTMENT DOOR
55561BSTRIKER, GLOVE COMPARTMENT DOOR LOCK
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W/GLOVE BOX
63111BPANEL, ROOF, NO.1
63113APANEL, ROOF, NO.3
63115APANEL, ROOF, NO.5
63665AMAT, ROOF CONSOLE BOX
64013ARAIL SUB-ASSY, BACK
W/COURTESY SWITCH
W/COURTESY SWITHCH,ROOM LAMP
64101DRAIL SUB-ASSY, UPPER BACK, OUTER
9054103015
main90541-03015
9324914010
main93249-14010
9324915012
main93249-15012
9328915010
main93289-15010
9331514010
main93315-14010
9411540500
main94115-40500
9453100500
main94531-00500
18 parts on this diagram · 2 diagrams in section
ROOF PANEL & BACK PANEL for Toyota HIACE QUICK DELIVERY
This section contains 32 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota HIACE QUICK DELIVERY. Key components include: DOOR SUB-ASSY, GLOVE COMPARTMENT, STOPPER, GLOVE COMPARTMENT DOOR, STRIKER, GLOVE COMPARTMENT DOOR LOCK, PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL.
