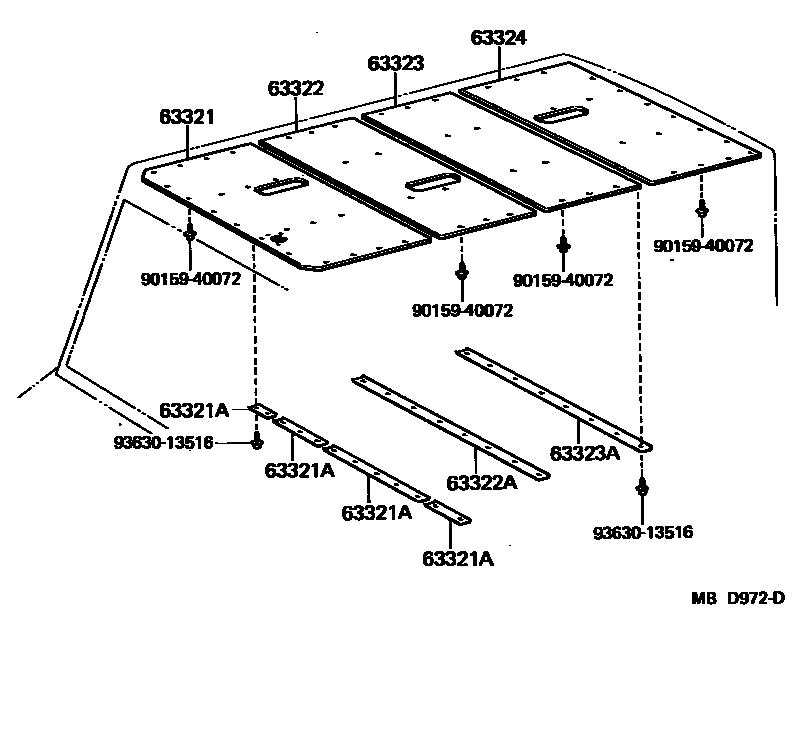

Toyota HIACE QUICK DELIVERY — ROOF HEADLINING & SILENCER PAD

63321BOARD, ROOF, NO.1

main63311-90D32i198205-198507

63321APLATE, ROOF HEADLINING SEAT, NO.1

main63367-90D00i198205-198507

L=220.5

main63635-90D00i198205-198507

L=329

main63636-90D00i198205-198507

L=615,5

main63637-90D00i198205-198507

L=65

63322BOARD, ROOF, NO.2

main63312-90D00i198205-198507

main63312-90D01i198205-198507

W/ROOM LAMP

main63312-90D02i198205-198507

W/SEPARATION DOOR

main63312-90D03i198205-198507

W/ROOM LAMP & SEPARATION DOOR

main63312-90D04i198310-198507

W/*SRD,RR DOOR

main63312-90D05i198401-198507

W/RR DOOR

main63312-90D06i198401-198507

W/RR DOOR,ROOM LAMP

main63312-90D07i198401-198507

W/*SRD,RR DOOR & ROOM LAMP

63322APLATE, ROOF HEADLINING SEAT, NO.2

main63365-90D00i198205-198507

L=1500

main63365-90D01i198310-198507

W/RR DOOR

63323BOARD, ROOF, NO.3

main63313-90D00i198205-198507

W/LAMP

main63313-90D01i198205-198507

main63313-90D02i198310-198507

W/RR DOOR

main63313-90D03i198401-198507

W/RR DOOR,ROOM LAMP

63323APLATE, ROOF HEADLINING SEAT, NO.3

main63365-90D00×2i198205-198507

L=1500

main63365-90D01i198310-198507

W/RR DOOR

63324BOARD, ROOF, NO.4

main63314-90D00i198205-198507

main63314-90D01i198205-198507

W/ROOM LAMP

main63314-90D02i198310-198507

W/RR DOOR,ROOM LAMP

main63314-90D03i198401-198507

W/RR DOOR

9015940072

main90159-40072

9363013516

main93630-13516

9 parts on this diagram · 1 diagram in section

ROOF HEADLINING & SILENCER PAD for Toyota HIACE QUICK DELIVERY

This section contains 9 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota HIACE QUICK DELIVERY. Key components include: BOARD, ROOF, NO.1, PLATE, ROOF HEADLINING SEAT, NO.1, BOARD, ROOF, NO.2, PLATE, ROOF HEADLINING SEAT, NO.2, BOARD, ROOF, NO.3.
