Toyota HIACE QUICK DELIVERY — HEATING & AIR CONDITIONING - SET

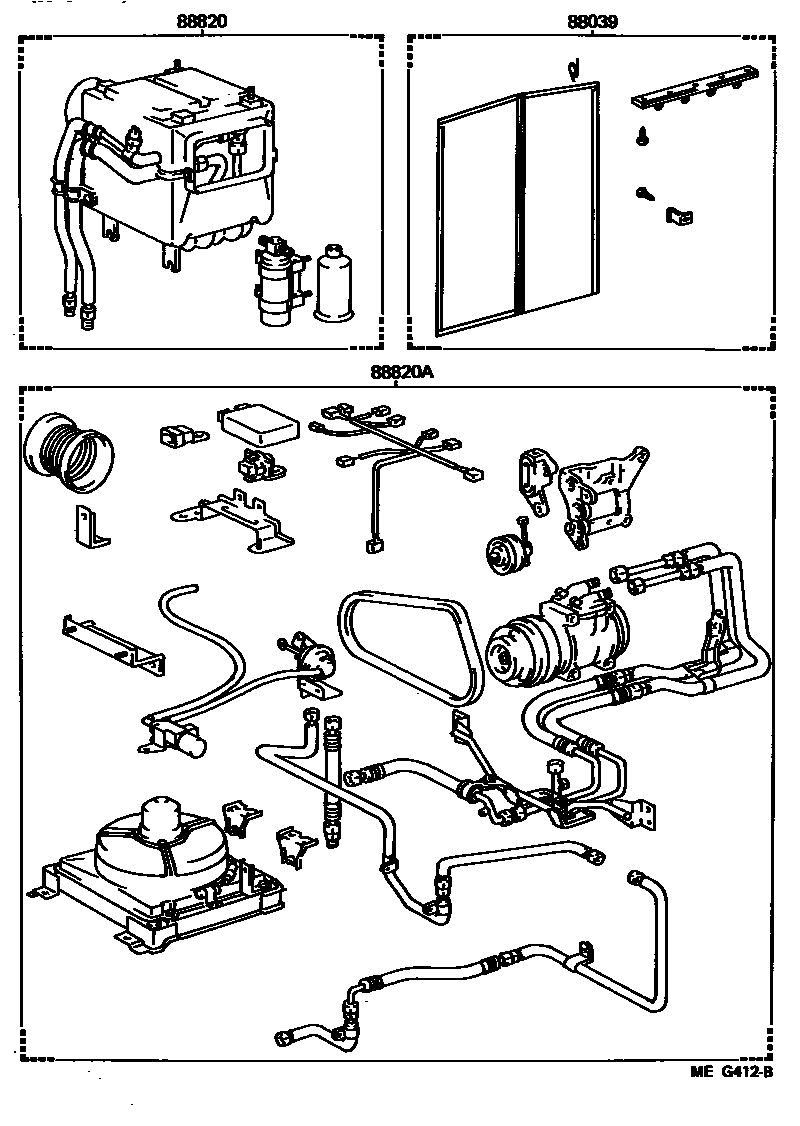

Parts diagram

88039ADDITIONAL KIT,AIRCONDITIONER

main88039-90D00i198603-198804

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-26060i199309-199505

main88820-26070i199309-199505

main88820-90D03i198804-199309

main88820-90D04i198508-198510

main88820-90D05i198510-198703

main88820-90D06i198804-198808

main88820-90D07i198808-199309

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-26260i199309-199505

main88830-26270i199309-199505

main88830-26280i199309-199505

main88830-26290i199309-199505

main88830-90D04i198508-198510

main88830-90D05i198510-198703

main88830-90D08i198703-198808

main88830-90D11i198711-198808

main88830-90D12i198808-199309

main88830-90D14i198808-199309

main88830-90D15i198808-198910

main88830-90D16i198808-198910

main88830-90D17i198910-199309

main88830-90D18i198910-199309

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota HIACE QUICK DELIVERY

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota HIACE QUICK DELIVERY. Key components include: ADDITIONAL KIT,AIRCONDITIONER, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2.
