Toyota HIACE QUICK DELIVERY — CONSOLE BOX & BRACKET

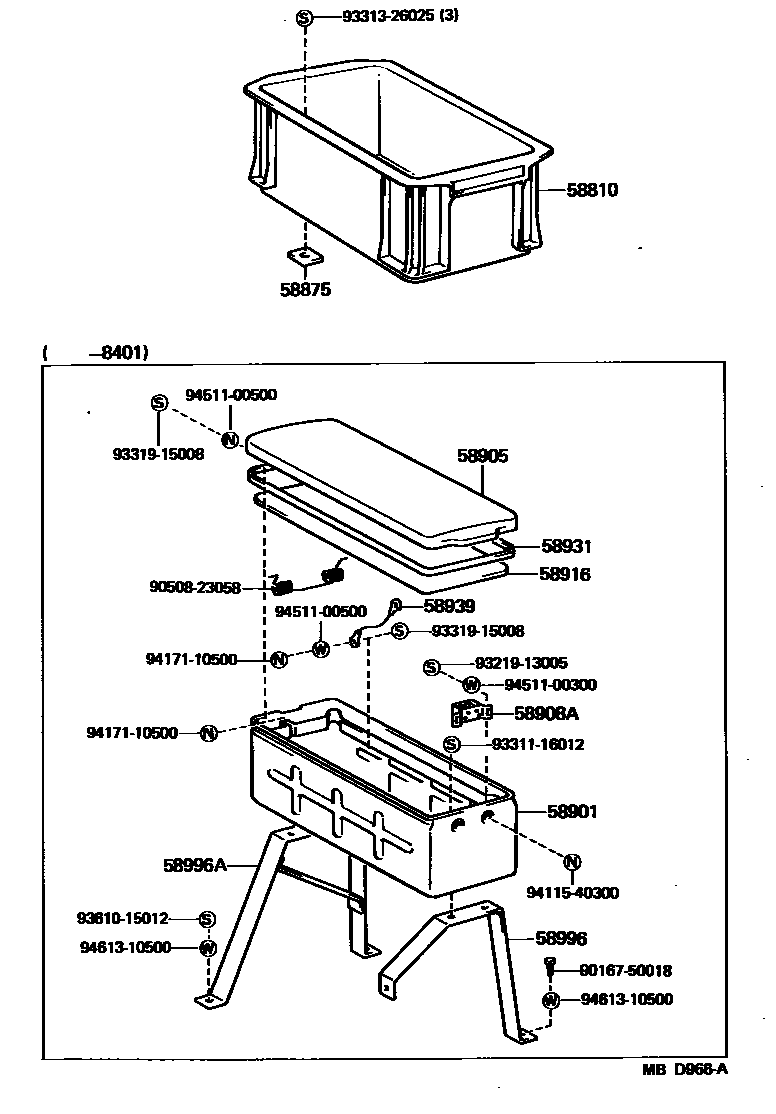

Parts diagram

58810CONSOLE ASSY

main58811-90D00i198401-198507

58875SPACER, CONSOLE BOX

main58875-90D00i198401-198507

58901PANEL SUB-ASSY, BOX

main58901-90D00i198205-198401

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-90D00i198205-198401

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58093-90500i198205-198301

58916MAT, BOX BOTTOM

main58916-90500i198205-198401

58931TRIM, BOX SIDE

main58931-90500i198205-198401

58939CABLE, BOX DOOR CHECK

main58939-90D00i198205-198401

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-90D00i198205-198401

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58902-90D00i198205-198401

9016750018

main90167-50018

9050823058

main90508-23058

9321913005

main93219-13005

9331116012

main93311-16012

9331326025

main93313-26025

9331915008

main93319-15008

9361015012

main93610-15012

9411540300

main94115-40300

9417110500

main94171-10500

9451100300

main94511-00300

9451100500

main94511-00500

9461310500

main94613-10500

22 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota HIACE QUICK DELIVERY

This section contains 22 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HIACE QUICK DELIVERY. Key components include: CONSOLE ASSY, SPACER, CONSOLE BOX, PANEL SUB-ASSY, BOX, DOOR SUB-ASSY, CONSOLE COMPARTMENT, LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR.
