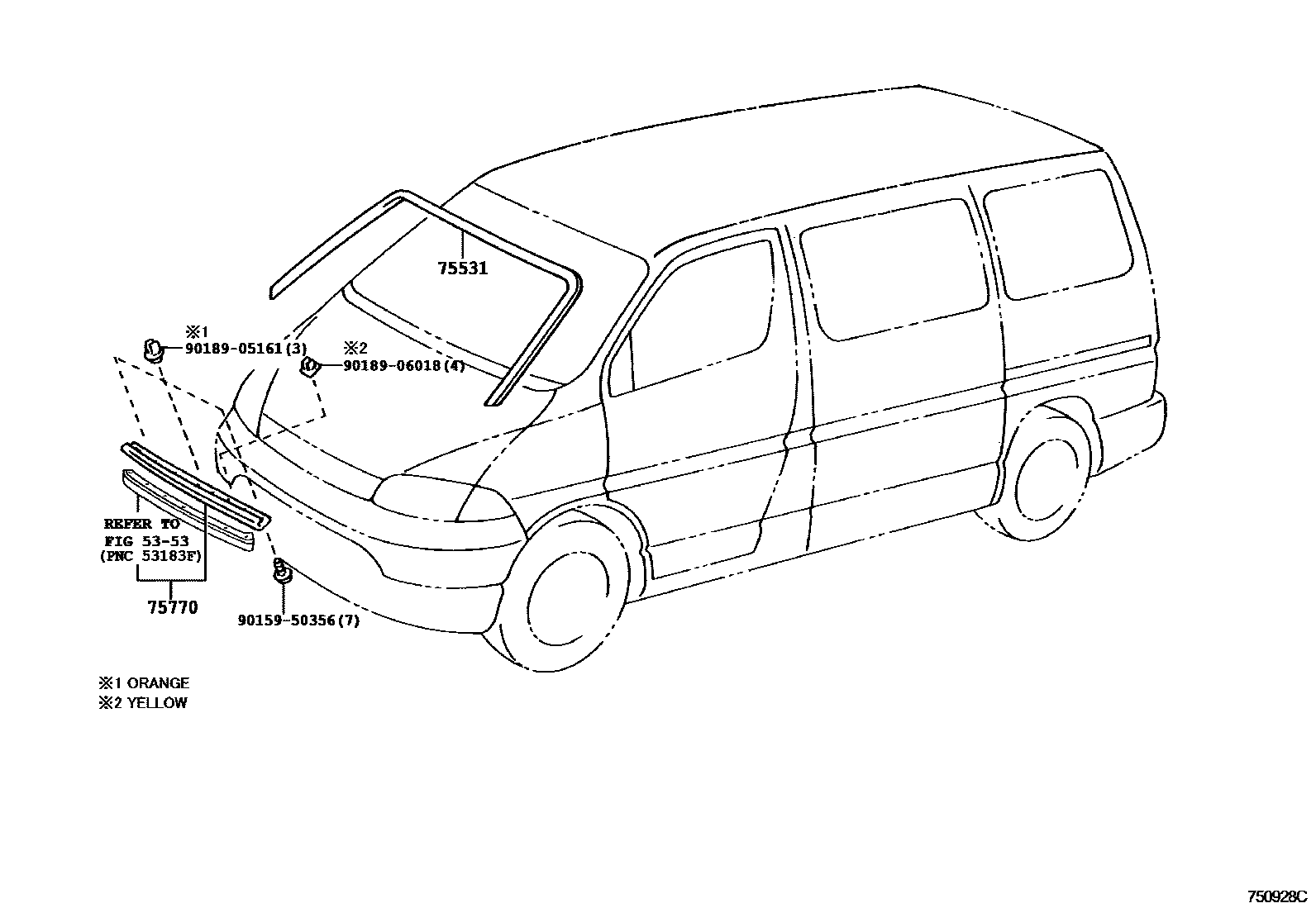

Toyota HIACE/HIACE S.B.V — MOULDING

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-26020i199708-199711

main75531-26021i199907-200108

main75531-26030i199508-199708

COLD AREA SPEC

75770MOULDING ASSY, HOOD, FRONT

main75770-26051i200108-200308

CHROME PLATED

main75770-26052i200308-200608

CHROME PLATED

main75770-26090i200108-200308

GRAY

main75770-26091i200308-200311

GRAY

main75770-26100-A0i200608-200808

WHITE,058

main75770-26100-B0i200608-200808

SILVER M.M.,1E7

main75770-26100-D0i200608-200808

RED,3L5

main75770-26100-G0i200608-200808

DK.GREEN M.M.,6S3

main75770-26100-J0i200608-200808

BLUE,8E5

main75770-26100-J1i200608-200808

DK.BLUE M.M.,8P4

main75770-26110i200808

9015950356

main90159-50356

9018905161

main90189-05161

9018906018

main90189-06018

6 parts on this diagram · 1 diagram in section

MOULDING for Toyota HIACE/HIACE S.B.V

This section contains 6 genuine Toyota parts for the MOULDING system of the Toyota HIACE/HIACE S.B.V. Key components include: HOOD & FRONT FENDER, MOULDING, WINDSHIELD, OUTER UPPER, MOULDING ASSY, HOOD, FRONT.
