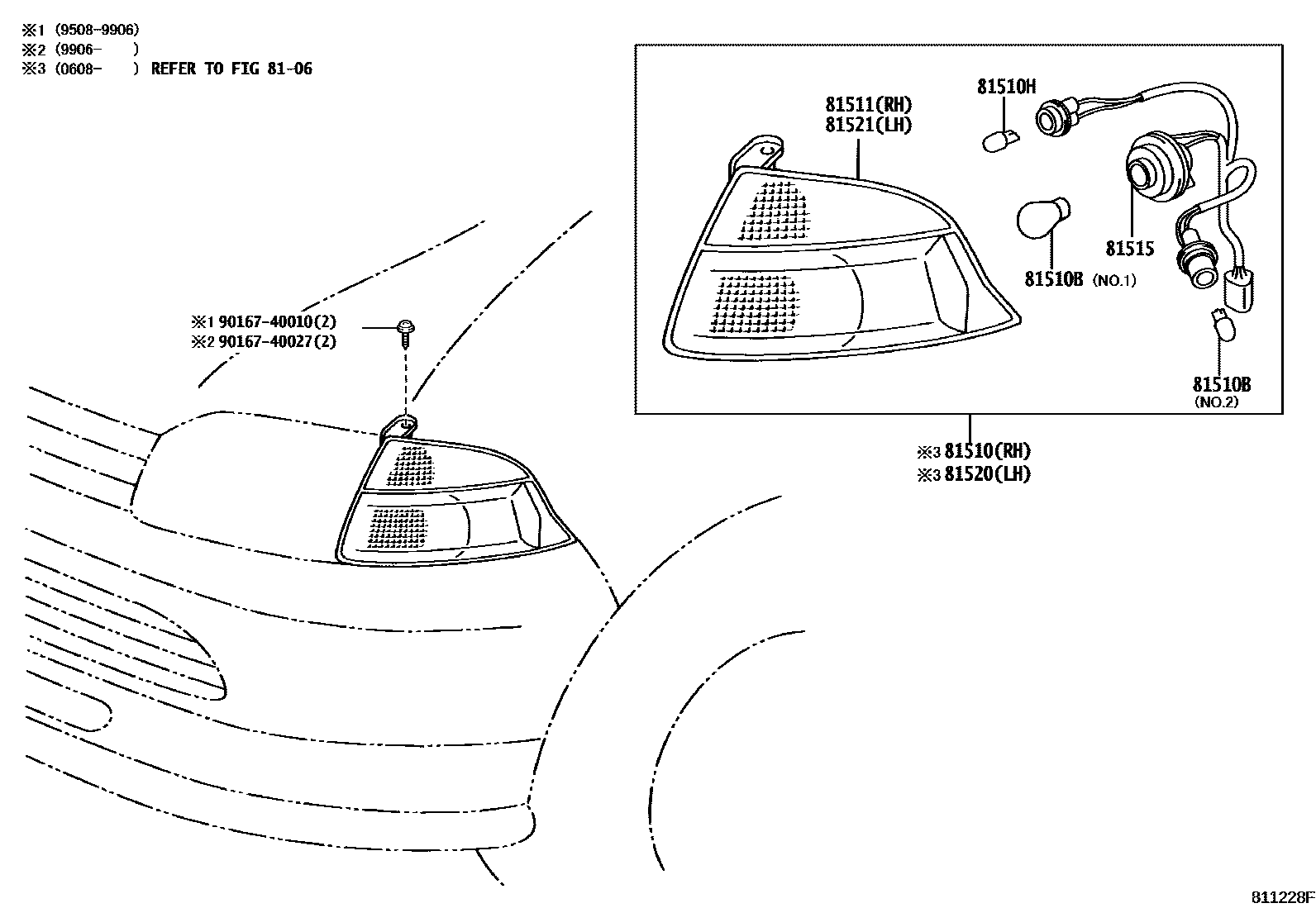

Toyota HIACE/HIACE S.B.V — FRONT TURN SIGNAL LAMP

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-26100i199907-200608

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2i199907-200608

12V 21W,NO.1

main99132-12050×2i199508-199910

12V 5W,NO.2

81510HBULB (FOR FRONT CLEARANCE LAMP)

main99132-12050×2i199508-199910

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-26100i199508-199910

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-26100×2i199508-199910

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-26100i199508-199910

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-26100i199508-199910

9016740010

main90167-40010

9016740027

main90167-40027

10 parts on this diagram · 1 diagram in section

FRONT TURN SIGNAL LAMP for Toyota HIACE/HIACE S.B.V

This section contains 10 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota HIACE/HIACE S.B.V. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), BULB (FOR FRONT CLEARANCE LAMP), LENS, FRONT TURN SIGNAL LAMP, RH.
