Toyota HEAVY DUTY TRUCK — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

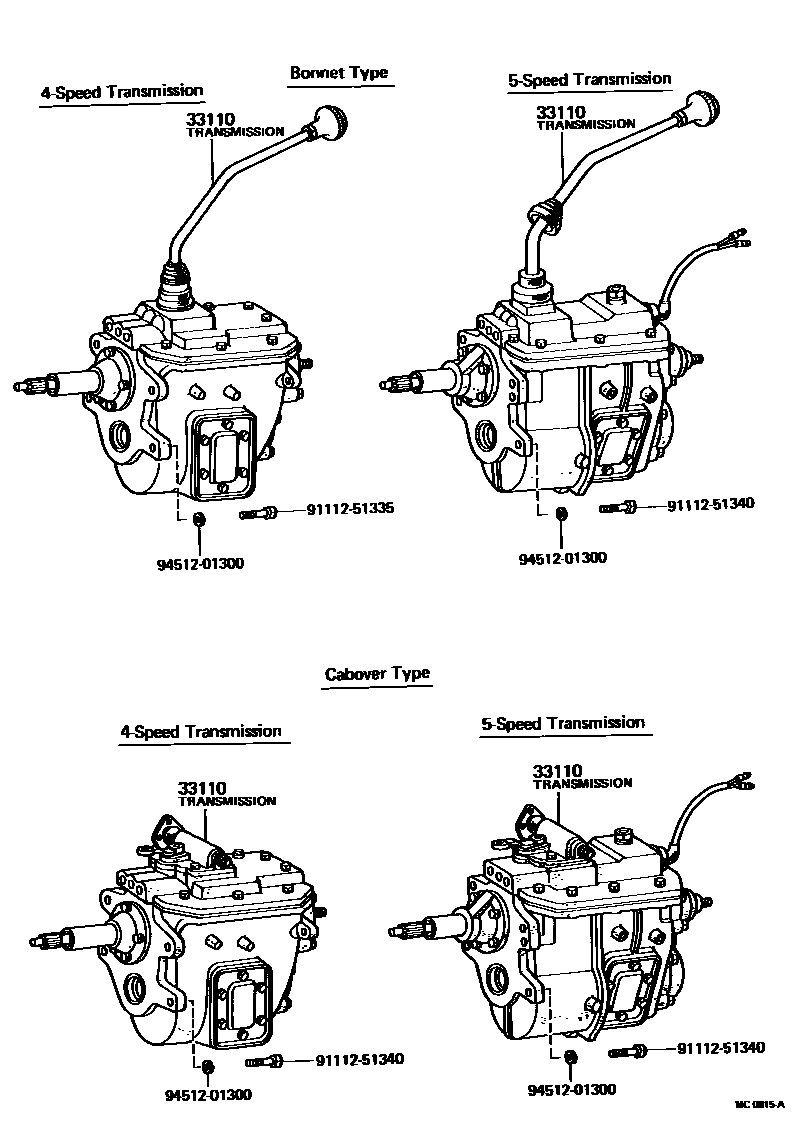

Parts diagram
33110TRANSMISSION ASSY, MANUAL
main33110-55140i196903-197002
SMG R=21:6
main33110-55141i197404-197704
SMG R=21:6,W/8.25-20 TIRE
main33110-55142i197704-197803
SMG R=21:6,W/8.25-20 TIRE
main33110-55143i197803-198002
SMG R=21:6,W/8.25-20 TIRE
main33110-55144i198002-198207
SMG R=21:6,W/8.25-20 TIRE
main33110-55260i196903-197002
SMG R=18:6
main33110-55261i197002-197403
SMG R=18:6
main33110-55262i197404-197704
SMG R=17:6
main33110-55263i197704-197803
SMG R=17:6
main33110-55264i197803-198002
SMG R=17:6
main33110-55265i198002-200112
SMG R=17:6
main33110-55280i196903-197002
SMG R=22:6
main33110-55300i196903-197002
SMG R=18:6
main33110-55301i197002-197403
SMG R=18:6
main33110-55302i197404-197704
SMG R=17:6
main33110-55303i197704-197803
SMG R=17:6
main33110-55304i197803-198002
SMG R=17:6
main33110-55305i198002-200112
SMG R=17:6
main33110-55360i196903-197002
SMG R=18:6
main33110-55361i197002-197403
SMG R=18:6
main33110-55362i197404-197704
SMG R=17:6
main33110-55363i197704-197803
SMG R=17:6
main33110-55364i197803-198002
SMG R=17:6
main33110-55365i198002-200112
SMG R=17:6
main33110-55370i196903-197002
SMG R=18:6
main33110-55371i197002-197403
SMG R=18:6
main33110-55372i197404-197704
SMG R=17:6
main33110-55373i197704-197803
SMG R=17:6
main33110-55374i197803-198002
SMG R=17:6
main33110-55375i198002-200112
SMG R=17:6
main33110-55390i196903-197002
SMG R=22:6
main33110-55481i197002-197403
SMG R=22:6
main33110-55482i198002-198207
SMG R=22:6,W/7.50-20 TIRE
main33110-55531i197404-198002
SMG R=22:6,W/7.50-20 TIRE
main33110-55532i198002-198207
SMG R=22:6,W/7.50-20 TIRE
main33110-55620i196903-197002
SMG R=21:6
main33110-55680i196903-197002
SMG R=21:6
main33110-55690i196903-197002
SMG R=20:6,W/9.00-20 TIRE
main33110-55711i197404-197704
SMG R=21:6,W/8.25-20 TIRE
main33110-55712i198002-198207
SMG R=21:6,W/8.25-20 TIRE
main33110-55721i197501-198002
SMG R=20:6,W/9.00-20 TIRE
main33110-55722i198002-198207
SMG R=20:6,W/9.00-20 TIRE
main33110-55730i196903-197002
SMG R=20:6,W/9.00-20 TIRE
main33110-55731i197002-197704
SMG R=21:6,W/8.25-20 TIRE
main33110-55732i198002-198207
SMG R=21:6,W/8.25-20 TIRE
main33110-55790i196903-197002
SMG R=18:6
main33110-55791i197404-197704
SMG R=18:6,W/7.50-20 TIRE
main33110-55792i197704-197803
SMG R=18:6,W/7.50-20 TIRE
main33110-55793i197803-198002
SMG R=18:6,W/7.50-20 TIRE
main33110-55794i198002-198207
SMG R=18:6,W/7.50-20 TIRE
main33110-55810i196903-197002
SMG R=15:6
main33110-55811i197404-197704
SMG R=15:6
main33110-55812i197704-197803
SMG R=15:6
main33110-55813i197803-198002
SMG R=15:6
main33110-55814i198002-200112
SMG R=15:6
main33110-55820i196903-197002
SMG R=15:6
main33110-55821i197002-197403
SMG R=15:6
main33110-55850i196903-197002
SMG R=15:6
main33110-55851i197002-197403
SMG R=15:6
main33110-55852i197704-197803
SMG R=15:6
main33110-55853i197803-198002
SMG R=15:6
main33110-55854i198002-200112
SMG R=15:6
main33110-56120i196903-197002
SMG R=18:6
main33110-56121i197002-197105
SMG R=18:6
main33110-96518i196903-197002
SMG R=18:6
main33110-96519i197002-197212
SMG R=18:6
main33110-96524i196903-197002
SMG R=18:6
main33110-96525i197002-197212
SMG R=18:6
main33110-96535i196903-197002
SMG R=18:6
main33110-96536i196903-197002
SMG R=18:6
main33110-96537i197002-197212
SMG R=18:6
main33110-96538i197002-197212
SMG R=18:6
main33110-96544i197212-197403
SMG R=18:6
main33110-96547i197212-197703
SMG R=18:6
main33110-96550i197212-197403
SMG R=18:6
main33110-96551i197212-197703
SMG.R=18:6
main33110-96556i197404-197703
SMG R=17:6
main33110-96557i197404-197703
SMG R=17:6
main33120-55030i196903-197002
SMG R=15:6
main33120-55031i197002-197403
SMG R=15:6
main33120-55040i196903-197002
SMG R=18:6
main33120-55041i197002-197403
SMG R=18:6
main33120-55050i196903-197002
SMG R=22:6
main33120-55051i197002-197403
SMG R=22:6
main33120-55060i196903-197002
SMG R=21:6
main33120-55061i197002-197704
SMG R=21:6,W/8.25-20 TIRE
main33120-55062i197704-197803
SMG R=21:6,W/8.25-20 TIRE
main33120-55063i197803-198002
SMG R=21:6,W/8.25-20 TIRE
main33120-55064i198002-198207
SMG R=21:6,W/8.25-20 TIRE
main33120-55070i196903-197002
SMG R=22:6
main33120-55071i197002-197704
SMG R=22:6,W/7.50-20 TIRE
main33120-55072i197704-197803
SMG R=22:6,W/7.50-20 TIRE
main33120-55073i197803-198002
SMG R=22:6,W/7.50-20 TIRE
main33120-55074i198002-198207
SMG R=22:6,W/7.50-20 TIRE
main33120-55080i196903-197002
SMG R=20:6,W/9.00-20 TIRE
main33120-55081i197002-197704
SMG R=20:6,W/9.00-20 TIRE
main33120-55082i197704-197803
SMG R=20:6,W/9.00-20 TIRE
main33120-55083i197803-198002
SMG R=20:6,W/9.00-20 TIRE
main33120-55084i198002-198207
SMG R=20:6,W/9.00-20 TIRE
main33120-55090i196903-197002
SMG R=20:6,W/9.00-20 TIRE
main33120-55091i197002-197704
SMG R=20:6,W/9.00-20 TIRE
main33120-55092i197704-197803
SMG R=20:6,W/9.00-20 TIRE
main33120-55093i197803-198002
SMG R=20:6,W/9.00-20 TIRE
main33120-55094i198002-198207
SMG R=20:6,W/9.00-20 TIRE
main33120-55100i196903-197002
SMG R=17:6,W/9.00-20 TIRE
main33120-55101i197002-197403
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55102i197704-197803
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55103i197803-198002
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55104i198002-198207
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55110i196903-197002
SMG R=17:6,W/9.00-20 TIRE
main33120-55111i197404-197704
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55112i197704-197803
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55113i197803-198002
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55114i198002-198207
SMG R=17:6,W/8.25 OR 9.00 TIRE
main33120-55120i196903-197002
SMG R=14:6,W/9.00-20 TIRE
main33120-55121i197002-197403
SMG R=14:6,W/9.00-20 TIRE
main33120-55130i196903-197002
SMG R=14:6,W/9.00-20 TIRE
main33120-55131i197002-197403
SMG R=14:6,W/9.00-20 TIRE
main33120-55140i196903-197002
SMG R=14:6,W/9.00-20 TIRE
main33120-55141i197002-197403
SMG R=14:6,W/9.00-20 TIRE
main33120-55150i196903-197002
SMG R=14:6,W/9.00-20 TIRE
main33120-55151i197002-197403
SMG R=14:6,W/9.00-20 TIRE
main33120-55200i198308-200112
SMG R=20:6,W/DIFF R=6,571
main33120-55220i197404-197501
SMG R=20:6
main33120-55221i198002-198207
SMG R=20:6,W/9.00-20 TIRE
main33120-55230i197501-197704
SMG R=22:6,W/7.50-20 TIRE
main33120-55231i197704-197803
SMG R=22:6,W/7.50-20 TIRE
main33120-55232i197803-198002
SMG R=22:6,W/7.50-20 TIRE
main33120-55233i198002-198207
SMG R=22:6,W/7.50-20 TIRE
main33120-55240i197501-197704
SMG R=18:6,W/7.50-20 TIRE
main33120-55241i197704-197803
SMG R=18:6,W/7.50-20 TIRE
main33120-55242i197803-198002
SMG R=18:6,W/7.50-20 TIRE
main33120-55243i198002-198207
SMG R=18:6,W/7.50-20 TIRE
9111251335
main91112-51335
9111251340
main91112-51340
9451201300
main94512-01300

4 parts on this diagram · 1 diagram in section

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM) for Toyota HEAVY DUTY TRUCK

This section contains 4 genuine Toyota parts for the TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM) system of the Toyota HEAVY DUTY TRUCK. Key components include: TRANSMISSION ASSY, MANUAL.
