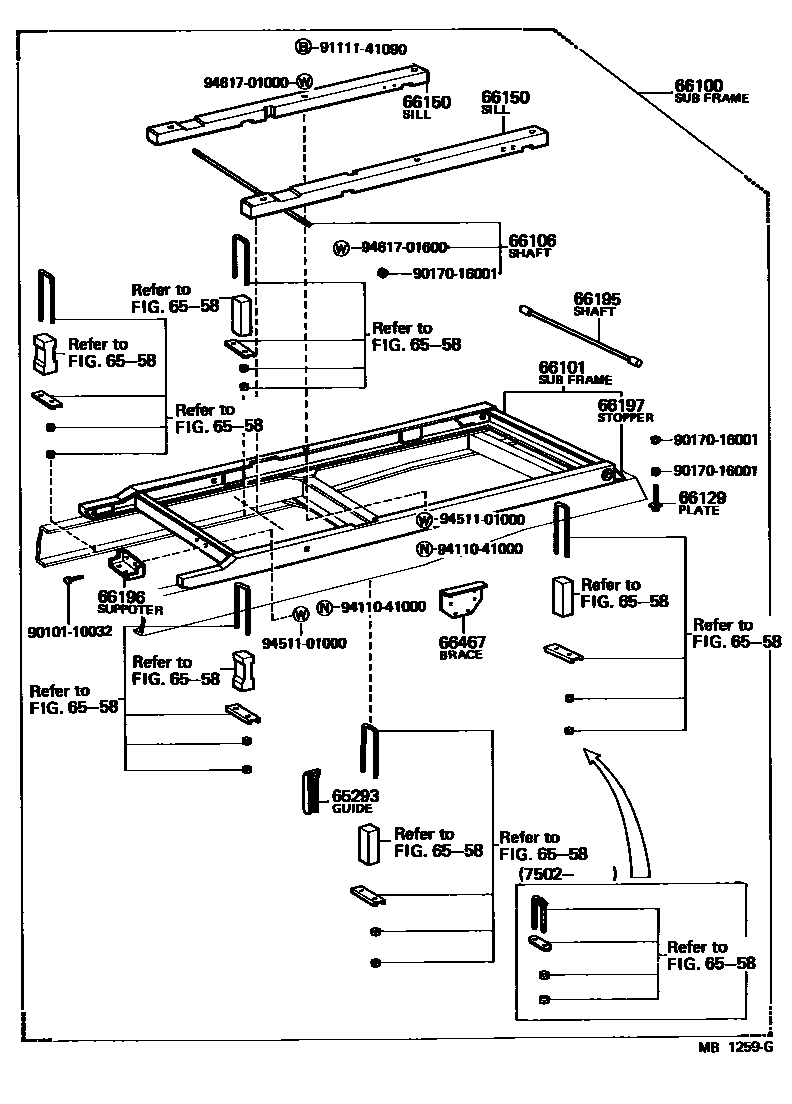

Toyota HEAVY DUTY TRUCK — REAR BODY SUB FRAME
65293GUIDE, VESSEL
6558REAR BODY MOUNTING
66100SUB-FRAME ASSY
66101SUB-FRAME SUB-ASSY
66106SHAFT, SUB-FRAME
66129PLATE, SUB-FRAME REAR SET
66150SILL ASSY, WOOD
RH
RH
RH
RH
LH
LH
LH
LH
66195SHAFT, HINGE
66196SUPPOTER, BEARING
66197STOPPER, SUB-FRAME REAR END
66467BRACE, SUB FRAME
9010110032
main90101-10032
9017016001
main90170-16001
9111141090
main91111-41090
9411041000
main94110-41000
9451101000
main94511-01000
9461701000
main94617-01000
9461701600
main94617-01600
18 parts on this diagram · 2 diagrams in section
REAR BODY SUB FRAME for Toyota HEAVY DUTY TRUCK
This section contains 27 genuine Toyota parts for the REAR BODY SUB FRAME system of the Toyota HEAVY DUTY TRUCK. Key components include: FRAME, GUIDE, VESSEL, REAR BODY SIDE GATE LOCK & TAIL GATE LOCK, REAR BODY MOUNTING, SUB-FRAME ASSY.
