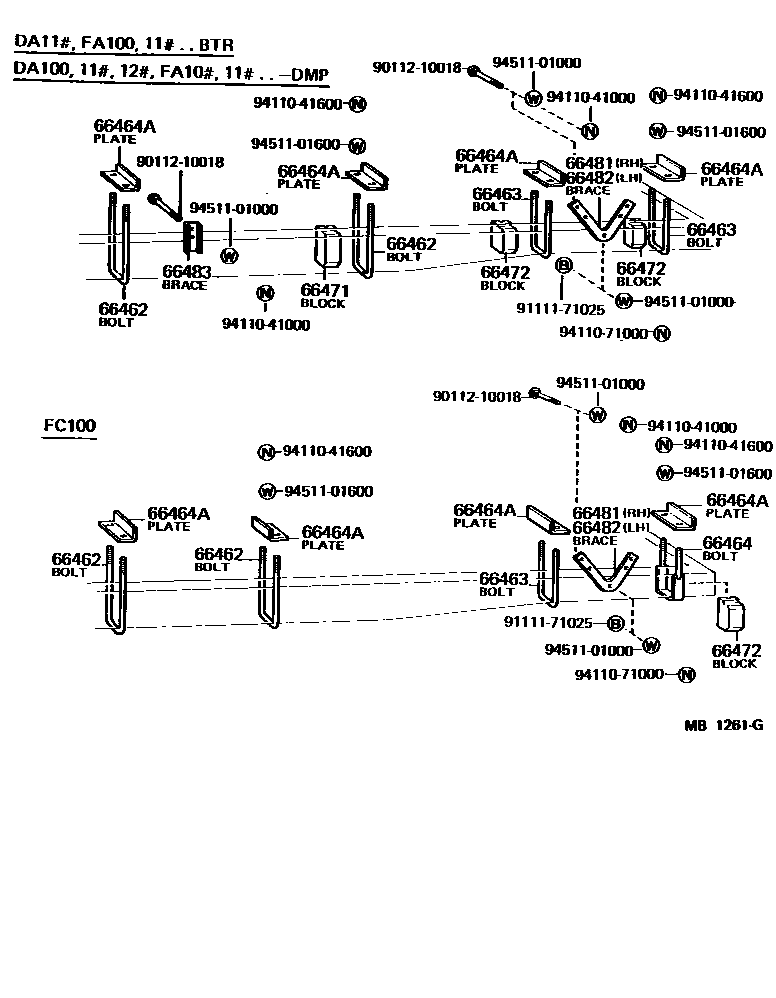

Toyota HEAVY DUTY TRUCK — REAR BODY MOUNTING

66462BOLT, U(FOR MAIN SILL)

main66461-95211×4i196903-196912

main90117-16151×4i196912-200112

66463BOLT, U, NO.3

main66462-95211×4i196903-196912

main90117-16150×4i196912-200112

66464BOLT, U, NO.4

main66460-95211×2i196903-197403

66464APLATE, U BOLT

main66451-95210×10i196903-198201

main66451-95211×10i198201-200112

66471BLOCK, U BOLT, NO.1

main66471-95212×2i196903-200112

66472BLOCK, U BOLT, NO.2

main66475-95211×4i196903-200112

66481BRACE, SILL TO FRAME, RH

main66481-95210i196903-200112

66482BRACE, SILL TO FRAME, LH

main66481-95210i196903-200112

66483BRACE, SILL TO FRAME, NO.2

main66483-95210×2i196903-200112

9011210018

main90112-10018

9111171025

main91111-71025

9411041000

main94110-41000

9411041600

main94110-41600

9411071000

main94110-71000

9451101000

main94511-01000

9451101600

main94511-01600

16 parts on this diagram · 2 diagrams in section

REAR BODY MOUNTING for Toyota HEAVY DUTY TRUCK

This section contains 30 genuine Toyota parts for the REAR BODY MOUNTING system of the Toyota HEAVY DUTY TRUCK. Key components include: BOLT, U(FOR MAIN SILL), BOLT, U, NO.3, BOLT, U, NO.4, PLATE, U BOLT, PLATE, U BOLT, NO.1.
