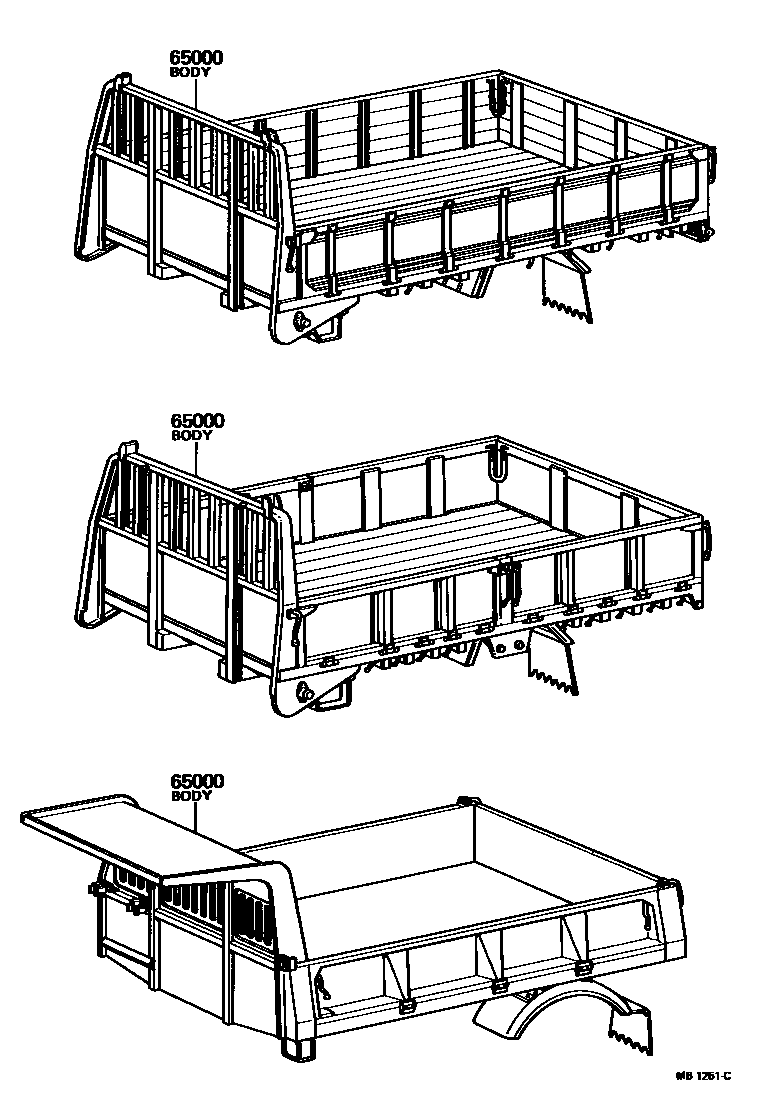

Toyota HEAVY DUTY TRUCK — REAR BODY ASSEMBLY

Parts diagram

65000BODY ASSY, REAR

main65000-93003i196903-197403

main65000-93005i196903-197704

main65000-93006i197404-197704

main65000-93008i197704-198301

main65000-93009i197704-198301

main65000-93010i197704-198207

main65000-93011i197704-198207

main65000-93016i198301-200112

main65000-95226i196903-197403

main65000-95227i196903-198201

main65000-95228i196903-198201

main65000-95230i196903-197403

main65000-95234i197910-198201

main65000-95235i198201-200112

main65000-95236i198201-200112

main65000-95237i198201-200112

1 parts on this diagram · 1 diagram in section

REAR BODY ASSEMBLY for Toyota HEAVY DUTY TRUCK

This section contains 1 genuine Toyota parts for the REAR BODY ASSEMBLY system of the Toyota HEAVY DUTY TRUCK. Key components include: BODY ASSY, REAR.
