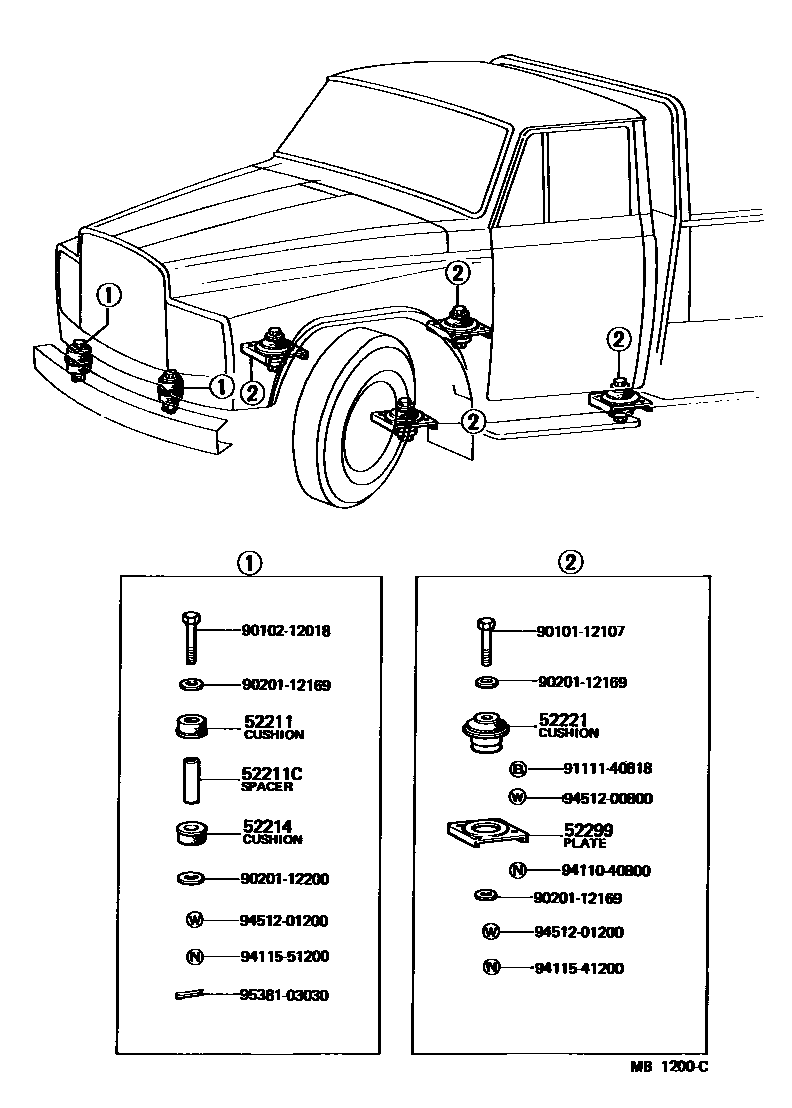

Toyota HEAVY DUTY TRUCK — CAB MOUNTING & BODY MOUNTING
52211CUSHION, BODY MOUNTING, NO.1 UPPER
52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)
52214CUSHION, BODY MOUNT, NO.1 LOWER
52221CUSHION, BODY MOUNT, NO.2 UPPER
52299PLATE, REAR END BODY MOUNTING SET
9010112107
main90101-12107
9010212018
main90102-12018
9020112169
main90201-12169
9020112200
main90201-12200
9111140818
main91111-40818
9411040800
main94110-40800
9411541200
main94115-41200
9411551200
main94115-51200
9451200800
main94512-00800
9451201200
main94512-01200
9538103030
main95381-03030
16 parts on this diagram · 1 diagram in section
CAB MOUNTING & BODY MOUNTING for Toyota HEAVY DUTY TRUCK
This section contains 16 genuine Toyota parts for the CAB MOUNTING & BODY MOUNTING system of the Toyota HEAVY DUTY TRUCK. Key components include: CUSHION, BODY MOUNTING, NO.1 UPPER, SPACER(FOR BODY MOUNTING NO.1 CUSHION), CUSHION, BODY MOUNT, NO.1 LOWER, CUSHION, BODY MOUNT, NO.2 UPPER, PLATE, REAR END BODY MOUNTING SET.
