Toyota HEAVY DUTY TRUCK — AIR BRAKE SYSTEM

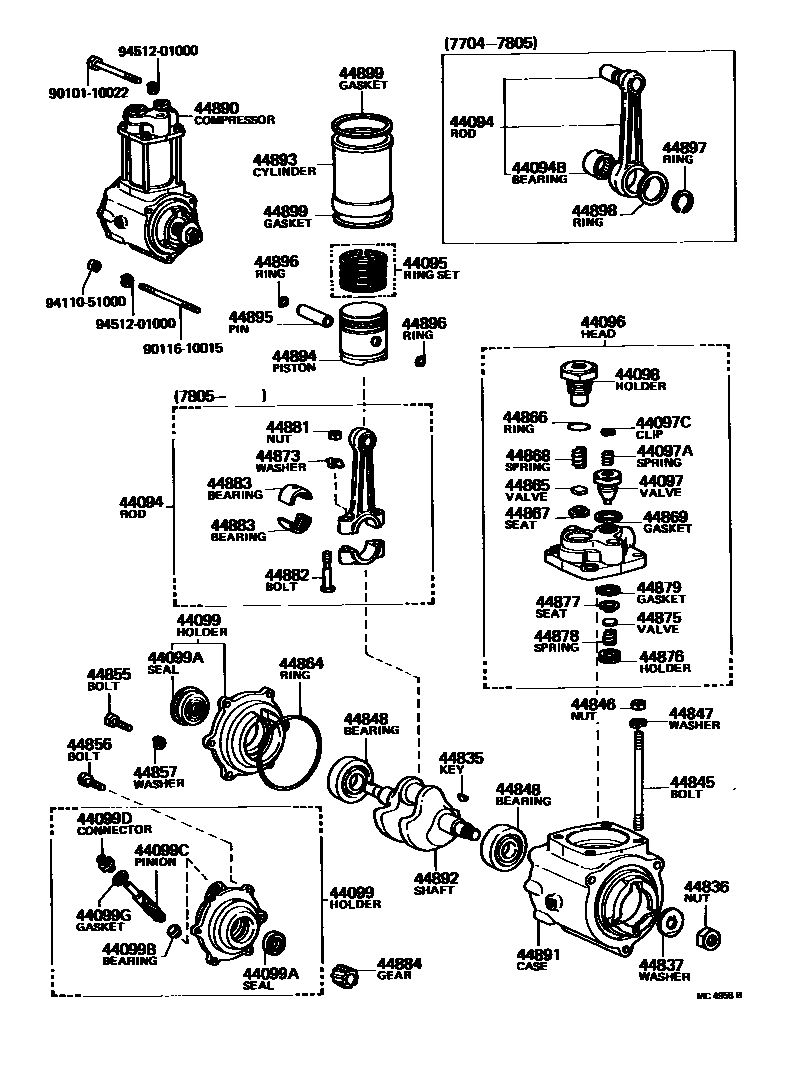

Parts diagram
44094ROD SUB-ASSY, AIR COMPRESSOR CONNECTING
main44094-55020i197704-197805
main44094-55021i197805-200112
44094BBEARING, NEEDLE
main44849-55020i197704-197805
44095RING SET, PISTON & OIL
main44095-55020i197704-200112
44096HEAD SUB-ASSY, AIR COMPRESSOR CYLINDER
main44096-55020i197704-200112
44097VALVE SUB-ASSY, UNLOADER
main44097-55020i197704-200112
44097ASPRING, UNLOADER VALVE
main44858-55020i197704-200112
44097CCLIP
main44859-55020i197704-200112
44098HOLDER SET, DELIVEY VALVE
main44098-55020i197704-200112
44099HOLDER SUB-ASSY, BEARING
main44099-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
main44099-55020i197704-198002
W/O TACHO & EXHAUST BRAKE
44099ASEAL, OIL
main44888-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
main44888-55020i197704-198002
W/O TACHO & EXHAUST BRAKE
44099BBEARING, THRUST
main44887-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
44099CPINION, TACHOMETER
main44885-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
44099DCONNECTOR, TACHOMETER
main44886-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
44099GGASKET
main44889-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
44835KEY
main44835-55020i197704-200112
44836NUT, LOCK
main44836-55020i197704-200112
44837WASHER, LOCK
main44837-55020i197704-200112
44845BOLT, STUD
main44845-55020×4i197704-200112
44846NUT
main44846-55020×4i197704-200112
44847WASHER, SPRING
main44847-55020×4i197704-200112
44848BEARING, BALL
main44838-55020i197704-200112
RR
main44848-55020i197704-200112
FR; W/TACHO OR EXHAUST BRAKE
44855BOLT
main44855-55020×6i197704-200112
44856BOLT
main44856-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
44857WASHER, SPRING
main44857-55020×6i197704-200112
44864RING, O
main44864-55020i197704-200112
44865VALVE, DELIVEY
main44865-55020i197704-200112
44866RING, O
main44866-55020i197704-200112
44867SEAT, DELIVEY VALVE
main44867-55020i197704-200112
44868SPRING, DELIVEY VALVE
main44868-55020i197704-200112
44869GASKET
main44869-55020i197704-200112
44873WASHER
main44873-55021×2i197805-200112
44875VALVE, SUCTION
main44875-55020i197704-200112
44876HOLDER, SUCTION VALVE
main44876-55020i197704-200112
44877SEAT, SUCTION VALVE
main44877-55020i197704-200112
44878SPRING, SUCTION VALVE
main44878-55020i197704-200112
44879GASKET, SUCTION VALVE SEAT
main44879-55020i197704-200112
44881NUT
main44881-55021×2i197805-200112
44882BOLT, CONNECTING
main44882-55021×2i197805-200112
44883BEARING, CONNECTING
main44883-55021×2i197805-200112
44884GEAR, TACHOMETER
main44884-55010i197704-200112
W/TACHO OR EXHAUST BRAKE
44890COMPRESSOR ASSY, AIR
main44890-55010i197704-197805
W/TACHO OR EXHAUST BRAKE
main44890-55011i197805-200112
W/TACHO OR EXHAUST BRAKE
main44890-55020i197704-197805
W/O TACHO & EXHAUST BRAKE
main44890-55021i197805-198002
W/O TACHO & EXHAUST BRAKE
44891CASE, AIR COMPRESSOR CRANK
main44891-55020i197704-200112
44892SHAFT, AIR COMPRESSOR CRANK
main44892-55010i197704-197805
W/TACHO OR EXHAUST BRAKE
main44892-55011i197805-200112
W/TACHO OR EXHAUST BRAKE
main44892-55020i197704-197805
W/O TACHO & EXHAUST BRAKE
main44892-55021i197805-198002
W/O TACHO & EXHAUST BRAKE
44893CYLINDER, AIR COMPRESSOR
main44893-55020i197704-200112
44894PISTON, AIR COMPRESSOR
main44894-55020i197704-200112
44895PIN, AIR COMPRESSOR PISTON
main44895-55020i197704-200112
44896RING, SNAP(FOR PISTON PIN)
main44896-55020i197704-200112
44897RING, SNAP(FOR CONNECTING ROD)
main44897-55020i197704-197805
44898RING
main44898-55020i197704-197805
44899GASKET, AIR COMPRESSOR CYLINDER
main44899-55020×2i197704-200112
9010110022
main90101-10022
9011610015
main90116-10015
9411051000
main94110-51000
9451201000
main94512-01000

54 parts on this diagram · 1 diagram in section

AIR BRAKE SYSTEM for Toyota HEAVY DUTY TRUCK

This section contains 54 genuine Toyota parts for the AIR BRAKE SYSTEM system of the Toyota HEAVY DUTY TRUCK. Key components include: ROD SUB-ASSY, AIR COMPRESSOR CONNECTING, BEARING, NEEDLE, RING SET, PISTON & OIL, HEAD SUB-ASSY, AIR COMPRESSOR CYLINDER, VALVE SUB-ASSY, UNLOADER.
