Toyota HARRIER — WIRING & CLAMP

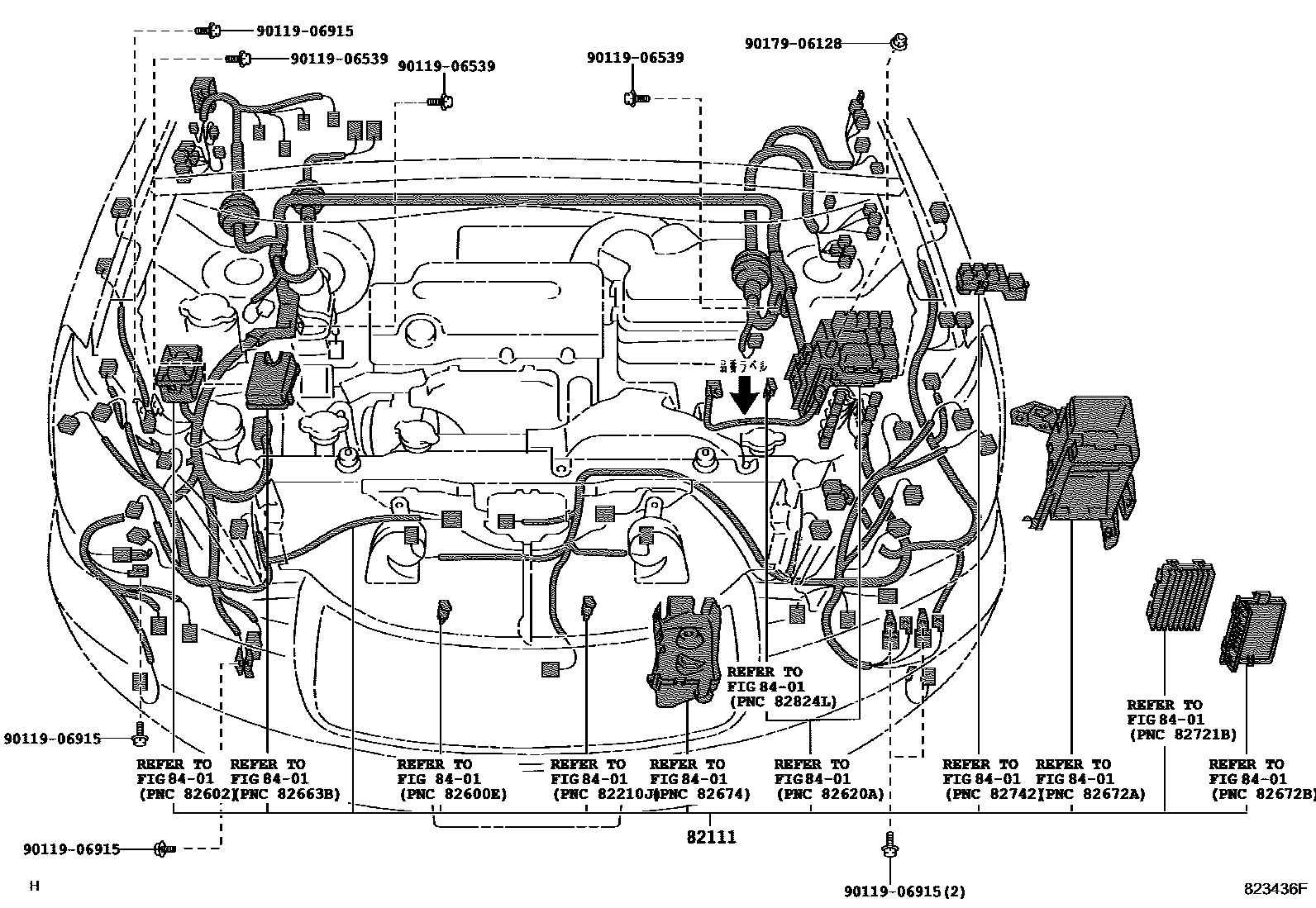

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-48590supersedes 82111-48610i200302-200408

main82111-48610i200302-200311

main82111-48630supersedes 82111-48670i200302-200408

main82111-48631supersedes 82111-48E71i200505-200601

main82111-48640supersedes 82111-48E71i200302-200505

main82111-48641supersedes 82111-48E71i200505-200601

main82111-48650supersedes 82111-48670i200302-200408

main82111-48651supersedes 82111-48E71i200505-200601

main82111-48660supersedes 82111-48670i200302-200408

main82111-48661supersedes 82111-48E71i200505-200601

main82111-48670i200302-200408

main82111-48671supersedes 82111-48E71i200505-200601

main82111-48690supersedes 82111-48850i200302-200408

main82111-48700supersedes 82111-48850i200302-200408

main82111-48710supersedes 82111-48850i200302-200408

main82111-48711supersedes 82111-48852i200505-200601

main82111-48840supersedes 82111-48850i200302-200408

main82111-48850i200302-200408

main82111-48851i200408-200505

main82111-48852i200505-200601

main82111-48E30i200408-200601

main82111-48E40supersedes 82111-48E70i200408-200505

main82111-48E41supersedes 82111-48E71i200505-200601

main82111-48E50supersedes 82111-48E70i200408-200505

main82111-48E51supersedes 82111-48E71i200505-200601

main82111-48E60supersedes 82111-48E70i200408-200505

main82111-48E61supersedes 82111-48E71i200505-200601

main82111-48E70i200408-200505

main82111-48E71i200505-200601

main82111-48G82supersedes 82111-48T81i200902-201007

main82111-48G83supersedes 82111-48T81i201008-201207

main82111-48J10supersedes 82111-48K00i200601-200812

main82111-48K00i200601-200812

main82111-48K10supersedes 82111-48T81i200601-200609

main82111-48K11supersedes 82111-48T81i200609-200812

main82111-48K12supersedes 82111-48T81i200812-200902

main82111-48K13supersedes 82111-48T81i201008-201207

main82111-48K20supersedes 82111-48K30i200601-200812

main82111-48K30i200601-200812

main82111-48L00supersedes 82111-48T81i200902-200908

main82111-48L01supersedes 82111-48T81i201008-201207

main82111-48T70supersedes 82111-48T81i200908-201007

main82111-48T71supersedes 82111-48T81i201008-201207

main82111-48T80supersedes 82111-48T81i200908-201007

main82111-48T81i201008-201207

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906539

main90119-06539

9011906915

main90119-06915

9017906128

main90179-06128

5 parts on this diagram · 14 diagrams in section

WIRING & CLAMP for Toyota HARRIER

This section contains 141 genuine Toyota parts for the WIRING & CLAMP system of the Toyota HARRIER. Key components include: CABLE, BOND, NO.1, CABLE, BOND, NO.2, CABLE, BOND, NO.3, CABLE, BOND, NO.4, WIRE, ENGINE ROOM MAIN.
