Toyota HARRIER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202006-202210

main85381-30230×2i202210

main85381-30240×2i202210-202309

8504

85301INLET SUB-ASSY, WASHER

main85301-48070i202210-202309

main85301-48100i202210

85301BCLIP, WASHER

main90467-07215i202006-202210

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i202006-202210

85330JAR ASSY, WINDSHIELD WASHER

main85315-42520i202210

main85315-42460supersedes 85315-42470i202210

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202006-202210

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202006-202210

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202006-202210

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202006-202210

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i202006-202210

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202006-202210

85369CLAMP

main85371-12040×2i202006-202210

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080supersedes 90099-33080i202210

85371ZCLAMP, WASHER HOSE

main90469-07011×2i202006-202210

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i202006-202210

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202006-202210

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202006-202210

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-16790×2i202006-202210

85387ACLAMP, WASHER, NO.2

main82711-3A640i202006-202210

85387BCLAMP, WASHER, NO.3

main85371-48050i202006-202210

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-35520i202006-202210

9011906767

main90119-06767

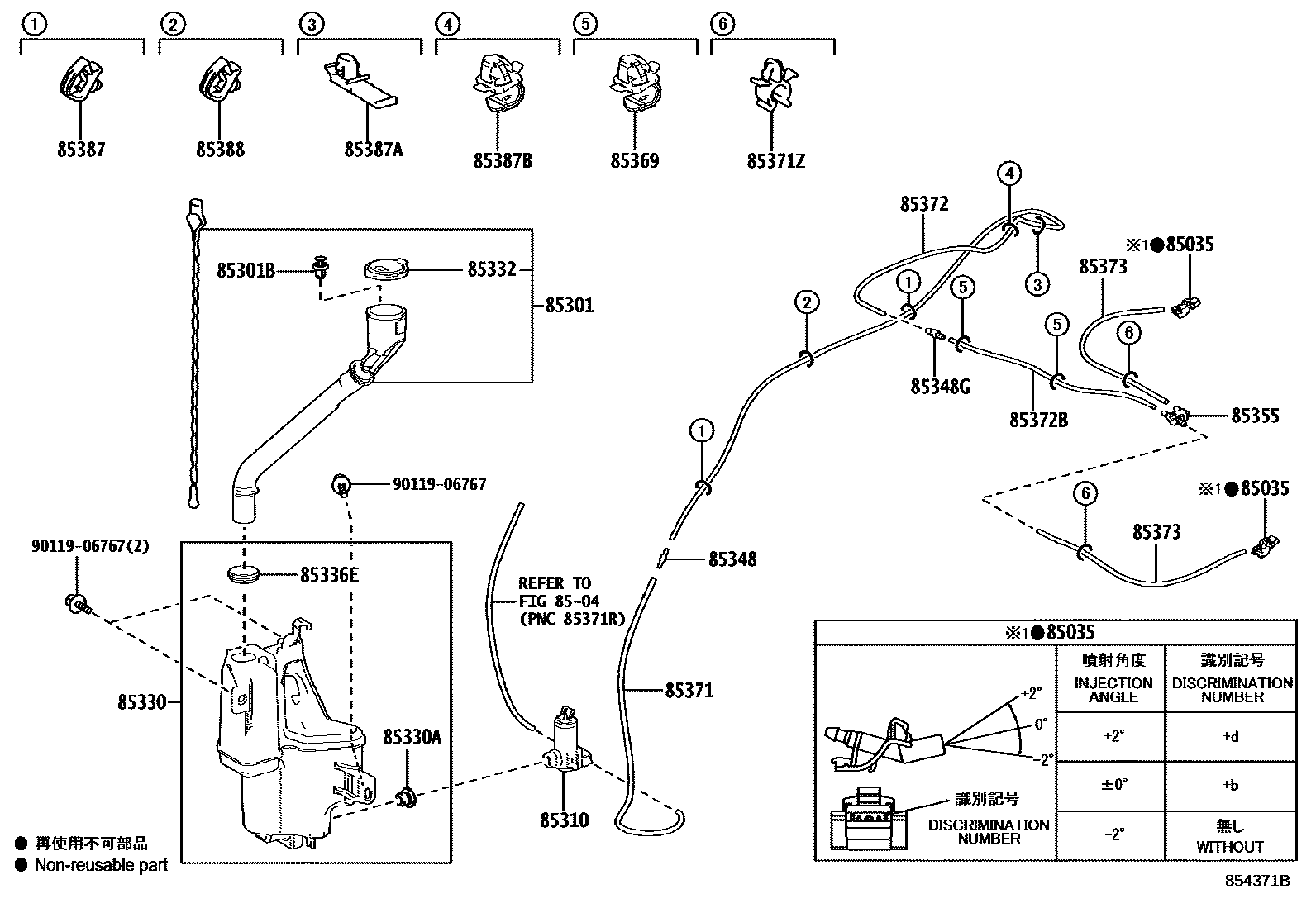

23 parts on this diagram · 1 diagram in section
