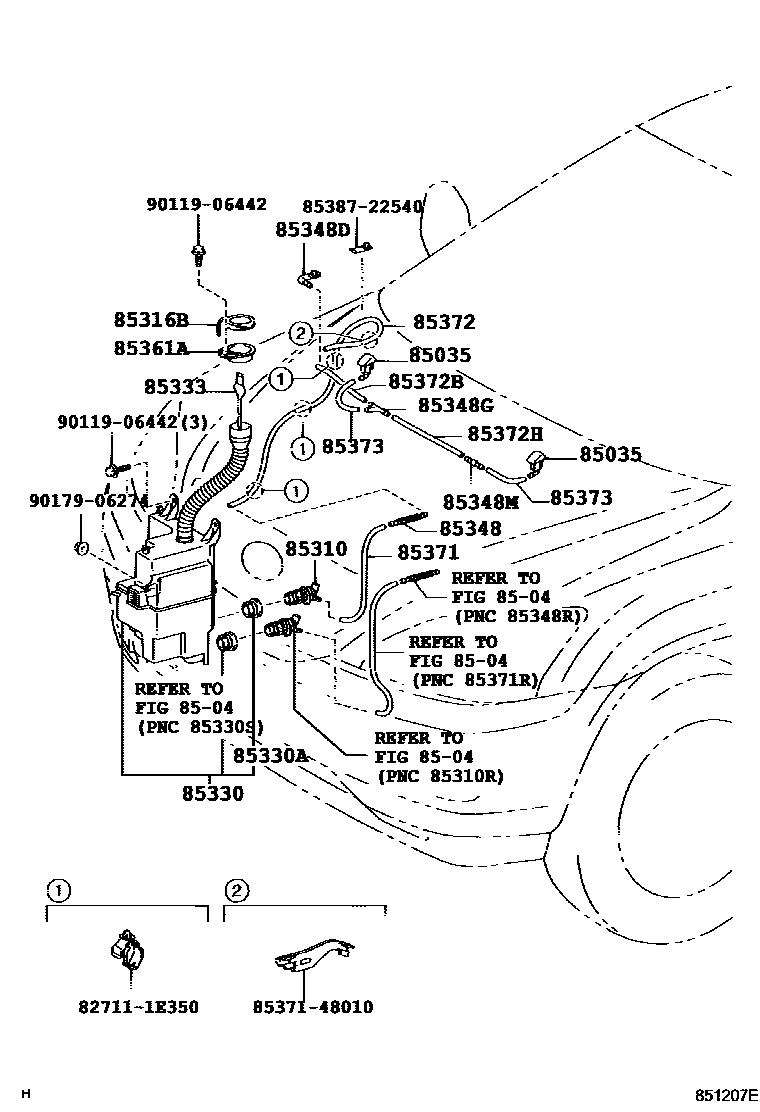

Toyota HARRIER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0E010×2iACU3#,MCU3#200306-200311

main85381-0E020×2iACU3#,MCU3#200311-200601

main85381-48030×2iACU3#,MCU3#200302-200306

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iGSU3#200601-200812

85316BCAP, WASHER, INLET

main85316-48050iACU3#,MCU3#200302-200601

85330JAR ASSY, WINDSHIELD WASHER

main85315-48050iACU3#,MCU3#200302-200601

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iACU3#,MCU3#200302-200601

85333FILTER, WINDSHIELD WASHER JAR

main85312-48010iACU3#,MCU3#200302-200601

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150iACU3#,MCU3#200302-200601

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iACU3#,MCU3#200302-200601

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iACU3#,MCU3#200302-200601

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iACU3#,MCU3#200302-200601

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-48060iACU3#,MCU3#200302-200601

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iACU3#,MCU3#200302-200601

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iACU3#,MCU3#200302-200601

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iACU3#,MCU3#200302-200601

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iACU3#,MCU3#200302-200601

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33037×2iACU3#,MCU3#200306-200601

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8537148010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-48010

8538722540CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22540

9011906442

main90119-06442

9017906274

main90179-06274

22 parts on this diagram · 1 diagram in section
