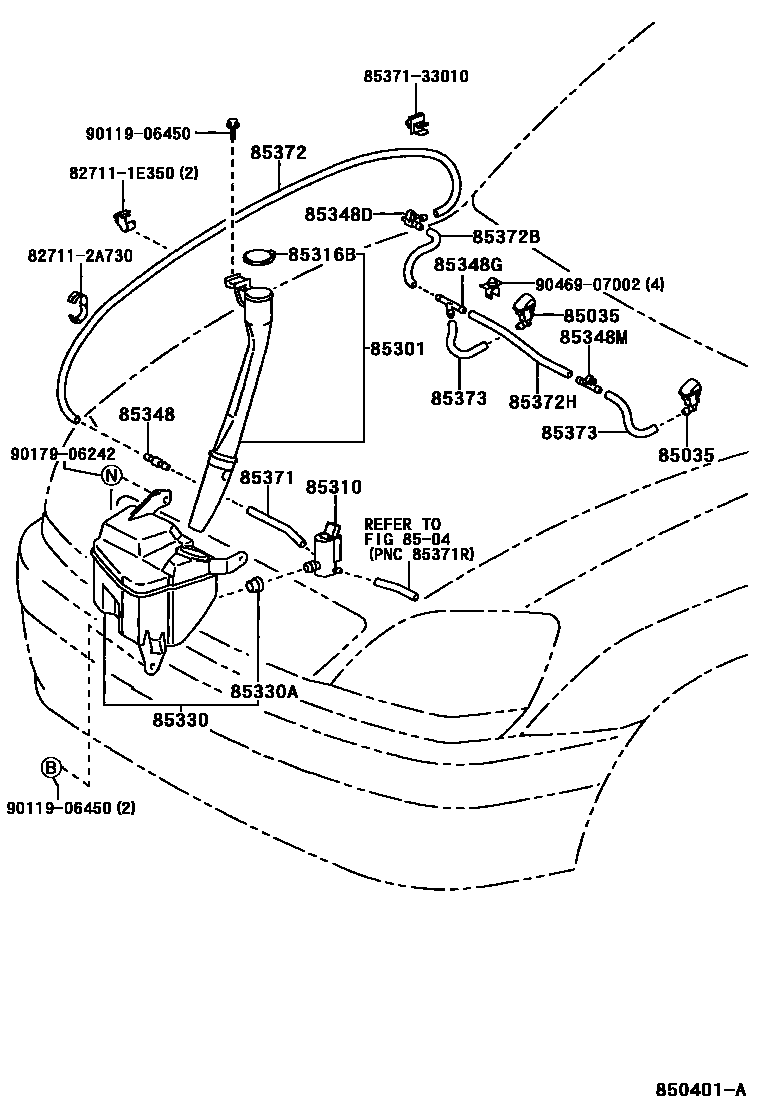

Toyota HARRIER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2iACU1#,MCU1#,SXU1#199712

8504

85301INLET SUB-ASSY, WASHER

main85301-48010iACU1#,MCU1#,SXU1#199712

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-14480iMCU1#,SXU1#199712-200005

main85330-20460iACU1#,MCU1#,SXU1#200005

sub85330-20461

85316BCAP, WASHER, INLET

main85386-48010iACU1#,MCU1#,SXU1#199712

85330JAR ASSY, WINDSHIELD WASHER

main85315-48010iACU1#,MCU1#,SXU1#199712

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iACU1#,MCU1#,SXU1#199712

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iACU1#,MCU1#,SXU1#199712

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-33070iACU1#,MCU1#,SXU1#199712

sub85376-10250

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iACU1#,MCU1#,SXU1#199712

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-17050iACU1#,MCU1#,SXU1#199712

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iACU1#,MCU1#,SXU1#199712

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iACU1#,MCU1#,SXU1#199712

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iACU1#,MCU1#,SXU1#199712

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iACU1#,MCU1#,SXU1#199712

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-59231×2iACU1#,MCU1#,SXU1#199712

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906450

main90119-06450

9017906242

main90179-06242

9046907002

main90469-07002

22 parts on this diagram · 1 diagram in section
