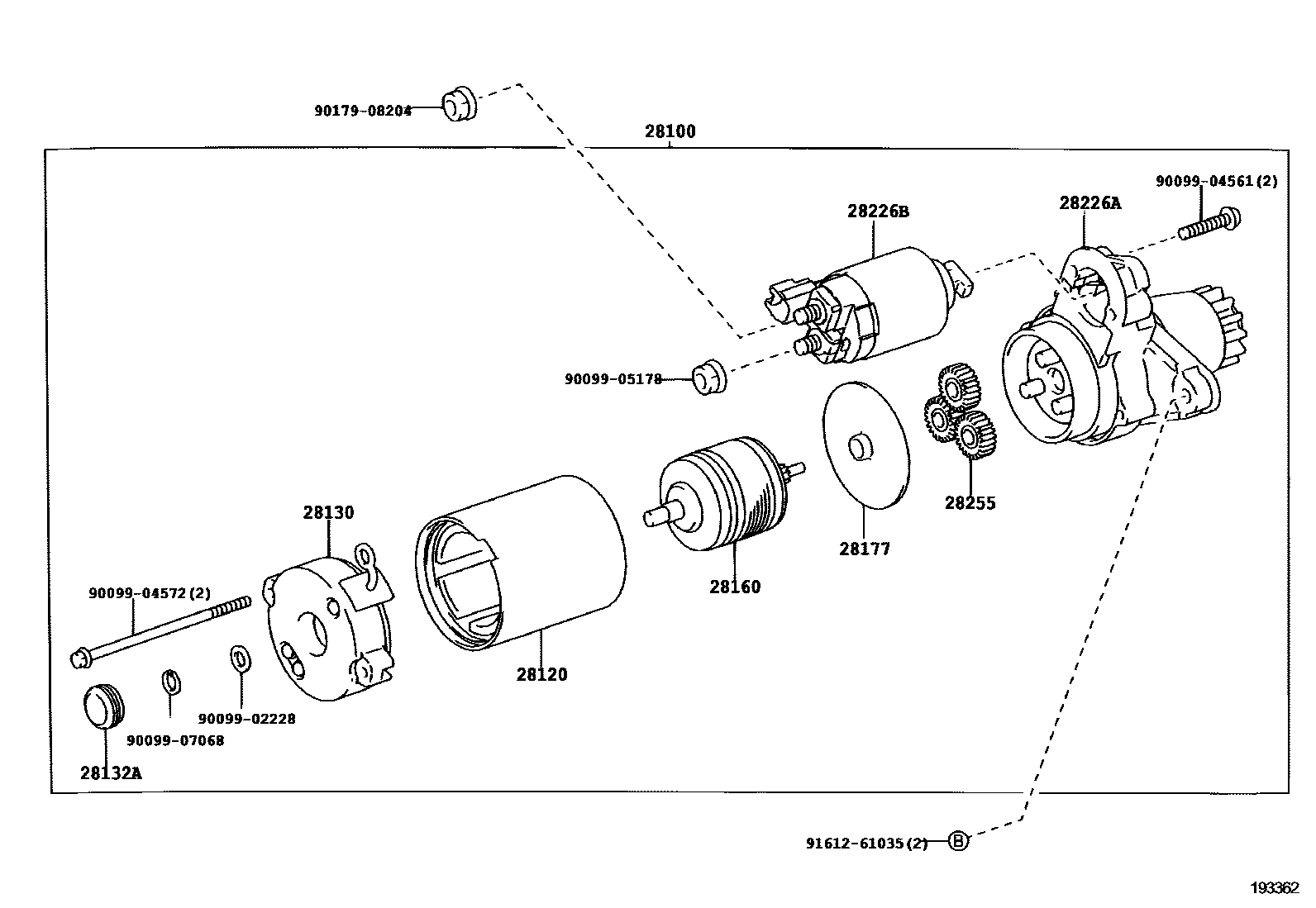

Toyota HARRIER — STARTER

28100STARTER ASSY

main28100-20020i2GRFE..GSU3#200601-200812

sub28100-20021

main28100-28041i2AZFE..ACU3#200302-200601

main28100-28042supersedes 28100-28053i2AZFE..ACU3#200912

28120YOKE ASSY, STARTER

main28120-28040i2AZFE..ACU3#200302-200601

main28120-28060supersedes 28120-28080i2AZFE..ACU3#200808

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2GRFE..GSU3#200601-200812

main28130-28040i2AZFE..ACU3#200601

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2AZFE,2GRFE..ACU3#,GSU3#200601

28160ARMATURE ASSY, STARTER

main28160-28040i2AZFE,1MZFE..ACU3#,MCU3#200302-200601

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2AZFE,1MZFE..ACU3#,MCU3#200302-200601

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i2AZFE,2GRFE..ACU3#,GSU3#200601

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2AZFE,1MZFE..ACU3#,MCU3#200302-200601

28255GEAR, PLANET

main28255-20020×3i2GRFE..GSU3#200601-200812

main28255-28040×3i2AZFE..ACU3#200601

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 1 diagram in section
