Toyota HARRIER — STARTER

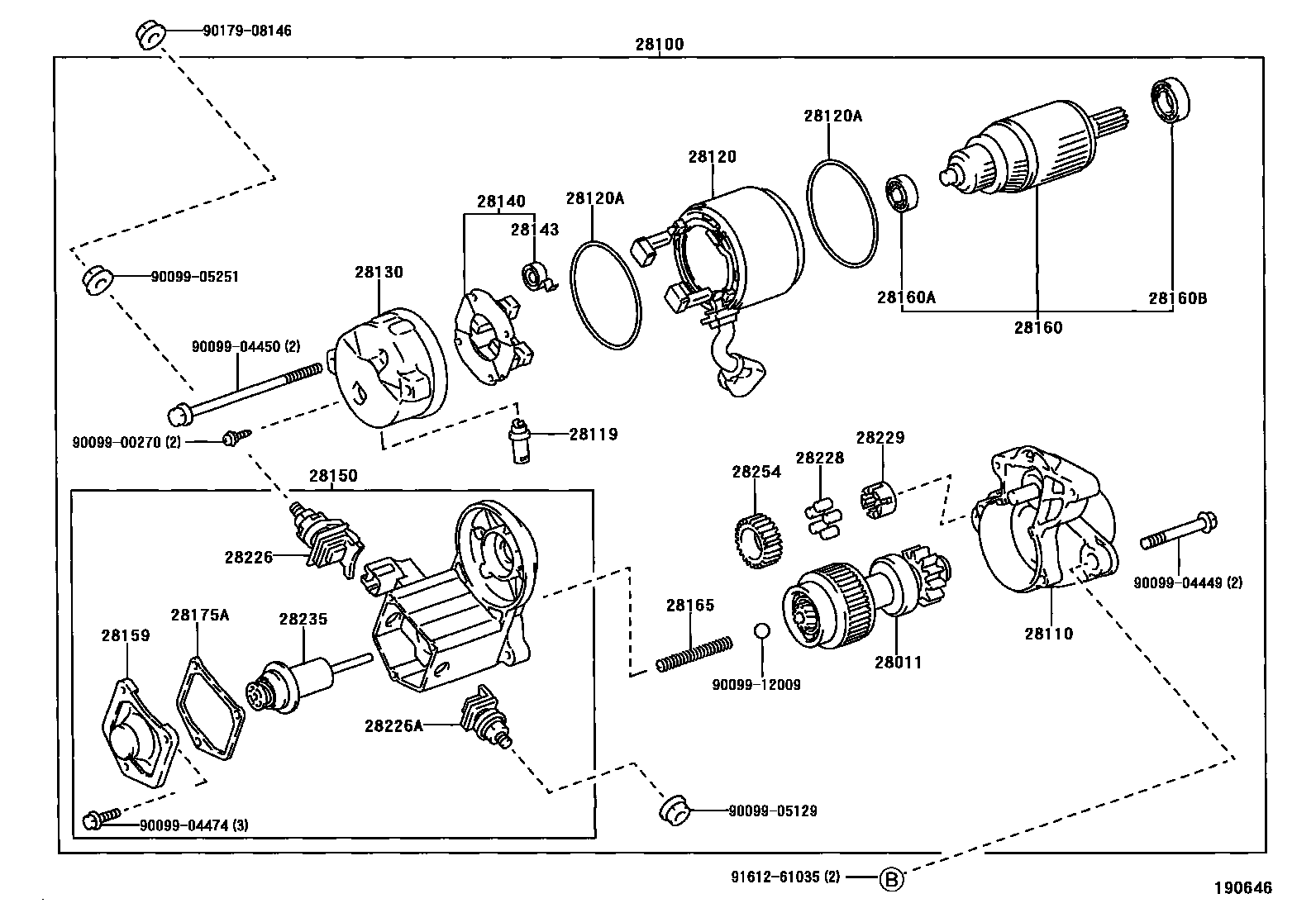

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-74060i200011-200210

main28011-74070i200011

28100STARTER ASSY

main28100-03100i199712

main28100-28030i200011-200210

main28100-74260i199712

main28100-74270i199712-200011

28110HOUSING ASSY, STARTER DRIVE

main28110-03100i199712

main28110-74270i199712

main28110-74300i200011-200210

28119COVER, STARTER END FRAME

main28199-74110i199712

28120YOKE ASSY, STARTER

main28120-01030i199712

main28120-16180i199712-200011

main28120-26071i200011-200210

main28120-66040i199712

28120ARING, O(FOR STARTER YOKE)

main90068-14001×2i199712

main90099-14064×2i199712

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-03100i199712

main28130-28030i200011-200210

main28130-74260i199712

main28130-74270i199712-200011

28140HOLDER ASSY, STARTER BRUSH

main28140-03010i199712

main28140-74010i200011-200210

main28140-74070i199712

main28140-74120i199712-200011

28143SPRING, STARTER BRUSH

main28143-76060×4i199712-200011

main90099-17112×4i199712

28150SWITCH ASSY, MAGNET STARTER

main28150-03100i199712

main28150-28020i200011-200210

main28150-74270i199712

28159COVER, STARTER PROTECTOR

main28159-07010i199712-200011

main28159-55050i199712-200011

28160ARMATURE ASSY, STARTER

main28160-01020i199712

main28160-26071i200011-200210

main28160-74070i199712

main28160-76060i199712-200011

28160ABEARING, STARTER ARMATURE

main28253-45020i200011-200210

main90068-10003i199712-200011

main90099-10196i199712-200011

28160BBEARING, STARTER ARMATURE, NO.2

main90068-10004i199712

main90099-10113i200011-200210

main90099-10197i199712

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-74010i200011-200210

main28165-74070i199712

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i200011-200210

main28175-55050i199712

28226STARTER KIT, BATTERY TERMINAL

main28226-55050i199712

main28226-74300i200011-200210

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i200011-200210

main28226-74070i199712

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i199712

28229RETAINER, STARTER IDLE GEAR

main28229-01020i199712

main28229-26040i200011-200210

main28229-74070i199712

28235PLUNGER, MAGNET SWITCH

main28235-03080i199712

main28235-74060i200011-200210

main28235-74130i199712

28254PINION, STARTER IDLE GEAR

main28254-03010i199712

main28254-54070i200011-200210

main28254-74070i200011

9009900270

main90099-00270

9009904449

main90099-04449

9009904450

main90099-04450

9009904474

main90099-04474

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908146

main90179-08146

9161261035

main91612-61035

31 parts on this diagram · 3 diagrams in section
