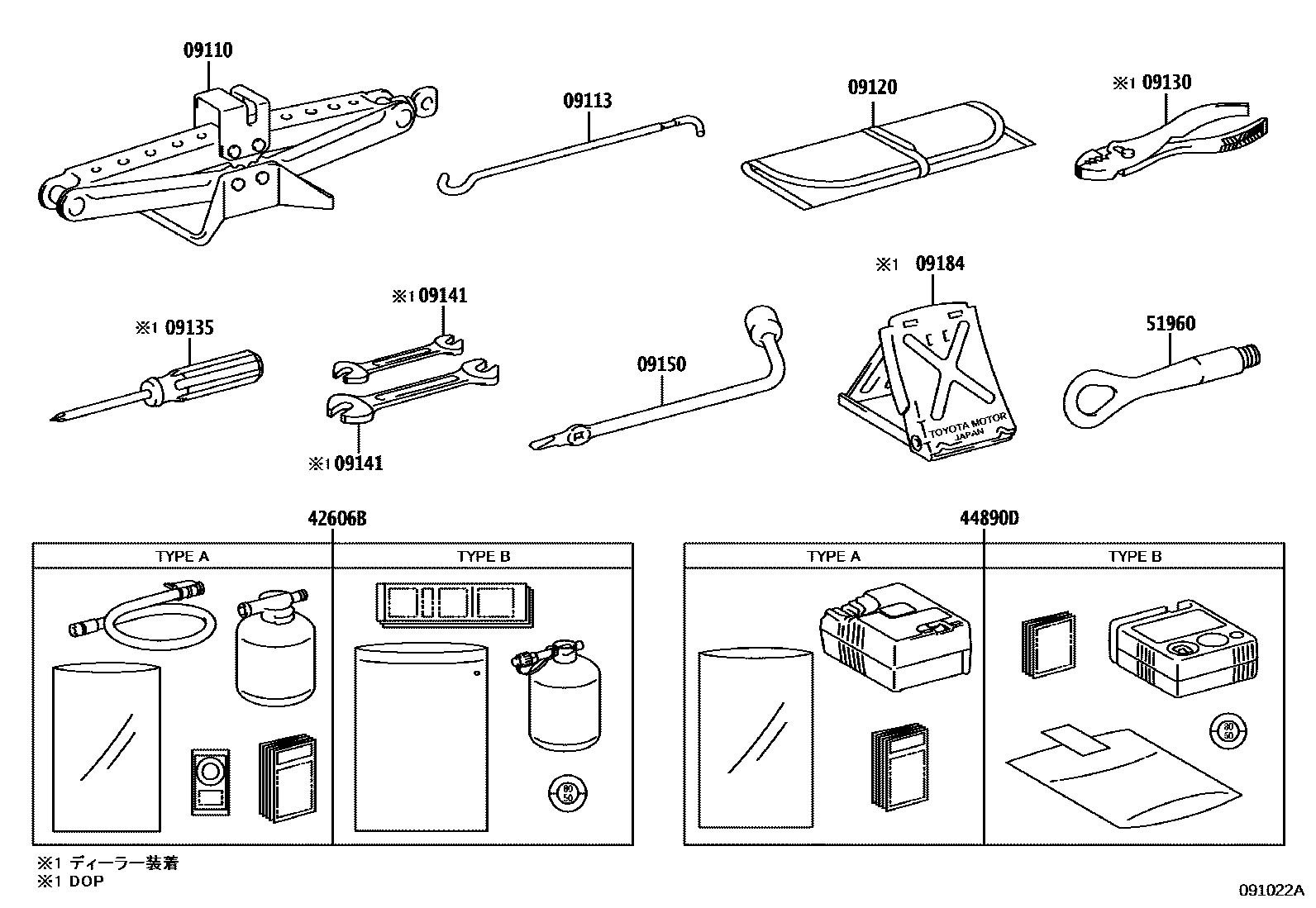

Toyota HARRIER — STANDARD TOOL

09110JACK ASSY

main09111-0W150iAXUH8#,MXUA8#202006-202109

main09111-0W151iAXUH8#,MXUA8#202110-202210

09113HANDLE, JACK

main09113-42030iAXUH8#,MXUA8#202006-202210

09120BAG, TOOL

main09120-16030iAXUH8#,MXUA8#202006-202210

09130PLIERS

main99913-11500iAXUH8#,MXUA8#202006-202210

09135DRIVER, SCREW

main99915-10700iAXUH8#,MXUA8#202006-202210

09141SPANNER

main99914-10810iAXUH8#,MXUA8#202006-202210

main99914-11214iAXUH8#,MXUA85..S202210-202309

09150WRENCH, HUB NUT BOX

main09150-42010iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

09184STOPPER, WHEEL

main09184-00010iAXUH8#,MXUA8#202006-202210

42606BREPAIR KIT, TUBELESS TIRE

main42606-30011iAXUH8#,AXUP85,MXUA8#202210-202211

main42606-42080iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202211

main42606-F4041supersedes 42606-F4041iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202210

44890DCOMPRESSOR ASSY, AIR

main42680-F4013iAXUH8#,MXUA85..S202210-202309

main44890-12011iAXUH8#,MXUA8#202109-202210

main44890-30030iAXUH8#,MXUA8#202006-202103

sub44890-30031

main44890-42050iMXUA80;AXUH8#,AXUP85,MXUA85..G,Z202211

main44890-47080iAXUH8#,MXUA8#202109-202209

51960HOOK ASSY, FRONT

main51961-48100iAXUH8#,MXUA8#202006-202210

11 parts on this diagram · 1 diagram in section
