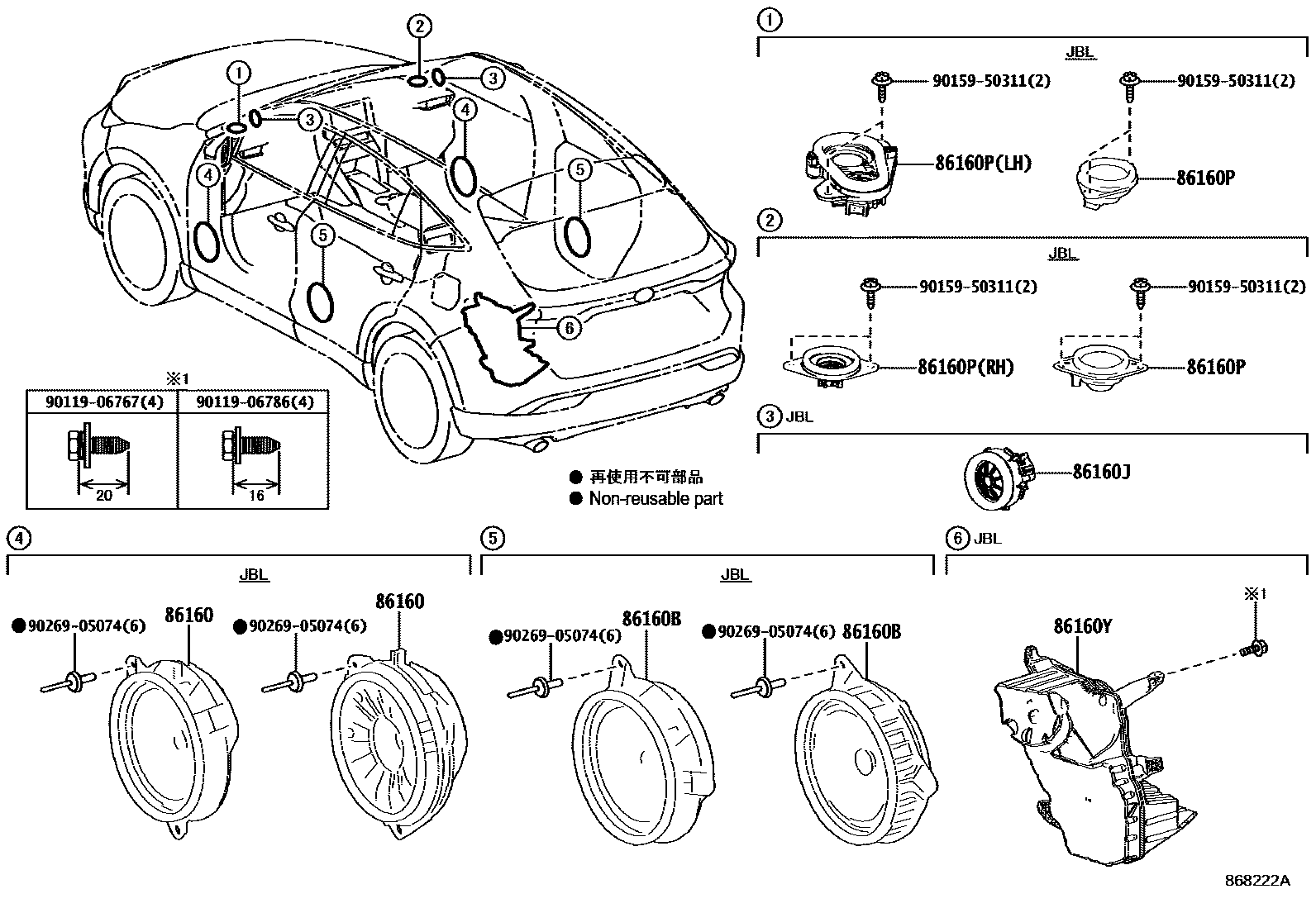

Toyota HARRIER — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-1A210×2iAXUH8#,MXUA85..S202210-202309

main86160-42160×2iAXUH8#,MXUA8#..Z202006-202210

86160BSPEAKER ASSY, REAR

main86160-1A210×2iAXUH8#,MXUA8#..G,S202006-202210

main86160-42170×2iAXUH8#,AXUP85,MXUA8#..Z202210

86160JSPEAKER ASSY, FRONT NO.3

main86150-42080×2iAXUH8#,MXUA8#..Z202006-202210

86160PSPEAKER ASSY, FRONT NO.2

main86150-42010iAXUH8#,MXUA8#..G,S202006-202210

main86150-42050iAXUH8#,MXUA8#..G,S202006-202210

main86160-33A30×2iAXUH8#,MXUA8#..Z202006-202210

86160YSPEAKER ASSY, REAR NO.2

main86150-48070iAXUH8#,MXUA8#..Z202006-202210

main86150-48220iAXUP85..Z202210

9011906767

main90119-06767

9011906786

main90119-06786

9015950311

main90159-50311

9026905074

main90269-05074

9 parts on this diagram · 1 diagram in section
