Toyota HARRIER — SIDE MOULDING
53851KPAD, FRONT WHEEL OPENING EXTENSION, RH
53852DPAD, FRONT WHEEL OPENING EXTENSION, LH
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
67895EWEATHERSTRIP, REAR DOOR, NO.3 RH
67896AWEATHERSTRIP, REAR DOOR, NO.3 LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75073MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH
BLACK,089 ,1G3 ,219 ,3T3
75074MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH
BLACK,089 ,1G3 ,219 ,3T3
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
BLACK,089 ,1G3 ,219 ,3T3
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
BLACK,089 ,1G3 ,219 ,3T3
75392FRETAINER, OUTSIDE MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75561FCLIP, ROOF DRIP SIDE FINISH MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75792CLIP, DOOR WINDOW FRAME MOULDING
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75797PAD, REAR DOOR OUTSIDE MOULDING, UPPER
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
BLACK,089 ,1G3 ,219 ,3T3
75851DCLIP(FOR ROCKER PANEL MOULDING SET)
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
BLACK,089 ,1G3 ,219 ,3T3
75861CPAD, ROCKER PANEL MOULDING
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75895ATAPE, MOULDING, NO.1
76901AMUDGUARD SUB-ASSY, SIDE, RH
BLACK,089 ,1G3 ,219 ,3T3
76902AMUDGUARD SUB-ASSY, SIDE, LH
BLACK,089 ,1G3 ,219 ,3T3
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
6786748030CLIP, DOOR WEATHERSTRIP
main67867-48030
9015960602
main90159-60602
9016240034
main90162-40034
9017905102
main90179-05102
9018306019
main90183-06019
9018904059
main90189-04059
9018906006
main90189-06006
9018906065
main90189-06065
9026904051
main90269-04051
9046705170
main90467-05170
9046708234
main90467-08234
9046722017
main90467-22017

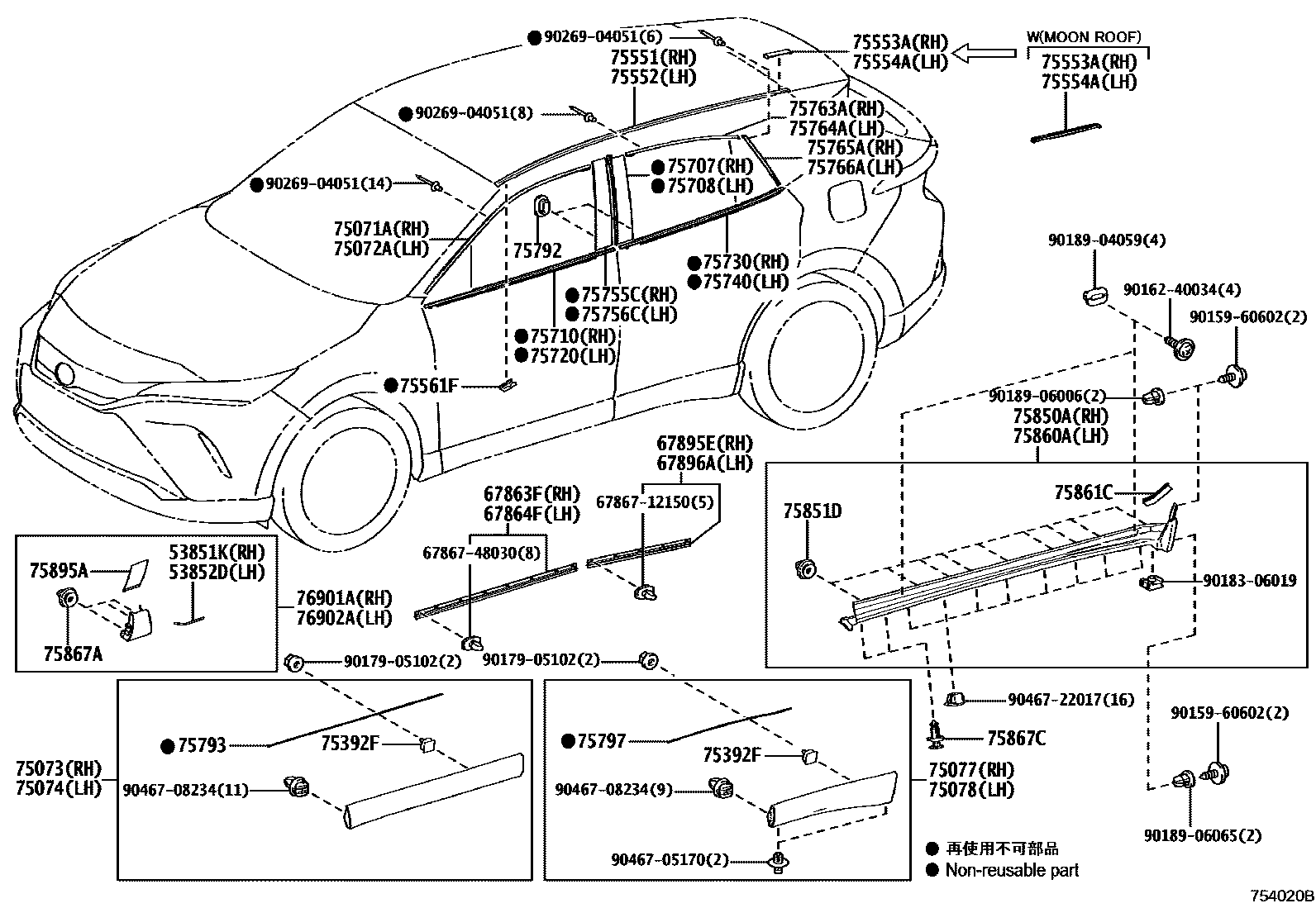

55 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota HARRIER
This section contains 55 genuine Toyota parts for the SIDE MOULDING system of the Toyota HARRIER. Key components include: PAD, FRONT WHEEL OPENING EXTENSION, RH, PAD, FRONT WHEEL OPENING EXTENSION, LH, WEATHERSTRIP, FRONT DOOR, NO.2 RH, WEATHERSTRIP, FRONT DOOR, NO.2 LH, WEATHERSTRIP, REAR DOOR, NO.3 RH.
